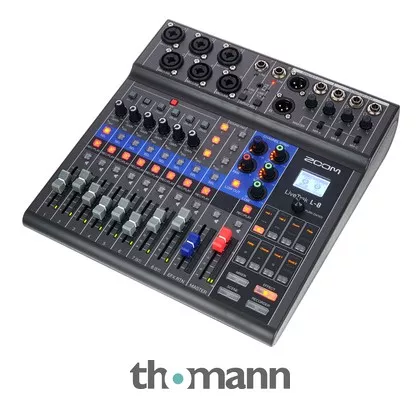

Compact Podcast Mixer, Audio Interface and Recorder
- 8-Channel mixer
- Channels 1-2 for microphone, line and instrument signals – XLR / TRS combo socket
- Channels 3-6 for microphone and line signals – XLR / TRS combo socket
- Channels 7-8 for line signals – 6.3 mm jack
- USB stereo playback and telephone playback – 3.5 mm TRRS
- Mix-minus function for preventing audio feedback from dial-in guests
- Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
- 48 V Phantom power switchable
- Effects section with 8 different programs
- 6 Assignable sound pads for jingles, intros, outros and sound effects
- 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
- Balanced stereo output (XLR)
- 7 Scene memory slots for mixes
- Battery operation possible (4x AA Mignon, not included in the delivery)
- Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
- Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
- Integrated USB audio interface with 12 inputs and 4 outputs
- USB 2.0
- System requirements: Windows 7 or later, macOS 10.12 or later
- Dimensions (W x D x H): 282 x 268 x 74 mm
- Weight: 1.56 kg
- Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
- Suitable case: Art.502745 (not included in the delivery)
- Suitable case: Art.498148 (not included in the delivery)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2019
- Item number477037
- Sales Unit1 piece(s)
- Recording / Playback Channels 12×4
- Number of Mic Inputs 6
- Number of Line Inputs 8
- Instrument Inputs 2
- Number of Line Outs 2
- Headphone Outs 4
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply Yes
- USB Version 2.0
- Width 282 mm
- Depth 268 mm
- Height 74 mm
- Connection Format USB port Micro B
- User InterfacePhysical
- Number Of Tracks12
- Number of faders10
- Simultaneous Recording: Amount Of Tracks12
- DSP Input channels8
- EffectsYes
- Storage MediumSD, USB
- DSP Output Channels4
- Busses4
- Phantom powerYes
- Number of Microphone Inputs6
- XLR Connectors6
- Jack Connectors8
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs2
- MIDI InterfaceNone
- Physical outputs6
- USB connectionYes
- Digital stagebox connectionNo
- Digital ConnectionsNone
- HotspotNo
- Miscellaneous ConnectorsLineout
- Multitrack RecordYes
- Headphone connectionYes
- Soundcard interfaceMicro Usb Type B
- Options6 Sound Pads
- integratated Player/Rec via USB/SDMultitrack
- Recorder FormatWAV
- RTANo
- FX Processor1
- 31 Band EQ0
- Matrix0
- DCA/VCA Groups0
- Sample rate48 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Included in deliveryPower Supply, USB-A to Micro USB-B Cable, 3.5mm TRRS Cable
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Zero latency monitoringYes
- Digital MADINo
- Digital DanteNo
- 110V capableYes
- CaseNo
- 19″ RackmountNo
- Weight1,5 kg
