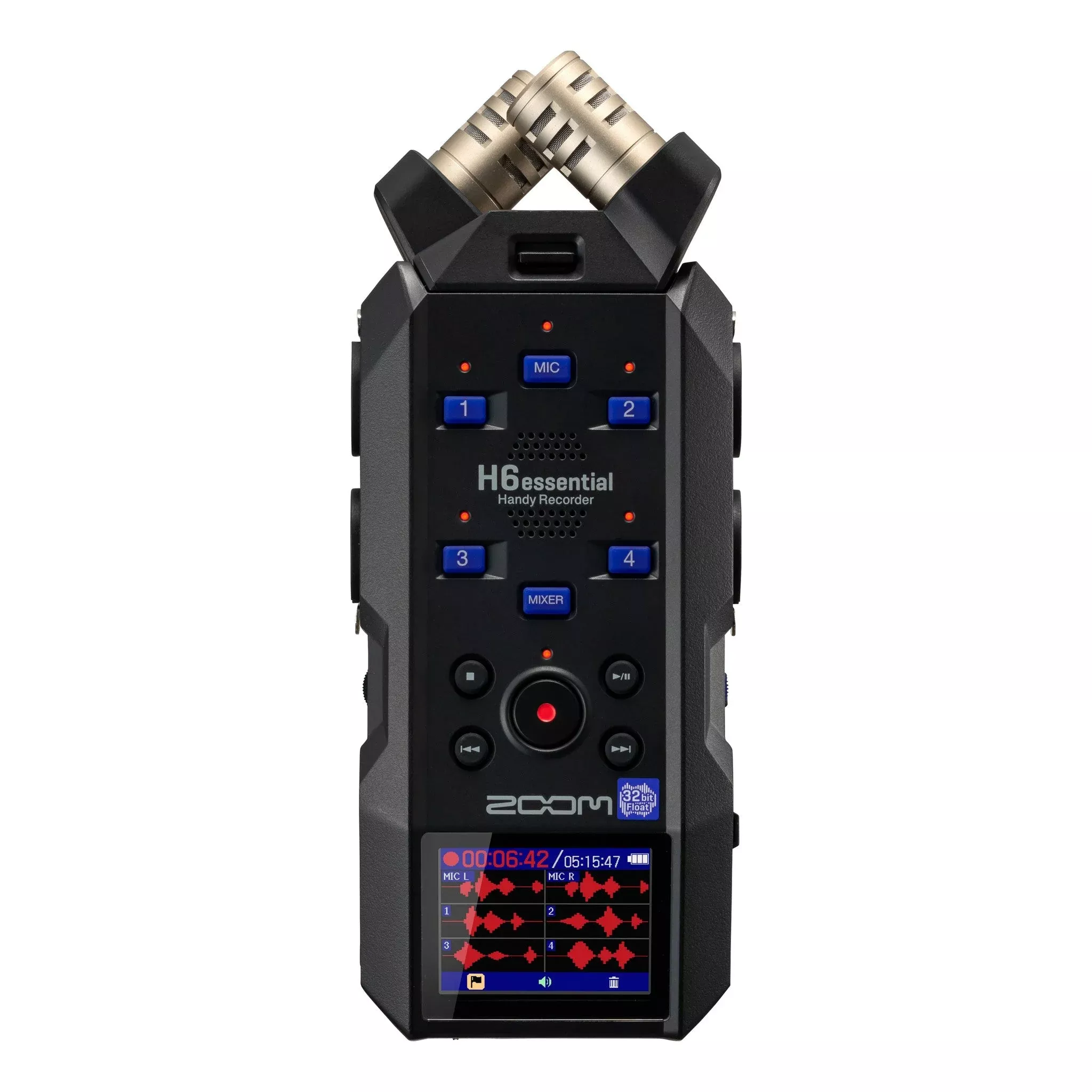

Zoom H6essential 6-Track 32-BitPortable Recorder, the most advanced handheld recorder, is a powerfulrecording system that offers unmatched versatility and exceptional quality.With six tracks of 32-bit float recording, the H6essential provides a recordingpowerhouse for creators that is unparalleled in the market.
32-Bit Float and Dual ADConverters
The H6essential features 32-bitfloat and dual AD converters that captures a huge dynamic range, which allowscreators to record perfect audio that is clip-free every time.
Accessibility for the Blind andVisually Impaired
The Essential Series was designedwith accessibility for the blind and visually impaired. Creators can navigatethe menu with audible descriptions through the built-in speaker or headphones,and can choose from seven languages: English, Spanish, French, Japanese,German, Italian, or Chinese.
Six Perfect Tracks
The 4 XLR/TRS combo inputs featureultra-clean Zoom preamps, and the included X/Y microphones can capture up to abooming 135 dB SPL, equivalent to a jet taking off.
Next Generation 3.0 CapsuleSystem
The H6essential’s 3.0 capsulesystem has been updated to support 32-bit float and offers creators moreoptions to use the right microphone for their recordings.
Versatile Design
When the X/Y mic is not needed,detach the capsule and use the included cap for a low profile setup. TheH6essential’s USB-C port can connect to PC, Mac, iOS and Android devices to useas a 32-bit float interface while simultaneously recording all six tracks to anSD card.
For Musicians, Filmmakers andPodcasters
The H6essential is a portablestudio that is perfect for musicians, filmmakers, and podcasters. Mic up to fZoom’sinstruments using the XLR inputs and use the X/Y microphones to capture thefull ensemble in beautiful stereo. Filmmakers will appreciate the 32-bit floatrecording, interchangeable capsules, fZoom’s XLR inputs, and wireless timecode.For podcasters, the H6essential has fZoom’s XLR inputs. For two additional XLRinputs, connect the optional EXH-6e capsule.
Waveform Display and Built-InMixer
The H6essential has a waveformdisplay that allows you to see yZoom’s audio as it records. For full control ofyZoom’s mix, hit the ‘Mixer’ button and quickly adjust yZoom’s levels.
Connectivity
Use the BTA-1* Bluetooth Adapterto pair with yZoom’s iOS device to remotely hit record, adjust yZoom’s mix,view yZoom’s waveforms, and change settings. With the BTA-1* Bluetooth Adapter,you can also pair with Bluetooth timecode devices for audio and video sync. Theline output is perfect for connecting to a camera, and the headphone outputallows you to monitor yZoom’s audio.
Improved Design
The recording and rotary controlshave been meticulously designed to allow for silent operation, and the improvedonboard speaker is perfect for quick reference. The new full-color LCD screenprovides you with a more vivid view as you record and navigate the menu.
Key Features
- 6-track recorder with Dual A/DConverters
- Gain-free recording with no needfor gain adjustment
- Supports up to 96kHz sample rate
- Mic Capsule System 3.0 with 32-bitfloat support
- X/Y Mic Capsule included, capableof capturing up to 135 dB SPL
- 4 XLR/TRS combo inputs withlocking connectors
- Features a color LCD screen
- Built-in mixer for adjusting audiolevels of each track
- Includes a built-in speaker forquick reference playback
- Equipped with a 3.5mm headphoneoutput and 3.5mm line output
- Voice Guidance accessibility forthe visually impaired
- Functions as a 32-Bit Float audiointerface for PC, Mac, iOS, and Android devices via USB-C port
- Can be used as an interface andrecord to SD card simultaneously
- Bluetooth compatibility with theBTA-1* Bluetooth Adapter for syncing with wireless timecode devices
- Pair with the H6essential ControlApp for iOS using the BTA-1* Bluetooth Adapter
- Supports recording to SD cards upto 1TB in size
- Provides 10 hZoom’ss of batterylife using 2x AA batteries or USB-C Bus Power.
*Please note: BTA-1 Adapter notincluded
Technical Specifications
Channels
2(MIC Capsule) + 4(XLR/TRS INPUTS)
Mic Input
Mic Type
Unidirectional
Sensitivity
-42 dB, 1 kHz at 1 Pa
Input Gain
Adjustment unnecessary (dual ADconverter circuits used)
Max Sound Pressure Input
135 dB SPL
XLR/TRS Inputs
Connectors
XLR/TRS combo jacks (XLR: 2 HOT /TRS: TIP HOT)
Input Gain
Adjustment unnecessary (dual ADconverter circuits used)
Input Impedance
MIC: 3 kΩ or more LINE: 3 kΩ ormore
Maximum Input Level
XLR: +4 dBu TRS: +24 dBu
Phantom Power
+48V
Equivalent Input Noise
−120 dBu or less
Line Out
Connector
1/8″ stereo mini jack
Maximum Output Level
+2 dBu
Headphone
CONNECTOR
1/8″ stereo mini jack
Maximum Output Level
20 mW +20 mW(32 Ω load)
Built-In Speaker
500mW/8Ω mono speaker
Recording Media
4GB–32GB microSDHC cards 64GB–1TBmicroSDXC cards
WAV Supported Formats
44.1/48/96kHz 32-bit float BWF andiXML
Maximum Simultaneous RecordingTracks
44.1/48kHz: 8 (2 MIC Capsule + 4XLR/TRS INPUTS + 2 LR) 96kHz: 6 (2 MIC Capsule + 4 XLR/TRS INPUTS)
LCD
2.00″ full color (320 x 240)
Batteries
4 AA
AC Adapter
ZOOM AD-17 (DC 5 V/1 A) * USB buspower is supported.
USB
Connector
USB Type-C
Mass Storage
CLASS: USB 2.0 High Speed
Audio Interface
CLASS: USB 2.0 High Speed
SAMPLING RATE: Multi Track mode: 44.1/48/96kHzStereo Mix mode: 44.1/48/96kHz
BIT RATE: 24-bit/32-bit float
CHANNELS: Multi Track mode: 6 in/2out Stereo Mix mode: 2 in/2 out
BTA-1: Support (iOS App)
Estimated Continuous OperationTime Using Batteries
Alkaline batteries: about 18 hZoom’ss48 kHz/32-bit float, Mic Capsule 2ch recording
