Home » Shop » hot sale » Zoom H4essential 4-Track 32-Bit Portable Recorder

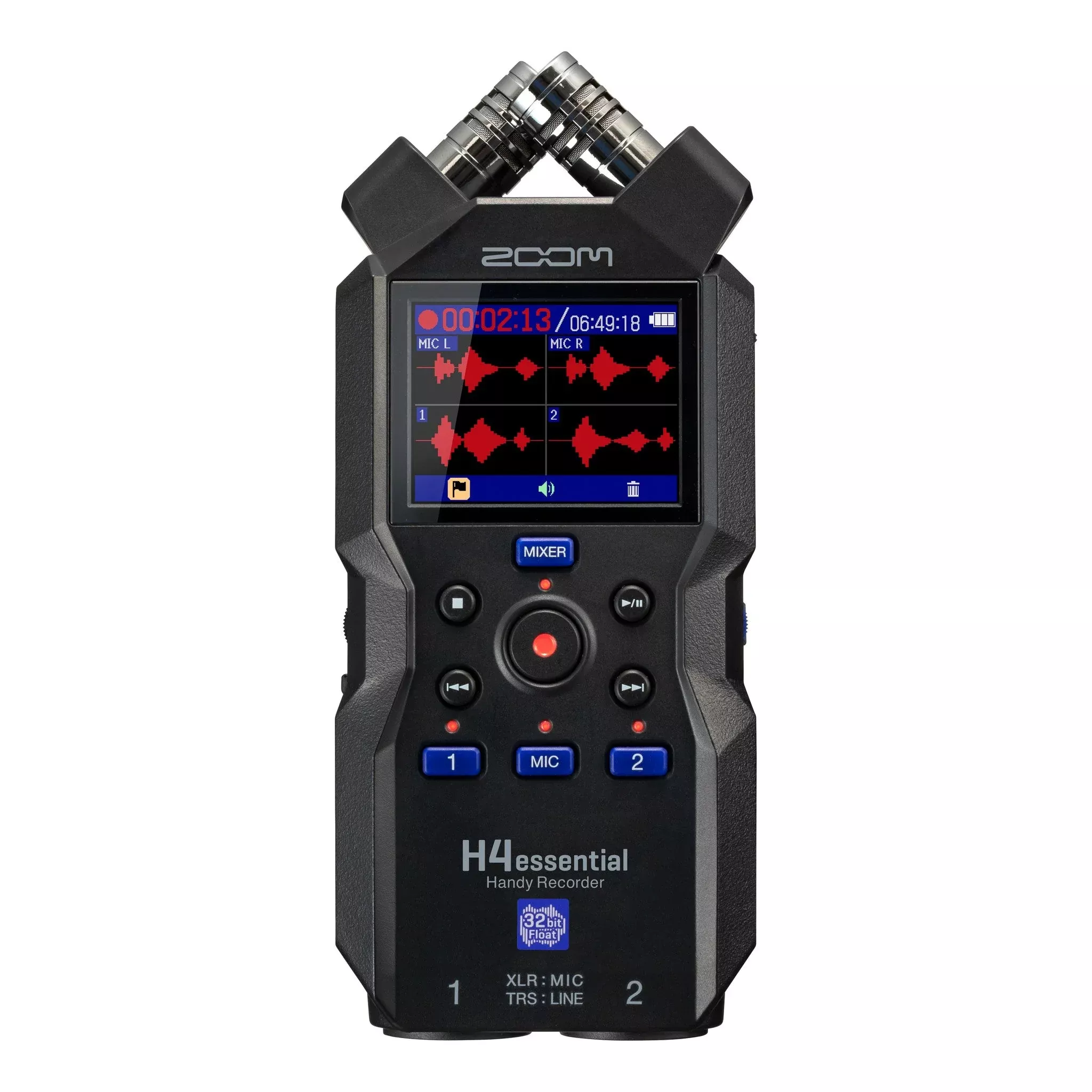

Zoom H4essential 4-Track 32-Bit Portable Recorder

Original price was: $175.99.Current price is: $131.58.

Sale!
SKU: ZOOM-H4ESSENTIAL-ZH4E Category:
Share

Zoom H4esesential 4-Track 32-Bit Portable Recorder

Overview

  • The Zoom H4esesential 4-Track 32-Bit Portable Recorder is a professional audio recording device for recording music, podcasts, and audio-for-video.
  • 4-Track Recording: The H4essential includes 32-bit float recording, advanced X/Y mics, and 2 XLR/TRS inputs, giving creators multiple ways to record their projects.
  • 32-Bit Float Recording: The device captures high-quality, clip-free audio without the need to adjust gain levels.
  • Accessibility: The Essential Series was designed for blind and visually impaired users, with audible menu descriptions available through the built-in speaker or headphones in seven languages.

Key Features

  • Recording: 4-track recorder with Dual A/D Converters and 32-bit float recording
  • Sample Rate: Supports up to 96kHz sample rate
  • Built-In Microphones: Advanced 90º X/Y stereo microphones with up to 130 dB SPL capture
  • Inputs: 2 XLR/TRS combo inputs with locking connectors and a 3.5mm mic/line input for lavalier mics and line level sources
  • Audio Interface: Functions as a 4-in/2-out 32-bit float audio interface for PC, Mac, iOS, and Android devices via USB-C
  • Simultaneous Recording: Can be used as an interface while recording to an SD card at the same time
  • Mixer: Built-in mixer allows each track’s audio level to be adjusted
  • Display: Full-color LCD screen with waveform display
  • Monitoring: Built-in speaker for quick reference playback and 3.5mm line output for headphones or camera connection
  • Bluetooth Control: Supports wireless timecode devices and the H4essential Control App for iOS using the BTA-1 Bluetooth Adapter
  • Storage: Supports SD cards up to 1TB
  • Power: Runs on 4 AA batteries, USB-C bus power, or ZOOM AD-17 AC adapter
  • Controls: Recording and rotary controls are designed for quiet operation
  • Note: BTA-1 Adapter not included

Technical Specifications

  • Inputs
    • Built-In Mic: 1 stereo built-in mic
    • XLR/TRS: 2
    • MIC/LINE IN: 1
  • Outputs
    • Headphones: 1
    • Built-In Speaker: 1 mono built-in speaker
  • Built-In Mic
    • Type: 90º XY stereo format
    • Directionality: Unidirectional
    • Sensitivity: –43 dB/1 Pa at 1 kHz
    • Maximum Sound Pressure Input: 130 dB SPL
  • XLR/TRS In
    • Connector: 2 x XLR/TRS combo jacks
    • Wiring: XLR: 2 HOT; TRS: TIP HOT
    • Input Gain: Adjustment unnecessary
    • Input Impedance: XLR: 3 kΩ or more; TRS: 3 kΩ or more
    • Maximum Input Level: XLR: +4 dBu; TRS: +24 dBu
    • Phantom Power: +48 V, channel total 10 mA or less
    • Equivalent Input Noise: -120 dBu or less (IHF-A) @150 Ω input
  • MIC/LINE In
    • Connector: Stereo mini jack x1
    • Plug-In Power: Supported
    • Input Gain: Adjustment unnecessary
    • Input Impedance: 2 kΩ or more
  • Headphones Output
    • Connector: Stereo mini jack x1
    • Maximum Output Level: 20 mW + 20 mW into 32 Ω load
    • Output Impedance: 15 Ω or less
  • Recorder
    • Maximum Simultaneous Recording Tracks: 4
    • Maximum Simultaneous Playback Tracks: 4
    • Recording Format: WAV
    • Sample Rates: 44.1 / 48 / 96 kHz
    • Bit Depth: 32-bit float mono/stereo
    • Metadata Support: BWF and iXML formats supported
    • Recording Media: 4–32GB microSDHC cards and 64GB–1TB microSDXC cards
  • Display
    • LCD: 2.0-inch full-color LCD, 360 x 240
  • USB
    • Connector: USB Type-C
    • USB Cable Requirement: Use a USB cable that supports data transfer
    • USB Bus Power: Supported
    • USB Mic: USB 2.0 High Speed, 44.1 / 48 kHz, 24-bit / 32-bit float, 4-in/2-out
    • File Transfer: USB 2.0 High Speed
  • Remote
    • Dedicated Wireless Adapter: ZOOM BTA-1
  • Power
    • Batteries: 4 AA batteries, alkaline, NiMH, or lithium
    • AC Adapter: ZOOM AD-17, DC 5V/1A
    • USB Bus Power: Supported
    • Alkaline Battery Operation: About 9 hours
    • NiMH Battery Operation: About 14 hours using 1900 mAh batteries
    • Lithium Battery Operation: About 20 hours
    • Battery Test Conditions: 2-track recording with built-in XY mic, 48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on
    • Operation Time Note: These values are approximate and will vary greatly according to use conditions.
    • Power Consumption: 3 W maximum
  • Physical
    • Dimensions: 66.9 mm (W) x 156.1 mm (D) x 38.0 mm (H)
    • Weight Including Batteries: 226g

Installation / Use Cases

  • Use as a 4-track portable recorder for music, podcasts, interviews, location sound, audio-for-video, rehearsals, and live performance recording.
  • Use 32-bit float recording to capture audio without setting gain manually.
  • Use the built-in 90-degree X/Y stereo microphones for mobile stereo recording and ambience capture.
  • Use the two XLR/TRS combo inputs with compatible microphones, instruments, and professional line-level sources.
  • Use +48V phantom power with supported condenser microphones.
  • Use the 3.5 mm mic/line input for compatible lavalier microphones or line-level sources.
  • Use the 3.5 mm line output for headphones or camera connection.
  • Use USB-C to operate as a 4-in/2-out audio interface with compatible PC, Mac, iOS, or Android devices.
  • Use compatible microSDHC or microSDXC cards up to 1TB for recording storage.
  • Use the optional BTA-1 Bluetooth Adapter for supported remote control or Bluetooth timecode workflows.

Package Contents

  • Zoom H4essential 4-Track 32-Bit Portable Recorder
