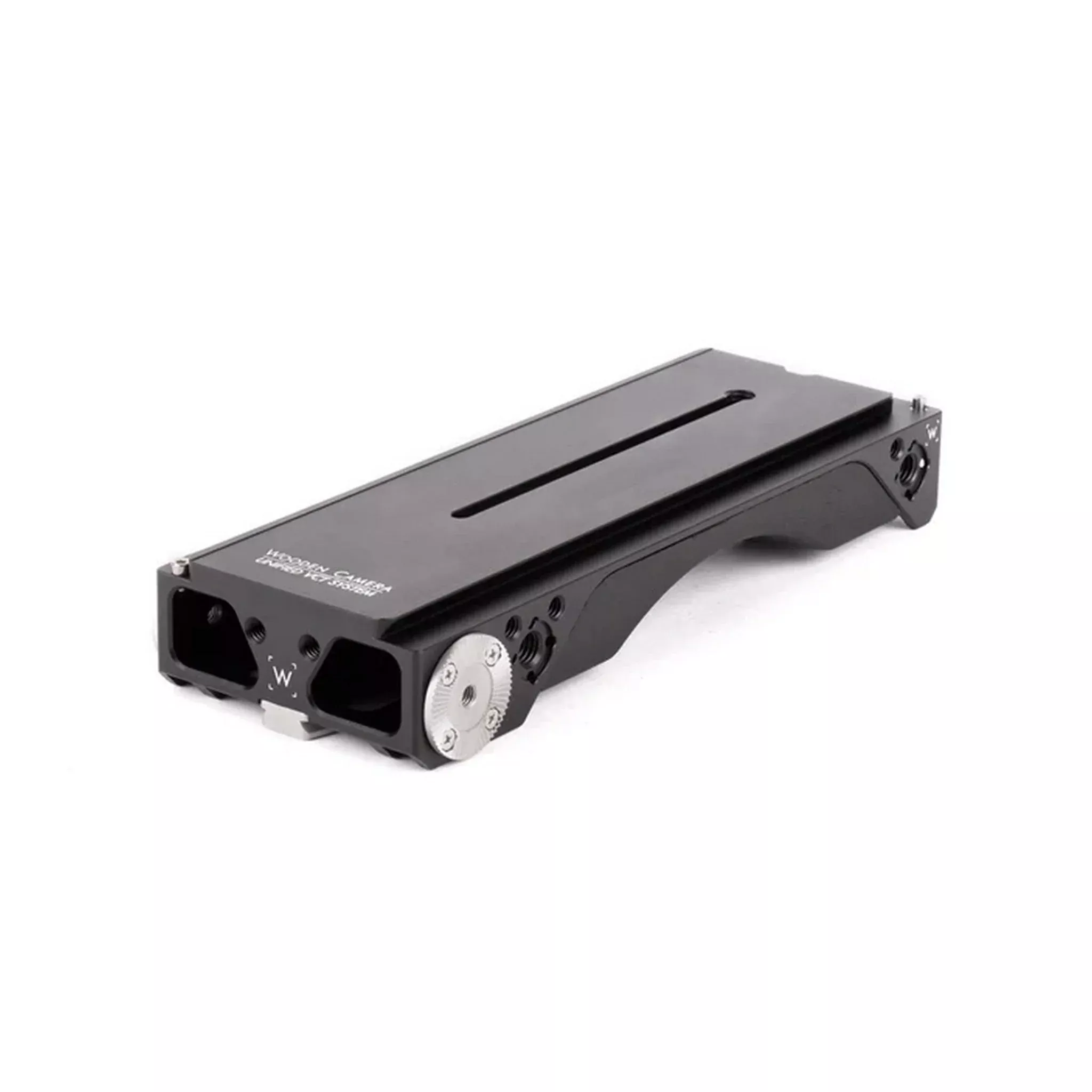

Wooden Camera Unified VCT Wedge Plate
The Unified VCT Wedge Plate is a compact, Sony VCT-14 compatible wedge plate that interfaces with any Wooden Camera Unified Baseplate. Its reduced-height ARRI dovetail profile is designed for quick, well-balanced shoulder mounting, and a removable shoulder pad adds ergonomic comfort.
Featuring lockdown safety pins, adjustable locking knob, and multiple accessory mounting options—including ARRI rosettes and ¼-20/⅜-16 threaded holes—this wedge plate enables flexible configurations including hand-held setup enhancements.
Key Features
- Sony VCT-14 Standard: Compatible with all Unified Baseplates.
- Reduced-Height ARRI Dovetail: Facilitates proper balance on the shoulder.
- Safety Lock Mechanisms: Safety pins and stopper screws prevent accidental removal.
- Accessory Mounts: Dual M6 ARRI-style rosettes for handgrips, plus ¼-20 and ARRI ⅜-16 accessory mounts with locating pins.
- Wiggle Prevention: Rear knob tightens against the VCT-14 Tripod Plate to eliminate movement.
- Camera Mounting: Key slot on top center allows direct camera attachment using included screws.
- Hardware Included:(2) ¼-20 low-profile screws, (2) ⅜-16 low-profile screws.
Technical Specifications
- Weight: 610 g (1.3 lb)
- Dimensions: 50.8 × 101.6 × 254 mm (2 × 4 × 10 in)
