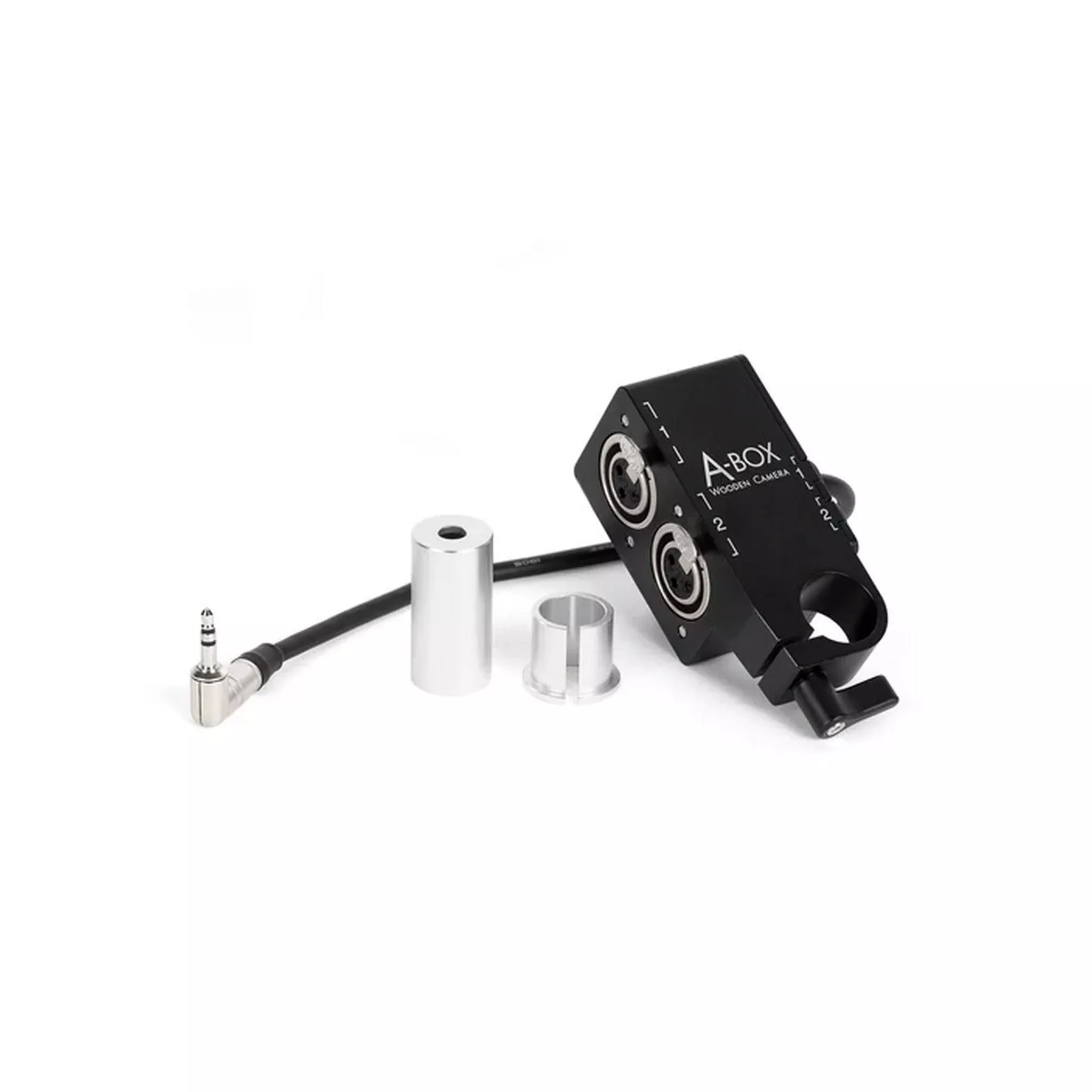

Wooden Camera A‑Box Mini‑Jack
The A‑Box (Mini‑Jack) from Wooden Camera enables you to connect two professional XLR microphones to any camera with a single 3.5 mm (1/8″) input—such as RED® DSMC2 bodies—via the Base Expander Module.
Built for rig integration, it includes premium-grade connectors and versatile mounting options: a bolt-on 19 mm rod for 1/4‑20 threaded attachment and a 15 mm rod clamp (with adapter). Note: Phantom power is not supplied by this unit.
Key Features
- Inputs: 2 × 3‑pin XLR
- Output: 3.5 mm stereo mini‑jack for connection via RED Base Expander Module
- Mounting Options:
- Bolt-on 19 mm rod (with 1/4‑20 screw)
- 19 mm rod clamp with 15 mm adapter bushing
- Construction: Rugged housing with professional-grade connectors
- Compact & Lightweight: 363 g (0.8 lbs); 76 × 76 × 178 mm (3 × 3 × 7 in)
- Compatibility: Works with RED DSMC2 models (Weapon, Epic‑W, Scarlet‑W, Raven) via Base Expander Module
Technical Specifications
- Weight: 363 g (0.8 lbs)
- Dimensions: 76 × 76 × 178 mm (3.0 × 3.0 × 7.0 in)
What’s Included
- 1x Wooden Camera A‑Box (Mini‑Jack)
- 1/4‑20 × 3/8″ screw
- Bolt-on 19 mm rod
- 15mm Adapter Bushing
- Limited 1-Year Manufacturer Warranty
