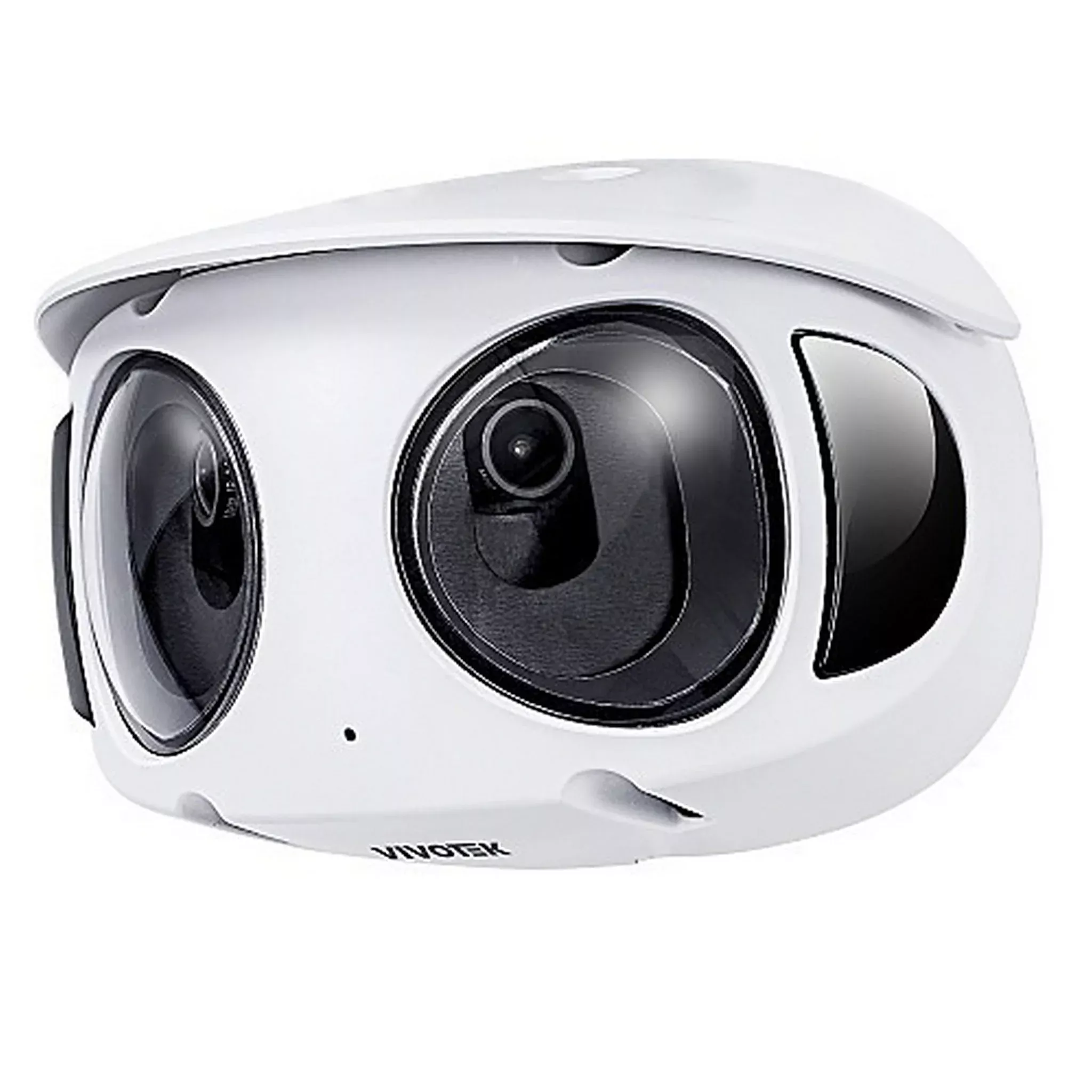

VIVOTEK MS930‑EHV 8MP Dual‑Lens Panoramic AI Network Camera
The VIVOTEK MS930‑EHV provides full 180° panoramic coverage using two 5MP sensors in a single, efficient unit. Built for demanding outdoor applications, it boasts rugged IP66/IK10 construction, 20 m IR night vision, and intelligent AI analytics—all designed to streamline surveillance deployment.
Key Features
- Resolution: 8MP (4864 × 1632) at 15 fps via two 5MP sensors
- Lens & View: Fixed 2.8 mm lens, F1.2, 180° horizontal, 50° vertical
- Night Vision: IR LEDs provide up to 20 m (65 ft) range
- Low-Light Performance: 0.018 lux color, <0.01 lux B/W, 0 lux with IR
- WDR: WDR Pro 120 dB for high-contrast scenes
- Storage: Built-in 512 GB industrial microSD card plus NAS support
- Audio: One-way audio with built-in microphone (approx. 5 m range)
- Protection: IP66, IK10-rated metal housing for outdoor durability
- Power: IEEE 802.3at PoE Class 4; up to 20 W
- Analytics: Smart VCA, Audio/Tampering Detection, Attribute Search, and more
Technical Specifications
- Dimensions: 6.5″ × 4.41″ × 3.82″ (without sunshield); 6.5″ × 3.94″ × 4.69″ (with sunshield)
- Weight: 2.65 lb (1.2 kg)
- Operating Conditions: –40 °C to 55 °C (–40 °F to 131 °F), up to 90% humidity
- Warranty: 5 years
Model Variations
- MS930‑EHV: Standard camera unit
- MS930‑EHV‑1Y: Includes 1-Year VORTEX Cloud License
