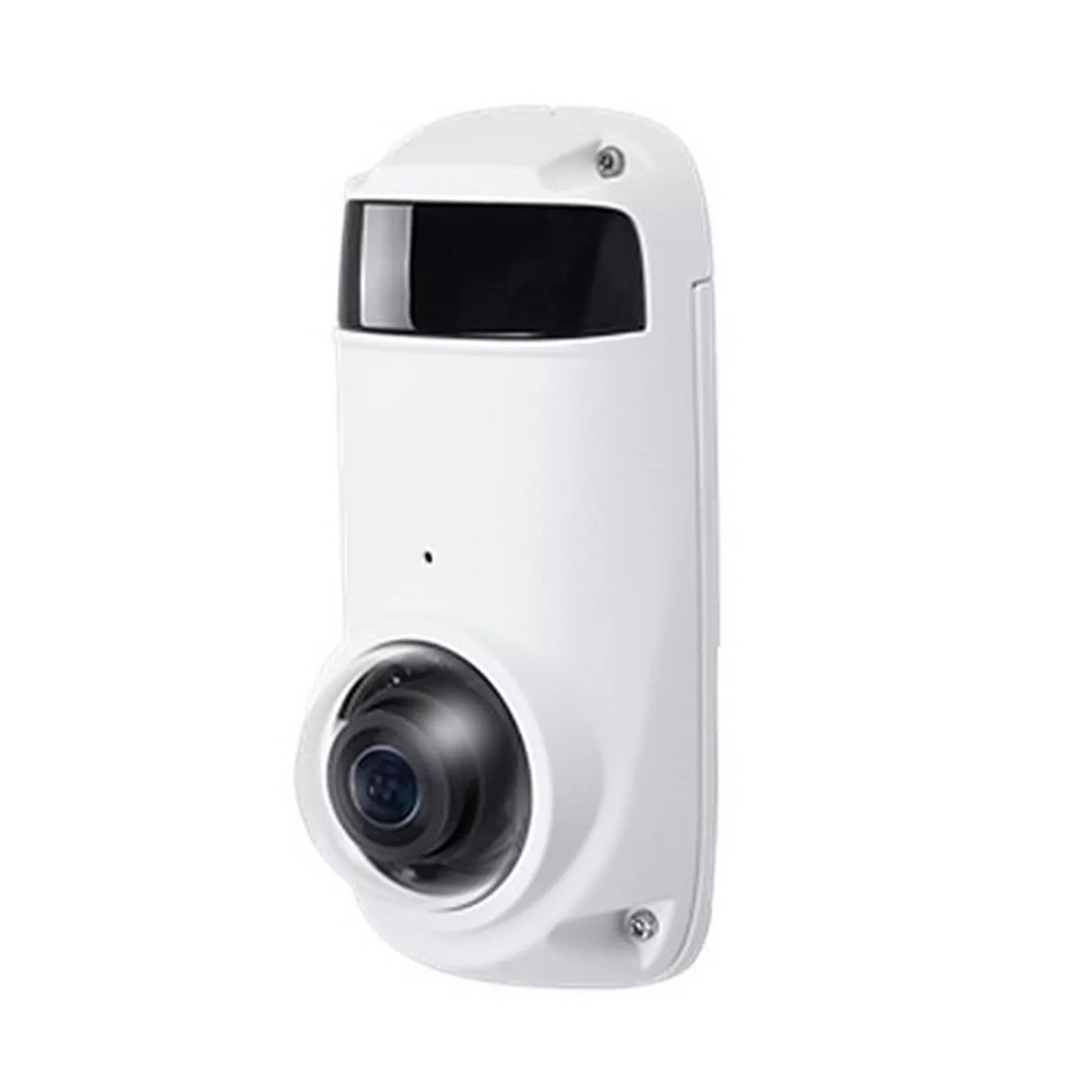

VIVOTEK CC9391-HV 8MP 180-Degree IR Panoramic AI Network Camera
The VIVOTEK CC9391-HV is a high-performance panoramic network camera featuring 8MP resolution and advanced AI-based analytics.
Built to endure harsh environments, the CC9391-HV is IP66 and IK10 rated and supports advanced cybersecurity.
Key Features:
- Sensor: 1/1.8″ CMOS, 8MP (3840×2160)
- Lens: 2.53 mm Fixed-Focal, F2.4, 180° H / 103° V / 180° D
- WDR: WDR Pro, 120 dB
- Low-Light: 0.08 lux (Color), 0.005 lux (B/W)
- IR: Smart IR up to 20M (4x IR LEDs)
- Zoom: ePTZ with 48x digital zoom (12x built-in)
- Streaming: H.265, H.264, MJPEG; up to 3 streams
- Storage: MicroSD/SDHC/SDXC (up to 1TB), NAS
- Durability: IP66 weatherproof, IK10 vandal-proof
- Power: IEEE 802.3af PoE (Class 0, Max: 10.83W)
- AI: People/vehicle detection, facial recognition, smart motion detection
Technical Specs:
- Memory/Storage: 8 GB Flash, 2 GB RAM
- Viewing: Field of view +20° Tilt/−20°
- Video Profiles: Up to 3 streams / 8 profiles
- Dimensions: 160 x 72 x 60 mm
- Weight: 492 g
AI Analytics:
- Deep learning hardware accelerator
- Smart VCA: intrusion, line crossing, crowd detection, object tracking
- People/vehicle detection and classifications
- Attribute extraction and path analysis
