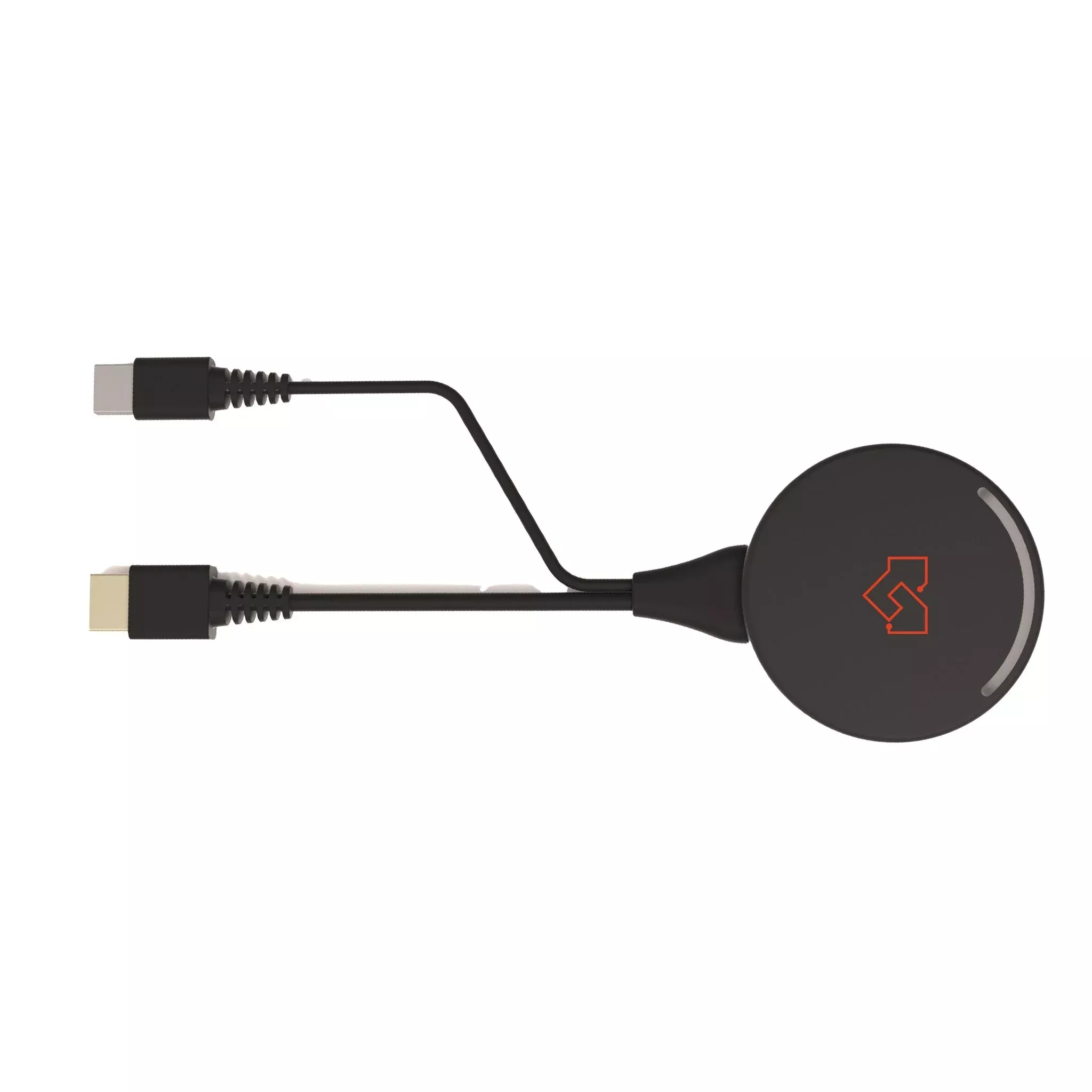

VigilLink HDMI Dongle Transmitter
The VLWP-HD1 HDMI Wireless Transmitter offers an efficient, user-friendly wireless solution for transmitting high-definition video and audio. With plug-and-play functionality, this device eliminates the need for any additional software or drivers. It supports HDMI 1.4 input and allows seamless video streaming at up to 2560×1440 resolution. Whether you’re working in business presentations or digital signage, this wireless transmitter ensures smooth, high-quality performance, all without the hassle of extra cables or setup. Experience convenient wireless freedom with the VLWP-HD1.
Designed to work with all wireless media bases, the VLWP-HD1 offers easy setup and control via capacitive touch, providing an intuitive and responsive experience. The device supports Wi-Fi IEEE 802.11 a/g/n/ac, enabling stable wireless transmission at speeds up to 1200Mbps. Its small form factor and robust features make it perfect for users seeking a compact yet powerful wireless HDMI solution.
Key Features:
- HDMI 1.4 input, supporting up to 2560×1440 resolution
- Wireless video output with a range of up to 35 meters
- Easy setup with no need for drivers or additional USB power
- Supports Wi-Fi 802.11 a/g/n/ac for fast, reliable transmission
- Compact, portable design
Technical Specifications:
HDCP: HDCP 1.4
Video Input Formats: HDMI 1.4
Video Input Resolution: VESA, maximum 2560×1440
Video Input Timing: 1920×1080, 1680×1050, 1600×900, 1440×900, 1400×1050, 1366×768, 1280×1024, 1280×800, 1280×720, 1024×768, 1920×1200, 1600×1200, 2560×1440 at 24, 25, 30, 50, 60 Hz
Video Output Formats: 1 x Wireless
Audio Input Formats: HDMI 2CH PCM
Audio Output Formats: Wi-Fi 11b/g/n/ac
HDMI Input: 1 x HDMI Type A 19P male connector
USB Input: USB Type A, USB 2.0
Wireless Transmission Protocol: Wi-Fi IEEE 802.11 a/g/n/ac
WIFI Frequency Band: 2.4 GHz & 5 GHz
WIFI Antenna: MIMO 2×2
WIFI Data Rate: Up to 1200Mbps
Video Capacity: Wireless Transmission 1080P@60Hz, 2560×1440 30Hz
Distance: Typical: 35 meters without obstacles
Latency: <100ms
Button: Capacitive touch key and vibration
Indicator: Green/Red/color back-lit LED indicator
Mechanical Dimensions (LxHxR): 3.15″ x 2.56″ x 0.05″ (without cables); HDMI cable: 4.33″, USB cable: 8.27″
Weight: ~0.2 lbs (~100g)
Surface Finish: 1-2mm plastic with matte black finish
Power Input: USB Internal 5V
Power Consumption: 2.5W (max.)
Operating Temperature: -4°F to +113°F (-20°C to 45°C)
Storage Temperature: -4°F to +140°F (-20°C to 60°C)
Relative Humidity: 20-85% RH (No condensation)
What’s Included:
- VLWP-HD1 HDMI Wireless Transmitter
- HDMI cable (11 cm)
- USB cable (21 cm)
