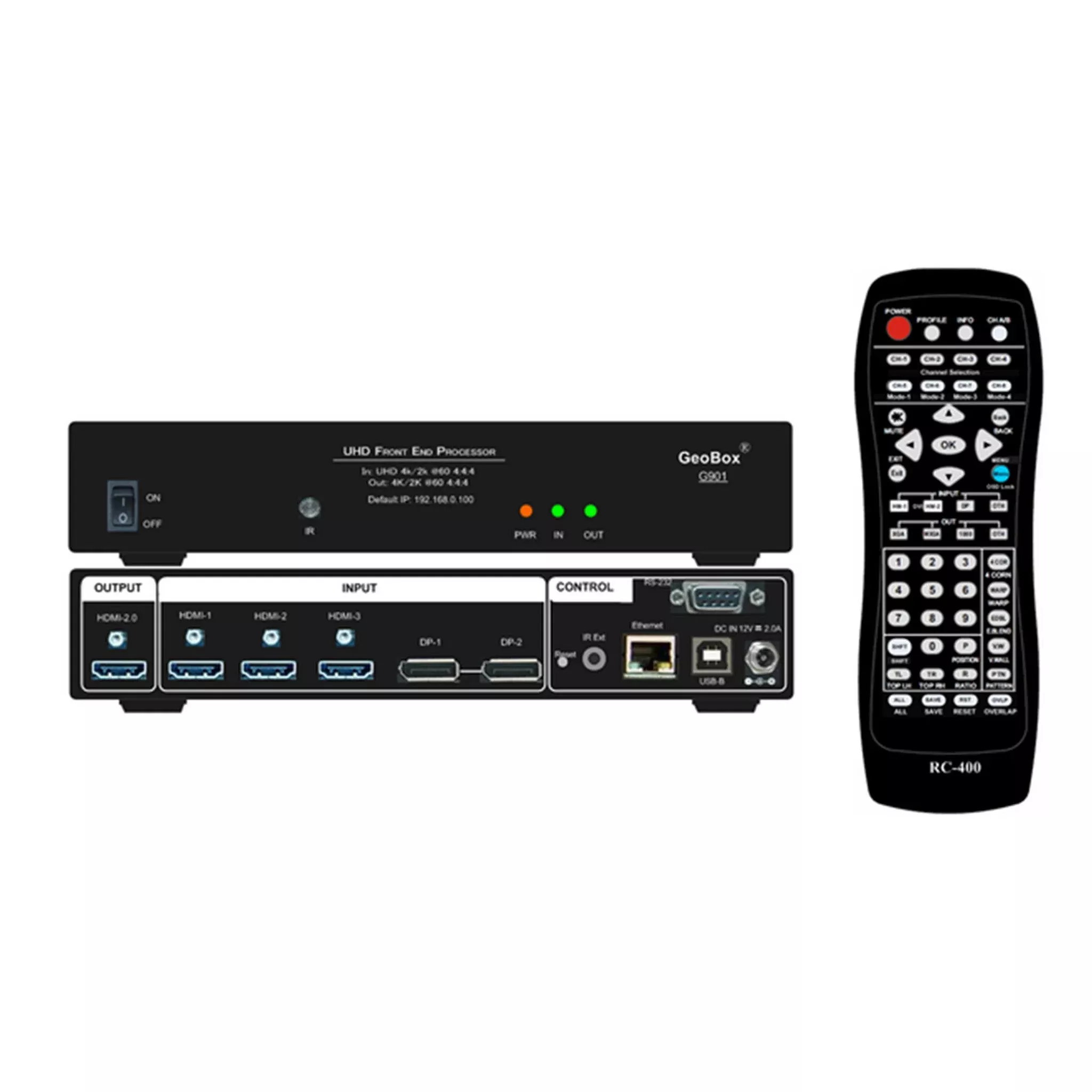

3D Format Converter Switch and Quad View
The G901 is a professional-grade video processor designed for demanding display environments. It supports a wide array of high-definition formats and offers seamless switching, precise image scaling, and the ability to manage multiple input sources with ease. Ideal for applications such as digital signage, video walls, and high-end projectors, the G901 offers an advanced set of features like 3D motion adaptive de-interlace, side-by-side split views, and a variety of rotation and cropping options. Its flexibility allows users to customize their video display setups, making it a versatile tool for both commercial and industrial use.
This device also supports high-quality image processing through a 10-bit processor and has the ability to decode and convert various 3D signal formats. Whether used for live broadcasts, corporate presentations, or immersive media displays, the G901 ensures that users can enjoy stunning video quality, with minimal latency and optimal resolution. The ability to store system settings makes the G901 an efficient solution for recurring setups, while its seamless output and low-angle smooth algorithms provide a continuous, professional display output.
Designed with both flexibility and performance in mind, the G901 supports up to 4K resolution, has robust control options through IR, RS232, USB, and Ethernet, and comes with CE/FCC/RoHS certifications for reliability. Its compact design makes it easy to integrate into any professional environment, ensuring that high-quality video processing is always within reach.
Key Features
- Advanced 10-bit processing for superior image quality
- Supports 3D motion adaptive de-interlace for interleaved input signals
- Flexible image rotation, flipping, cropping, and scaling up to 4K/60 input
- Side-by-side, top/bottom, and frame sequential 3D format conversion
- Seamless 5×1 switching with continuous output signal
- Multiple split views with adjustable image sizes and color adjustments
- Multiple input ports: HDMI 2.0b and DisplayPort 1.4
- Comprehensive control via IR, RS232, USB, and Ethernet
Technical Specifications
Input Ports: 3x HDMI 2.0b, 2x DisplayPort 1.4
Input Resolution: HDMI: 4096×2160 @60fps or 7680×2160 @30fps, DisplayPort: 7680×4320 @30Hz (True 8K/4K @30Hz)
Output Resolution: HDMI 2.0b up to 4096×2267 @60fps or 7680×1234 @60fps
Output Range: Horizontal: 800-7680, Vertical: 600-3840
Maximum Resolution: 600MHz
Output Signal: SDR, Progressive Full-Color RGB 4:4:4 10-bits
HDCP Support: V2.2/V1.4 in HDMI & V2.2 in DisplayPort ports
Latency: 16.7ms (V=60Hz)
PIP/POP Function: PIP image size from 320×180 up to 1920×1200 resolution, flexible positioning, rotation, and aspect ratio adjustment
Seamless Switching: 5×1 with continuous output signal
Split Views: Supports 4 types of 3-split views and 2 types of 4-split views on UHD monitors
Processor Features: 10-bit processing, 3:2/2:2 cadence, low-angle smooth algorithm
3D Signal Support: Decode side-by-side, top/bottom, frame-packed, line-interleaved, and frame-sequential formats into output
Power Supply: DC adapter: 12V 2A (100V-240V), max power consumption: 0.6A (7.2W)
Working Environment: 45°C, 10-90% RH
Control Options: IR, RS232, USB, Ethernet
Storage Settings: 10 system settings can be stored and backed up
Dimensions: Width: 8.66 inches, Length: 6.34 inches, Height: 1.61 inches
Weight: 1.92 lbs (Body Only)
Certifications: CE/FCC/RoHS Certified
Warranty: 30 Month Warranty
What’s Included
- G901 Video Processor
- Remote Control
- DC Adapter (12V 2A)
- IR Receiver
- RS232 Cable
- User Manual
