ViewSonic VPC37-W55-G1 OPS Slot-in PC
ViewSonic VPC37-W55-G1 is an OPS slot-in PC designed for ViewSonic ViewBoard interactive display environments. It enables full Windows computing for educators and business users, supporting interactive presentation and collaboration workflows. This makes it ideal for classrooms and corporate spaces where integrated computing and security are critical.
The slot-in PC operates on Windows 11 Pro and integrates directly into compatible displays without external cabling. An Intel Core i7 processor and solid-state storage support responsive multitasking and application performance. Integrated graphics support high-resolution output for detailed visual presentation.
Built-in connectivity supports network access and peripheral integration within interactive display systems. Compact OPS form factor simplifies installation and maintenance. Wireless connectivity supports modern network environments without external adapters.
Key Features
- Intel Core i7 Processor: Powered by Intel Core i7-1260P for responsive performance
- OPS Slot-In Design: Integrates directly into compatible ViewBoard displays
- Windows 11 Pro: Provides enterprise-grade security and management features
- High-Resolution Output: Supports display resolutions up to 5K UHD
- WiFi 6 Connectivity: Supports faster and more reliable wireless networking
- Solid-State Storage: Includes 512GB SSD for fast system responsiveness
Technical Specifications
Processor
Intel® Core™ i7-1260P
Processor Speed
2.1G Turbo boost 4.7G
Operating System
Windows® 11 Pro 64 bit
Media Player Type
Slot-in PC
Graphics
Integrated Intel® Iris® Xe Graphics
Memory
16GB
Storage
512GB SSD
Wireless
WiFi 6
Bluetooth
Bluetooth 5.1

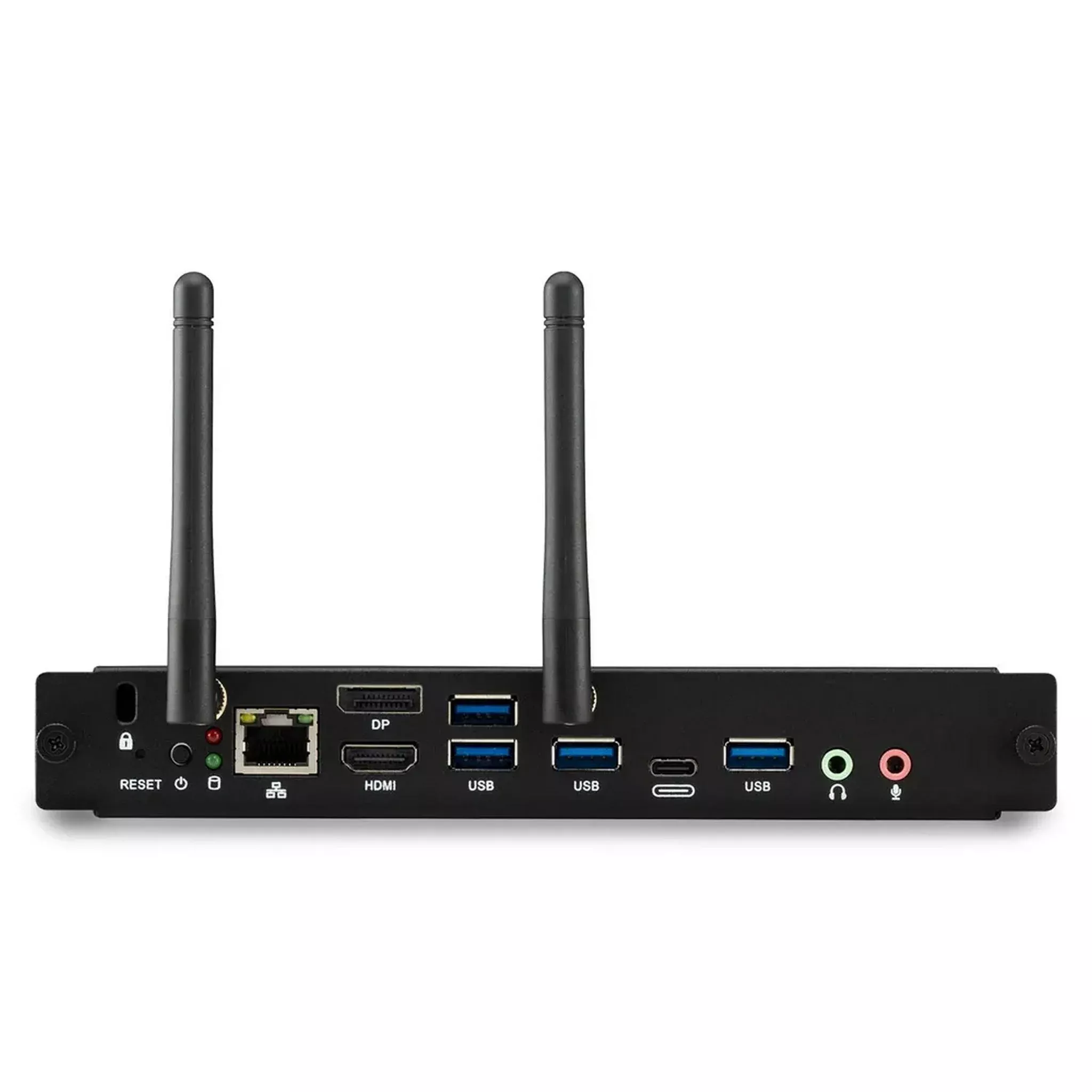

Video Outputs
HDMI 2.0 Out: 1
DisplayPort Out: 1
Audio I/O
3.5mm Audio In: 1
3.5mm Audio Out: 1
USB Ports
USB 3.0: 4
USB Type C: 1
Network
Ethernet LAN (RJ45): 1
Power Requirements
DC 12–19V / 8A
Operating Temperature
23°F–104°F (-5°C–40°C)
Non-Operating Temperature
-4°F–140°F (-20°C–60°C)
Humidity
10–90% non-condensing
Altitude
0–5,000 m above sea level
Certifications
FCC, FCC ID, cTUVus, CA IC
Warranty
One-year limited warranty on parts and labor
Dimensions and Net Weight
Physical (in.): 7.95 x 4.83 x 1.18
Packaging (in.): 10.51 x 7.56 x 2.83
Physical (mm): 202.0 x 122.6 x 30.0
Packaging (mm): 267.0 x 192.0 x 72.0
Net (lbs): 1.33
Gross (lbs): 2.14
Net (kg): 0.6
Gross (kg): 0.97
