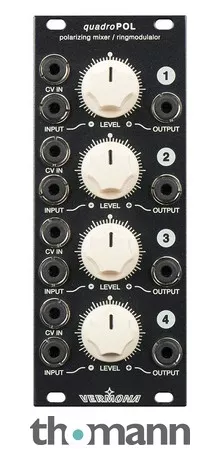

Eurorack Module
- 4-Channel multi-function module
- Each channel can be used as manual attenuator or as an inverter
- Without signal an adjustable voltage is present at the output (-5V to + 5V)
- VCA functionality when using the CV input, whereby a positive voltage opens the attentuator into a positive direction, and an inversion causes negative voltages
- Linear control characteristics of the CV inputs
- Ring modulator functionality when using an audio signal at the CV input
- Generate a voltage-controlled mixer with a maximum of four channels by interconnecting jumpers on the PCB (normalisation of the outputs of adjacent channels to the input of the one below)
- Power consumption: -12V 35 mA, +12V 45 mA
- Dimensions (W x D): 10 HP x 30 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2018
- Item number429145
- Sales Unit1 piece(s)
- Switch Modul No
- CV-Editor/VC-Processor No
- Tools Yes
- Width 10 TE / HP
