Vaddio 999-86600-000 USB Audio Bundle Ceiling-Mounted Audio Conferencing System
All-in-One Audio System for Medium-Sized Conference Rooms

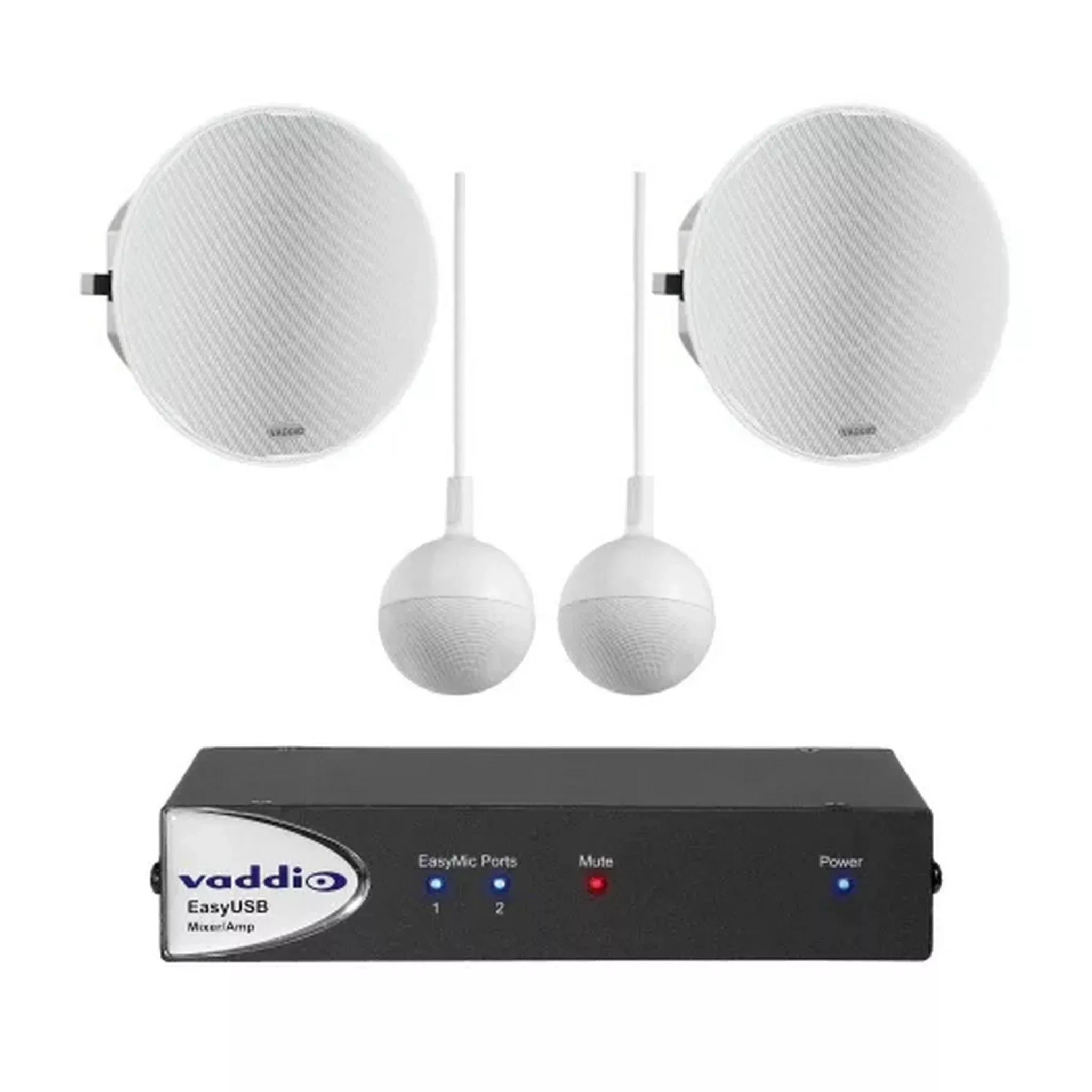

The Vaddio USB Audio Bundle is a comprehensive audio conferencing solution designed for medium-sized rooms. This bundle includes two CeilingMIC microphones, two 4″ ceiling speakers, and an EasyUSB Mixer/Amp, providing seamless integration with PC-based unified communication applications such as Microsoft Teams, Zoom, Webex, and more. The ceiling-mounted design ensures a clutter-free environment while delivering professional-grade audio performance.
The CeilingMIC microphones offer 360° coverage with integrated echo cancellation and advanced DSP features like automatic gain control, ensuring clear and consistent audio pickup throughout the room. The 2-way ceiling speakers are optimized for vocal clarity, featuring a 4″ woofer and a coaxially mounted tweeter. The EasyUSB Mixer/Amp provides 2 x 20W output and supports various audio processing functions, making it an ideal choice for enhancing collaboration in professional settings.
Key Features
- Comprehensive Audio Solution: Includes two CeilingMIC microphones, two ceiling speakers, and an EasyUSB Mixer/Amp for a complete setup.
- 360° Microphone Coverage: CeilingMICs provide full-room audio pickup with integrated echo cancellation and DSP.
- High-Quality Speakers: 4″ 2-way ceiling speakers optimized for vocal clarity and natural sound reproduction.
- EasyUSB Mixer/Amp: Delivers 2 x 20W output with USB 2.0 compliance and various audio processing features.
- Seamless Integration: Compatible with popular UC applications and supports plug-and-play installation via USB.
Technical Specifications
- Microphone Frequency Response: 100 Hz to 16 kHz
- Microphone Dynamic Range:>90 dB
- Speaker Frequency Response: 20 Hz to 20 kHz
- Amplifier Output: 2 x 20W into 8 Ohms
- USB Interface: USB 2.0 Type-B
- Microphone Dimensions: 2.5″ diameter; Interface Box: 10.25″ x 4.6″ x 2″
- Speaker Dimensions: Height: 6″; Grille Diameter: 8.2″; Cutout Size: 7.09″
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Certifications: CE, FCC, TAA
What’s Included in the Box
- EasyUSB Mixer/Amp
- 2 x CeilingMIC Microphones (White)
- 2 x Vaddio Ceiling Speakers (White)
- 2 x Silicone Split Strain Relief Boots (White)
- 2 x CeilingMIC Interface Boxes
- 4 x Ceiling Trim Ring Plates with Mounting Screws (White)
- 2 x Ceiling Tile Braces for CeilingMIC Interface Box
- 2 x Ceiling Tile Braces for Speakers
- 2 x Euro-Style 4-Pin Audio Connectors
- 2 x 3′ Cat 5 Cables (White)
- 2 x Cable Clamp Grommets
- 2 x Stainless-Steel Safety Cables with Steel Carabiner Clips
- 4 x Rubber Feet for Bottom of EasyUSB Mixer/Amp
- 6′ USB Type-A to USB Type-B Cable
- EZ Camera RS-232 Control Adapter
- Power Supply with AC Cord
