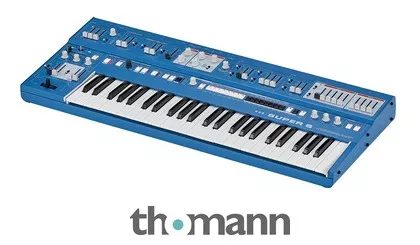

12 Voice Polyphonic Analogue Hybrid Synthesiser
- Binaural analogue signal path
- 2 Digital oscillators (FPGA based)
- Oscillator 1 with sine, sawtooth, square, triangle, noise and wavetable
- Oscillator 2 with sine, sawtooth, square, triangle, noise and pulse width modulation
- Oscillator synchronisation and cross modulation available
- Analogue 24 dB low pass filter with resonance
- Static high-pass filter and switchable overdrive
- Analogue VCA
- Two ADSR envelopes
- LFO with extended frequency range (0.05 Hz – 20 kHz) and keyboard tracking for FM sounds
- Flexible modulation matrix for further sound design possibilities
- Arpeggiator and 64-Step Sequencer with MIDI Sync
- Delay- and chorus effect
- Controller section with assignable Bender
- Portamento faders and octave switches
- 49-Key Fatar keyboard with touch response and aftertouch
- Stereo-output: 2x 6.3 mm jacks
- Stereo headphone output: 6.3 mm jack
- Audio input: 1x 6.3 mm jack
- MIDI In/Out/Thru
- Sustain and expression pedal inputs (2x 6.3 mm jack)
- USB B port
- Dimensions (W x D x H): 830 x 350 x 90 mm
- Weight: 8 kg
- Colour: Blue
- Suitable case: Art. 518091 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2020
- Item number471402
- Sales Unit1 piece(s)
- Number Of Keys 49
- Touch-Sensitive Yes
- Aftertouch Yes
- Split Zones Yes
- Modulation Wheel Yes
- Number of simultaneous Voices 12
- Sound Engine Digital Analog Hybrid
- MIDI interface 1x In, 1x Out, 1x Thru
- Storage Medium Internal
- USB-port Yes
- Effects 2
- Arpeggiator Yes
- Number of Analog Outputs 2
- Digital Output No
- Display No
- Pedal Connections1x Pedal, 1x Sustain
- Dimensions830 x 350 x 90 mm
- Weight8,0 kg
