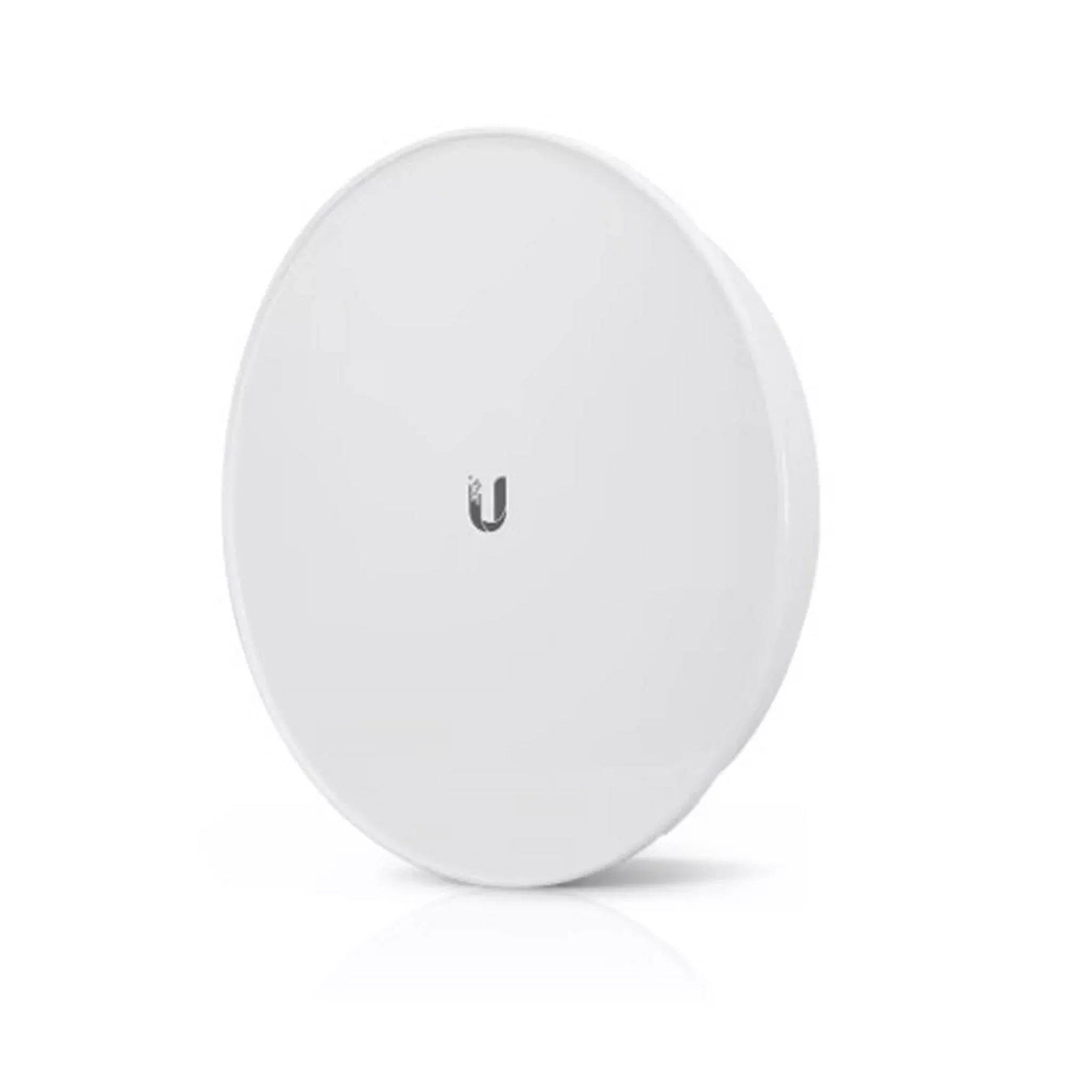

Ubiquiti PowerBeam AC ISO: High-Performance Wireless Bridge
The Ubiquiti PowerBeam AC ISO offers robust connectivity with exceptional performance in point-to-point and point-to-multipoint deployments. Designed to thrive in harsh outdoor environments, this bridge ensures reliable, high-speed communication with advanced noise isolation technology. Its streamlined build and versatile compatibility make it a top choice for professionals.
Key Features
- Superior 25 dBi gain for long-range performance
- Durable enclosure with advanced weather resistance
- Wide operating frequency for versatile deployment
Technical Specification
Dimensions: 420 x 420 x 230 mm (16.5 x 16.5 x 9.1″)
Weight: 2.2 kg (4.9 lbs)
Enclosure material: UV-stabilized plastic, powder-coated SPCC
Mounting: Pole mount kit (Included)
Wind loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range: 20—27V DC
Max. power consumption: 8.5W
Gain: 25 dBi
Channel sizes: PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
Operating frequency: 5150 – 5875 MHz
Certifications: CE, FCC, IC, RoHS
Ambient operating temperature: -40 to 70° C (-40 to 158° F)
Ambient operating humidity: 5 – 95% noncondensing
