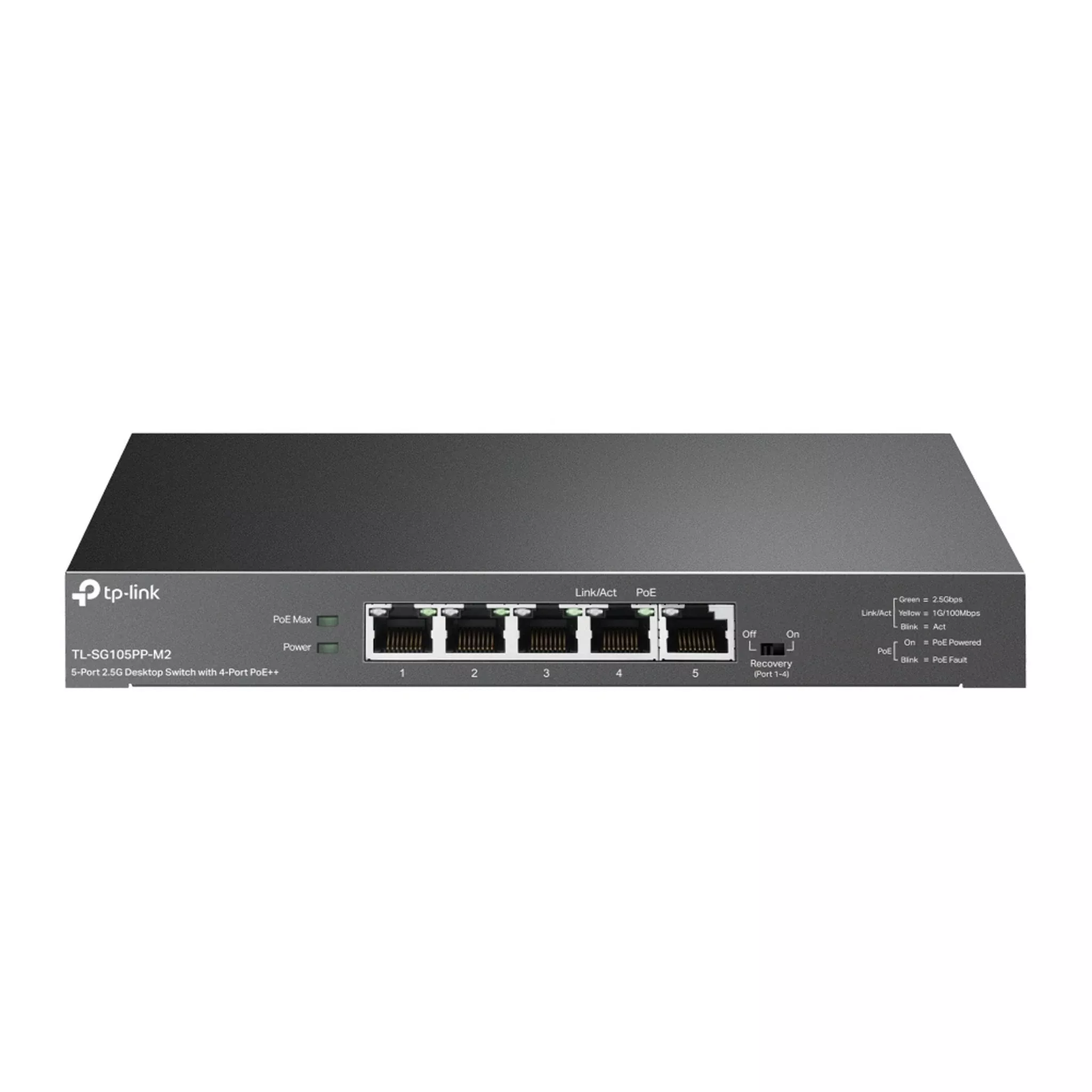

TP-Link TL-SG105PP-M2 5 Port 2.5G Desktop PoE Plus Plus Switch
TP-Link TL-SG105PP-M2 is a 2.5 gigabit desktop network switch designed for small network and device power distribution environments. It enables high-speed data switching and power delivery over Ethernet for compatible devices using a single cable. This makes it ideal for offices, surveillance systems, and network installations where simplified cabling and higher bandwidth are critical.
The switch operates with five multi-speed Ethernet ports supporting up to 2.5 Gbps connectivity. Four ports provide PoE++ power delivery compliant with IEEE 802.3af, at, and bt standards. Integrated QoS and flow control features support stable and efficient traffic handling.
This design supports quick deployment without configuration requirements. It allows reliable operation of powered devices through automatic PoE recovery and intelligent power management. A fanless enclosure supports quiet operation in desktop or shelf-mounted environments.
Key Features
- Five 2.5G Ethernet Ports: Supports 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps connections
- Four PoE Plus Plus Ports: Delivers data and power over a single Ethernet cable
- High Power Budget: Provides up to 60 W per PoE++ port and 123 W total PoE power
- PoE Auto Recovery: Automatically reboots unresponsive powered devices
- Plug and Play Operation: No configuration or installation required
Technical Specifications
Ports
5 × 10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps RJ45
PoE Standards
IEEE 802.3af / 802.3at / 802.3bt type3
PoE Ports
Ports 1–4
Total PoE Power Budget
123 W
Switching Capacity
25 Gbps
Packet Forwarding Rate
18.6 Mpps
MAC Address Table
4K
Transmission Method
Store and forward
External Power Supply
53.5 VDC / 2.43 A
Cooling
Fanless
Dimensions
209 × 126 × 26 mm
8.2 × 4.9 × 1.0″
What’s in the Box
(1) TL-SG105PP-M2 5 Port 2.5G Desktop Switch
(1) Power Adapter
(1) Installation Guide
(4)Rubber Feet
