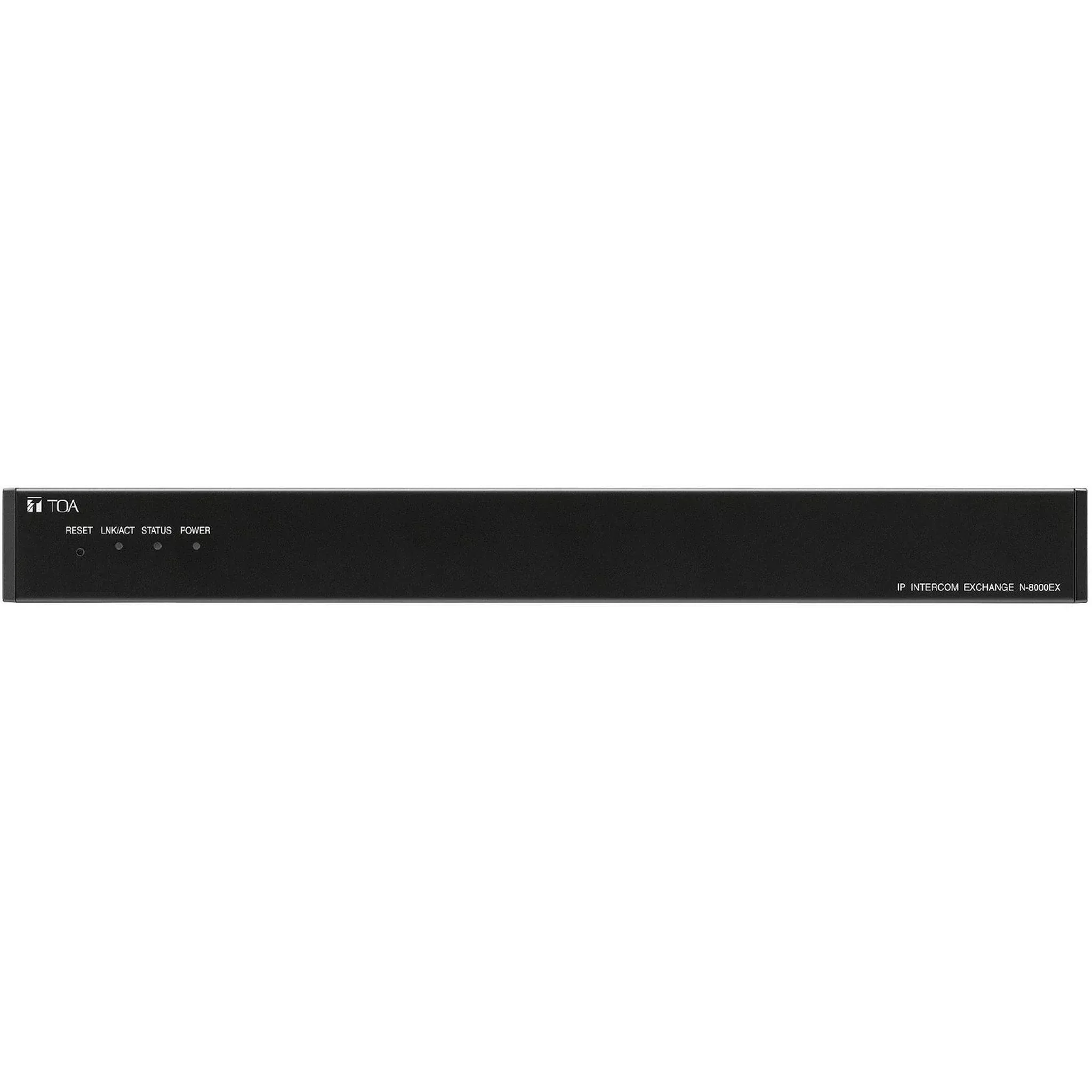

The TOA N-8000EX IP Intercom Exchange Unit for RS-1Series makes use of packet audio technology, enabling the connection of upto 16 N-8000 series 2-wire master or door stations. Both the master and doorstations are wired with the same unshielded twisted pair. Each N-8000EX cansupport up to 8 external voice links and 4 internal voice links, offeringfeatures such as the audio trigger function, two balanced line-level analogaudio output channels, and two relay outputs. This exchange can functionindependently (with a minimum of one master station) or be integrated into anN-8000 IP intercom system through LAN or WAN.
Key Features
- The N-8000EX IP Intercom Exchange utilizes packet audiotechnology to enable the connection of up to 16 N-8000 series 2-wire master ordoor stations.
- Both the master stations and door stations utilize the sameunshielded twisted pair wiring.
- Each N-8000EX can support up to 8 external voice links and 4internal voice links.
- The N-8000EX is equipped with the audio trigger function.
- It includes two balanced line-level analog audio outputchannels and two relay outputs.
- The exchange can be used as a stand-alone system, requiringat least one master station, or it can be connected to an N-8000 IP intercomsystem over LAN or WAN.
- It has a 10/100BaseTX Ethernet network connection.
- The N-8000EX occupies one network node, with a maximum of192 nodes.
- It has a capacity for sixteen (16) stations.
- The speech links include 4 internal and 8 externalconnections.
- Additionally, it features two (2) audio paging outputs at 0dBV and two (2) relay outputs.
Technical Specifications
Power Source
120 V AC, 50/60 Hz
Power Consumption
50 W (at rated), 75 W (max.)
Interface Section for station
Number of lines
16 lines
Number of speech link
Internal
4
External
8
Type of Speech Path
Space sharing/Time Space sharing
Transmission system
2 wire 160 kbps echo canceller transmission system
Signal Level
0 dB* or less
Transmission range
Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Speech method
Simultaneous conversation by way of echo canceller(Hands-free),
Connector
Dedicated connector
Wiring method
1 set of twisted pair cable
Feeding voltage/current
48 V DC, Max. 70 mA
Paging Output
Audio
2 channels Max. 0 dB*, 600 Ω, balanced
Control
2 channels, relay contact output, contact capacity
24 V DC/0.5 A
Connector
Removable terminal block
Network Section
Network I/F
10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol
TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system
Unicast, Multicast
Number of paging destinations
Unicast (max. 16), Multicast (max. 191)
Connector
RJ45 connector
Voice sampling frequency
16 kHz, 8 kHz (controllable on the software)
Quantifying bit number
16-bit
Voice encoding method
Sub-band ADPCM, Cryptosystem
Voice packet loss recovery
Silence insertion
Audio delay time
80 ms, 320 ms (controllable on the software)
Indication
Network LNK/ACT indication, Status lamp, Power-on indicationlamp
Other
Firmware update function, System data hold function, Resetswitch (front panel)
Forced air cooling, Time of day hold facility
Installation Method
Rack, Desk, Surface mount
Operating Temperature
0 Degrees C to +40 Degrees C
Operating Humidity
90 %RH or less (no condensation)
Finish
pre-coated steel plate, black, 30 % gloss
Dimensions
420 (W) x 44.3 (H) x 356 (D) mm
Weight
4.1 kg
Accessory
AC power cord (2 m) …1, CD (for PC setting, maintenance use)…1,
Removable terminal plug (4 pins) …2, Mini-clamp plug (2pins) …20,
Plastic foot …4, Screw for fitting plastic foot …4,
Rack mounting bracket …2, Screw for rack mounting …4,
Wall mounting bracket …2, Screw for mounting bracket …8,
Screw for wall mounting …4
