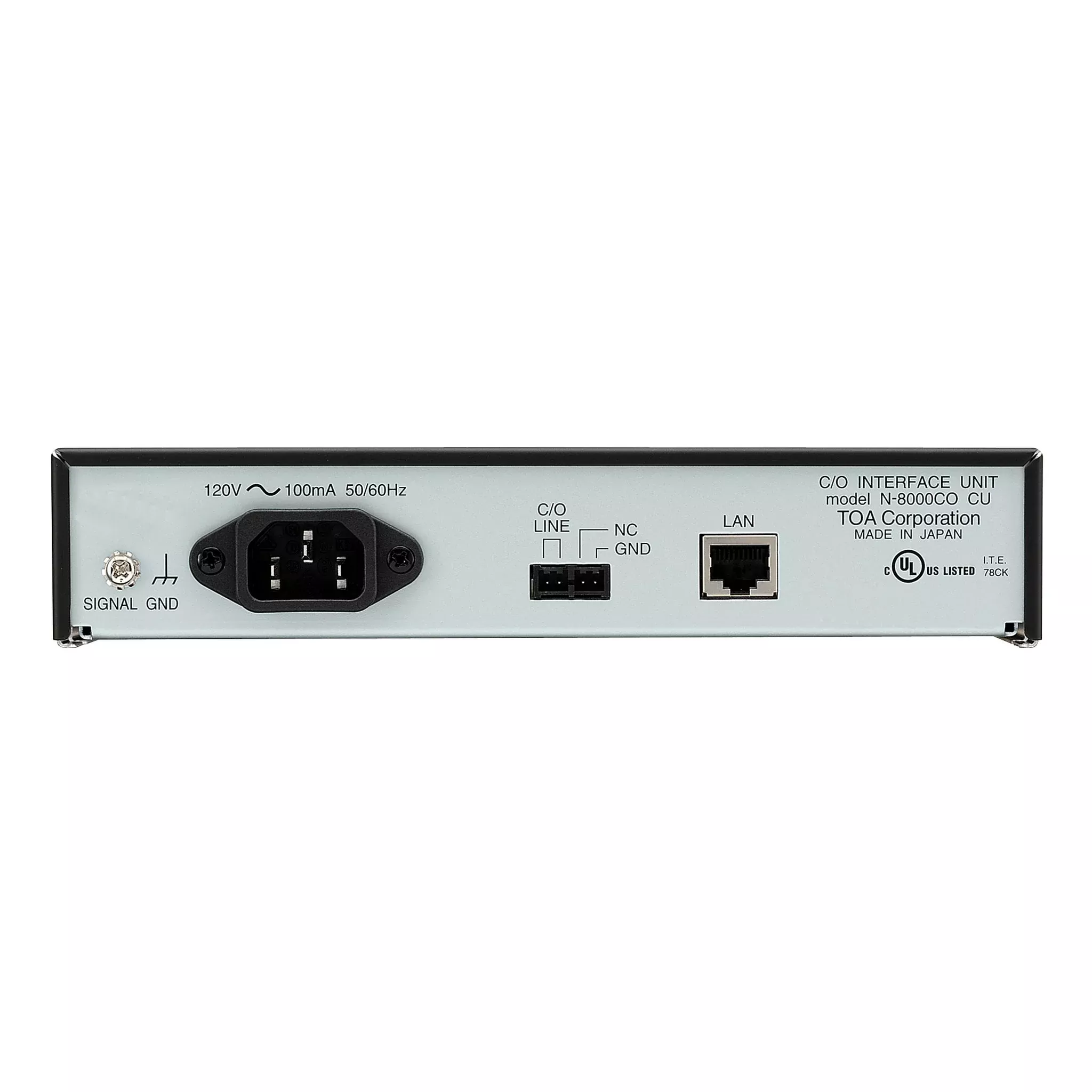

The TOA N-8000CO IP Intercom C/O Telephone Line InterfaceUnit serves as a C/O interface unit within TOA’s packet intercom system,incorporating packet audio technology that is compatible with IP networks.Featuring an analog central office line circuit, this unit enables intercomstations to establish telephone line calls. When connected to the LAN, itfacilitates paging calls via analog subscriber lines and offers control overdevices linked to the N-8000MI and N-8000DI. The N-8000CO can be mounted in anEIA equipment rack (1U size) using an optional rack mounting bracket or placedon a wall with a wall mounting bracket (optional). Please be aware that therack mount kit is available separately. For rack mounting, utilize TOAMB-15B-BK (one unit per rack space) or MB-15B-J (two units per rack space).
Key Features
- The N-8000CO is a C/O interface unit specifically designedfor TOA’s packet intercom system, utilizing packet audio technology.
- It features an analog central office line circuit, enablingintercom stations to place and receive calls through the telephone line.
- By connecting the unit to the LAN, paging calls can be madethrough analog subscriber lines and equipment connected to N-8000MI andN-8000DI can be controlled.
- The N-8000CO can be easily mounted in an EIA equipment rack(1U size) using an optional rack mounting bracket or on a wall with an optionalwall mounting bracket.
- Rack mount kit is not included, but TOA MB-15B-BK (one unitper rack space) or MB-15B-J (two units per rack space) can be used.
- It has a 10/100BaseTX Ethernet network connection forseamless connectivity.
- The unit occupies one network node, with a maximum of 191nodes at least one node must be a master station or N-8000/8010EX exchange.
- The analog central office line circuit allows stations toeasily make and receive calls through the telephone line.
- The N-8000CO is a versatile unit that enhances communicationcapabilities within the intercom system.
- It is a reliable and efficient solution for integratinganalog central office line circuits into the intercom network.
Technical Specifications
Power Source
120 V AC, 50/60 Hz
Power Consumption
7 W (max.)
C/O Interface
Public Switched telephone networks
Number of lines
1 line
Selective signal type
DTMF signal
Signal system
Compatible with loop start signaling
Wiring method
1 pair of twisted pair cables
Network Section
Network I/F
10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol
TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system
Unicast, Multicast
Number of paging destinations
Unicast (max. 8), Multicast (max. 191)
Connector
RJ45 connector
Voice sampling frequency
16 kHz, 8 kHz (controllable on the software)
Quantifying bit number
16-bit
Voice encoding method
Sub-band ADPCM, Cryptosystem
Voice packet loss recovery
Silence insertion
Audio delay time
80 ms, 320 ms (controllable on the software)
Indication
Network LNK/ACT indication, Status lamp, Power-on indicationlamp,
Line in-use lamp
Other
Firmware update function, System data hold function, Time ofday hold facility,
Reset switch (front panel)
Setting Method
Rack, Desk, Surface mount
Operating Temperature
0 Degrees C to +40 Degrees C (32 Degrees F to 104 Degrees F)
Operating Humidity
90 %RH or less (no condensation)
Finish
pre-coated steel plate, black, 30 % gloss
Dimensions
210 (W) x 44.3 (H) x 267 (D) mm (8.27” x 1.74” x 10.51”)
Weight
1.7 kg (3.75 lb)
Accessory
Power cord (2 m (6.56 ft)) …1, CD (for PC setting,maintenance use) …1,
Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw forfitting plastic foot …4
Option
Rack mounting bracket
MB-15B-BK (for rack mounting one N-8000CO unit)
MB-15B-J (for rack mounting two N-8000CO units)
Wall mounting bracket
YC-850
