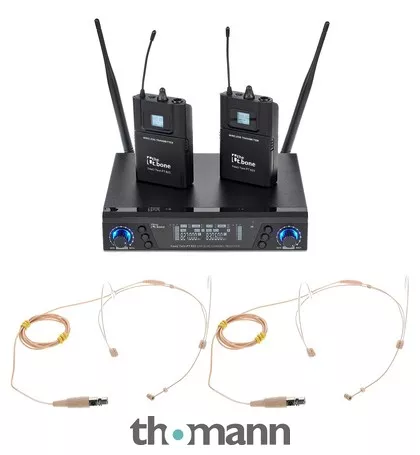

Bundle offer comprising
the t.bone freeU Twin PT 823
2-Channel UHF Wireless System
- With pocket transmitter and guitar cable for instrument applications
- Frequency band: 823 – 832 MHz
- Frequency range: 50 – 16,000 kHz
- Ten pre-programmed frequency groups with ten available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 30 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 80 kHz
- Modulation type: F3E
- Two BNC connectors for antennas
- Two XLR outputs and one jack output
- Operates with a 12 V, 1 A DC power supply, centre positive
- Transmitter housing: Plastic
- LC display
- each transmitter works with 2x AA Batteries or rechargeable batteries (not included)
- Housing: 9.5″, 1 U
- Includes guitar cables, antennas, EU power supply and rack kit for the installation of a 1 U receiver
- Suitable antenna converter: 177448 (not included)
Note: A maximum of two systems (four channels in total) can be operated simultaneously in this frequency band.
2x the t.bone HeadmiKe – D AKG
Headset Microphone
- Lightweight condenser headset microphone
- Two earhooks
- Left/right adjustable
- Polar pattern: Kidney
- Frequency range: 50 – 20000 Hz
- Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
- Sound pressure level: 115 dB
- Impedance: 750 Ohm
- 3-Pin mini XLR connector suitable for AKG Bodypack transmitter
- Cable length: approx. 120 cm
- Colour: Beige
- Includes cable clip
- Replacement windscreen: Art. 355914 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2018
- Item number445926
- Sales Unit1 piece(s)
- Headset Cannels 2
- Transmission Format analog
- Frequency 823 MHz – 832 MHz
- Receiver Type Stationary
- Polar Pattern Cardioid
- Earset 2 Ears
- Mountable Antenna BNC
- Charging System No
- Integrated battery No
- Dante No
- DiversityYes
- Capsule TypeCondenser
- Mic Model349293
- Microphone ColourBeige
- Transmission power in mW30 mW
- Usable Frequecies100
- Switching Bandwidth in MHz9 MHz
- Frequency DisplayYes
- Automatic Frequency SearchYes
- Battery Power DisplayYes
- RackkitYes
- OutputXLR
- Receiver Width in mm210 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm200 mm
- Receiver Weight in Kg0,9 kg
