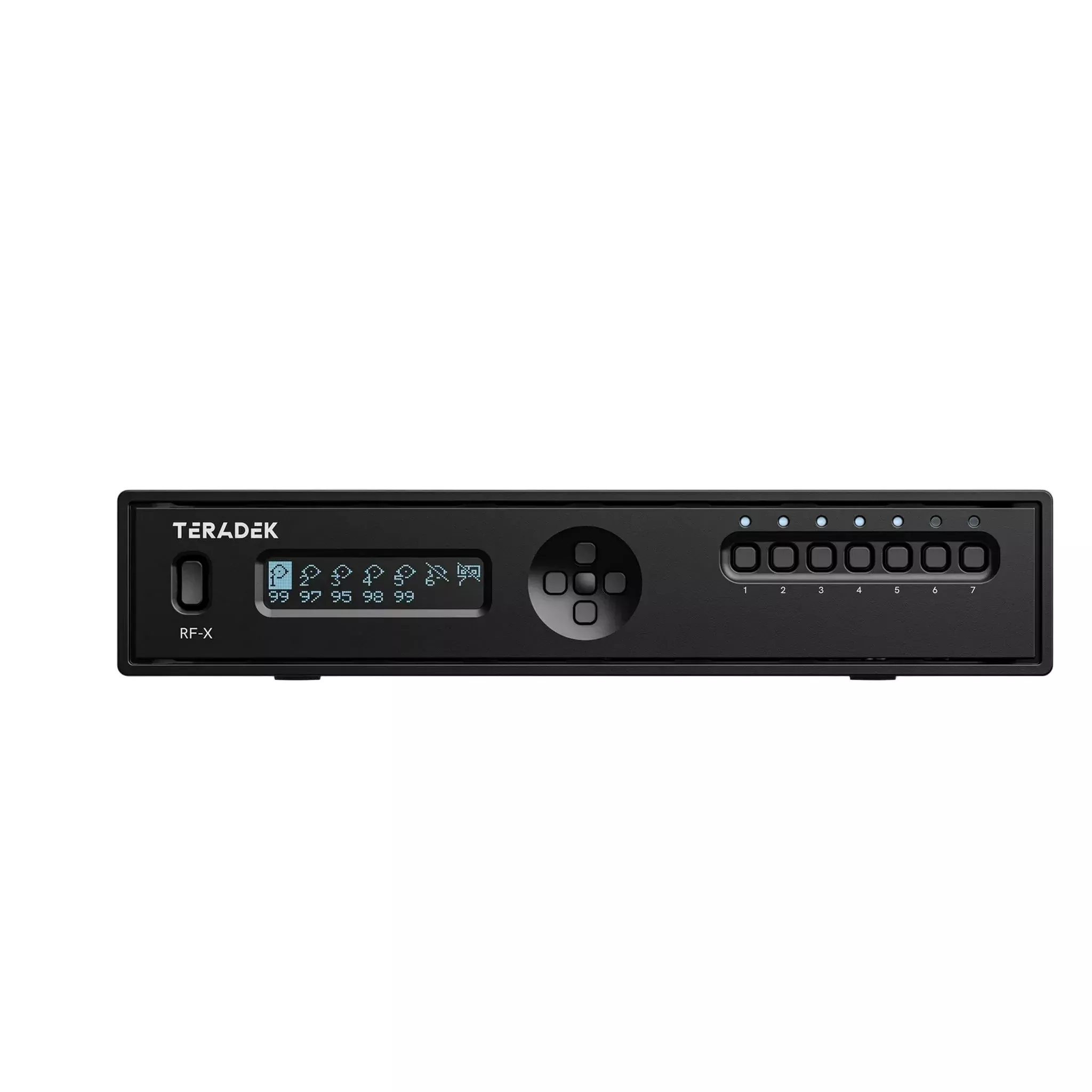

Teradek RF-X Auto-Switcher for Bolt and Ranger Receivers
Teradek RF-X is an auto-switching video signal management device designed for professional wireless video environments. It enables automatic selection of the strongest available video signal for broadcast and production teams, supporting uninterrupted SDI signal delivery. This makes it ideal for live productions where maintaining a continuous video feed is critical.
The system continuously monitors multiple connected receivers and dynamically switches between them without user intervention. It operates over hardline SDI connections and provides a single consolidated output for downstream equipment.
The device supports reliable video delivery in complex RF conditions such as live events and mobile productions. It is used to maintain consistent signal integrity as cameras and environments change.
Key Features
- Automatic Signal Switching: Selects the strongest available video signal in real time
- Multi-Receiver Support: Monitors up to six connected Bolt or Ranger receivers
- Uninterrupted Output: Delivers a single continuous SDI output
- Zero Delay Operation: Performs switching without introducing latency
- Fiber Linking Capability: Supports linking multiple units over fiber connections
Technical Specifications
Product Type
Auto-Switching Video Signal Manager
Supported Receivers
Bolt RX series
Ranger RX series
Maximum Receivers Supported
Up to six
Video Output
12G-SDI
Switching Method
Automatic signal strength selection
Linking Interface
SFP fiber port
Application
Broadcast
Live events
Cine production
What’s in the Box
(1) RF-X Auto-Switcher
(1) 36W 2pin to AC Power PSU
