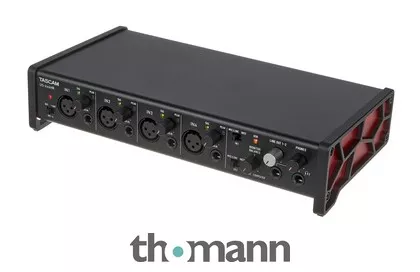

4-Channel USB 2.0 Audio Interface
- 24 Bit / 192 kHz
- 4 Microphone inputs with Ultra HDDA microphone preamps with low self-noise (Input: -125 dBu): XLR, balanced
- 4 Line inputs: 6.3 mm jack, balanced
- 4 Line outputs: 6.3 mm jack, balanced
- 2 Stereo headphone outputs: 6.3 mm jack
- MIDI I / O
- Input gain range: 56 dB
- Jack inputs 1 + 2 can be switched to instrument
- Switchable +48 V phantom power
- Separate level controls for line and headphone output
- Latency-free monitoring
- USB Audio Compliance 2.0 for connection to iOS devices
- Stand alone function
- Aluminum housing
- Power supply via USB (the supplied power supply unit is required for iPhone / iPad and phantom power)
- For PC / MAC
- Dimensions (W x H x D): 296 × 65 × 160 mm
- Weight: 1.6 kg
- Includes power supply, Cubase LE, Cubasis LE3, IK Multimedia SampleTank 4 SE, Antares Auto-Tune Unlimited (3 months free use)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2020
- Item number506523
- Sales Unit1 piece(s)
- Recording / Playback Channels 4×4
- Number of Mic Inputs 4
- Number of Line Inputs 4
- Instrument Inputs 4
- Number of Line Outs 4
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface Yes
- Word Clock 0
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply Yes
- USB Version 2.0
- Width 296 mm
- Depth 160 mm
- Height 65 mm
- Connection Format USB port Type C
- Included in deliveryPower Supply, USB-A to USB-C Cable
- Zero latency monitoringYes
