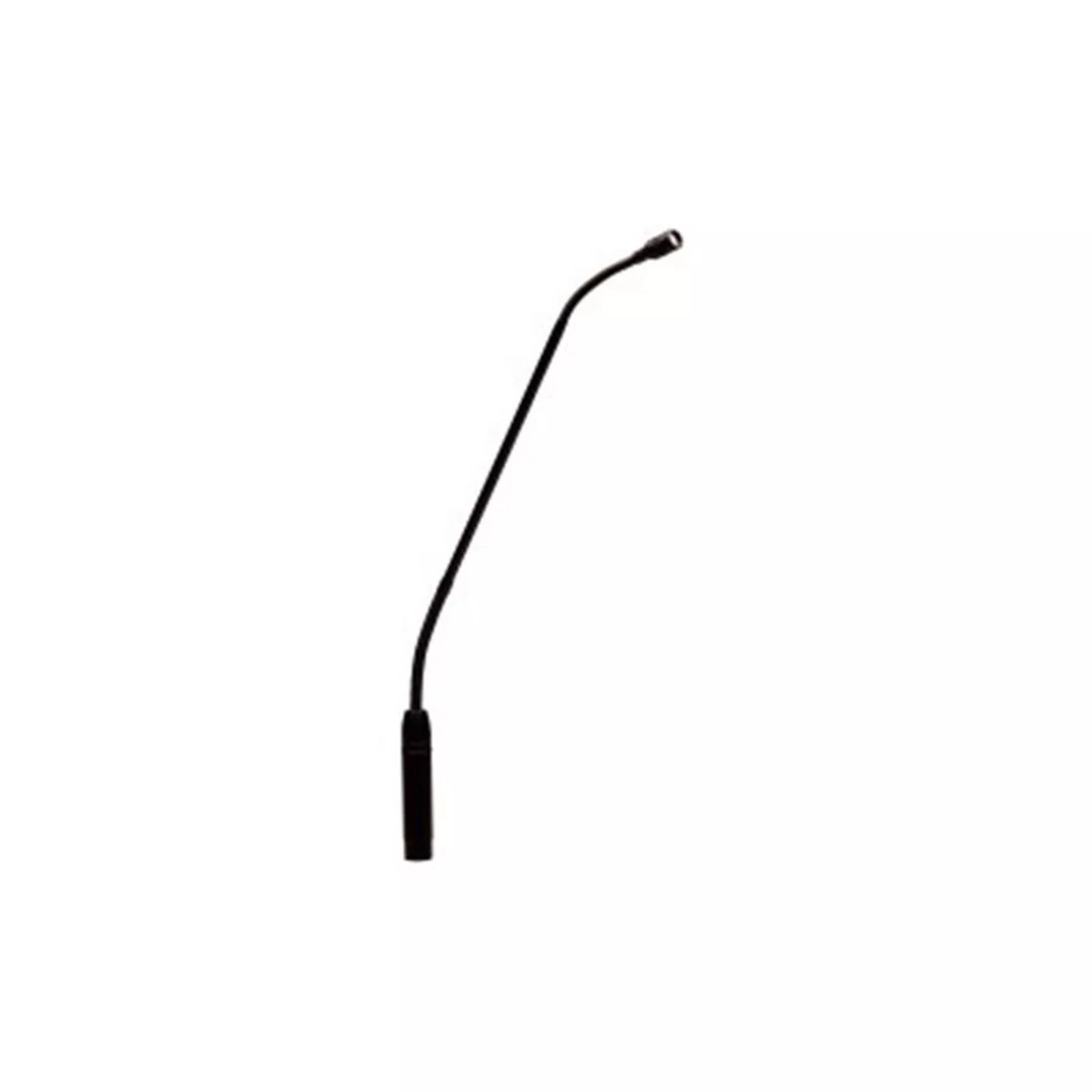

The Superlux E322 Cardioid Condenser Gooseneck Microphone is a professional-grade solution designed to capture clear, crisp speech invarious environments, including boardrooms, meeting rooms, houses of worship,and more.
This microphone features a cardioid polar pattern, whichfocuses on the speaker’s voice while minimizing unwanted background noise. Thelarge 9.7mm diaphragm delivers rich, natural audio reproduction, ensuring yourvoice is heard clearly and accurately.
The Superlux E322 Cardioid Condenser Gooseneck Microphone alsoboasts RF shielding to eliminate electromagnetic interference for clean sound,and a high-pass filter to reduce low-frequency rumble. Some models (E322LS& MS) include an on/off switch with an LED indicator for easy microphonecontrol.
The 24-inch gooseneck provides flexible positioning foroptimal voice capture, while the balanced XLR output seamlessly connects toprofessional audio equipment.A shockmount and windscreen are included to minimize handling noise and plosives,ensuring exceptional audio quality.
Available in black finish, the Superlux E322 CardioidCondenser Gooseneck Microphone is a versatile solution that complements anysetting and application, making it ideal for conference rooms, boardrooms,courtrooms, council chambers, places of worship, and simultaneous translationenvironments.
Key Features
- Cardioid pickup pattern
- 9.7mm back electret condenser microphone
- RF interference protection
- Built-in high-pass filter (E323L & M models)
- Equipped with On/Off switch and LED indicator (E322LS & MSmodels)
- Total length of 24 inches
- Balanced preamp output for optimal audio quality
- Includes shock mount for reduced handling noise
- Comes with compression-lock flange mount for secureinstallation
- Includes foam windscreen for reducing wind noise
- HM-22 Shock Mount and HM-23 Flange Mount accessories included
Technical Specifications
Element
9.7mm Back Electret Condenser
Polar Pattern
Cardioid
Frequency Response
40—20,000 Hz
Sensitivity
-40dBV/Pa (10mV/Pa) 1 Pa = 94dB SPL
Equivalent Noise
<24dB (A-weighted)
Dynamic Range
103dB (1000-ohm load)
Minimum Load Impedance
2000 Ohms
Rated Impedance
600 Ohms
Max SPL
127dB (THD ≤ 1% 1kHz)
Low Frequency Roll-off
100Hz, 12dB/OCT (E322L & E322M)
Phantom Power Requirements
9 to 48 VDC
Finish
Black
Connector
3 pin Male XLR
Weight
E322L 7.76oz.
