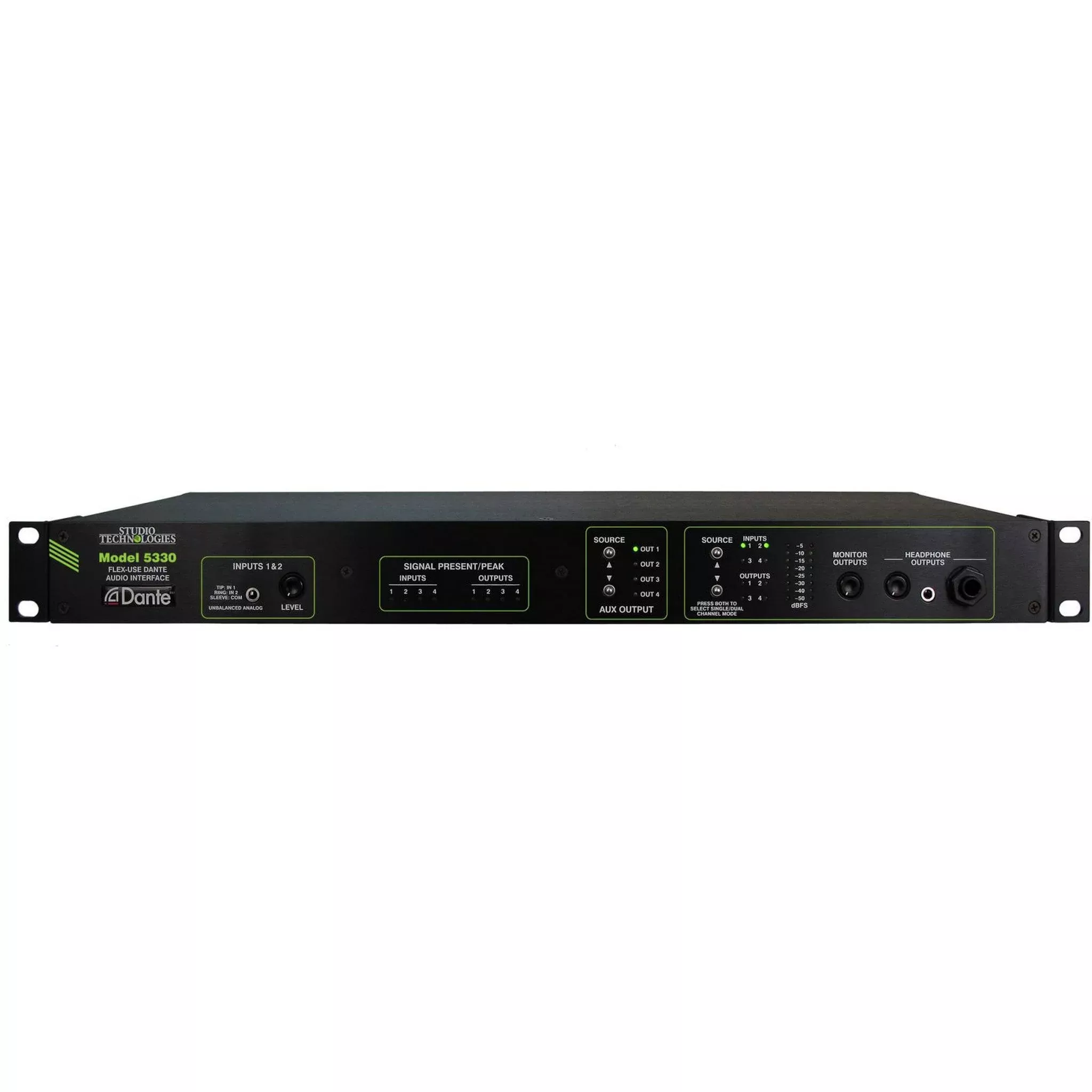

Studio Technologies Model 5330 Flex-Use Dante Audio Interface
Studio Technologies Model 5330 is a fully professionalproduct that offers the audio quality, features, and reliability required by24-hour commercial applications. Four inputs, two on the front panel and two onthe back, allow simple interfacing with a variety of unbalanced and balancedline-level analog sources. The 2-channel (stereo) input on the front panel isoptimized for use with portable electronics that provide “-10” unbalanced audiosources. Using a rotary control, users can adjust the sensitivity of the inputcircuitry to match the level of the source. Two additional inputs are providedon the back panel and meet the requirements of professional audio equipment
Four digital audio channels enter the Model 5330 via itsDante interface. These general-purpose audio channels are then converted fromthe digital domain to the analog domain. Four 3-pin male XLR connectors,located on the unit’s back panel, provide balanced +4 dBu-nominal line-levelanalog outputs. An auxiliary output, also located on the back panel, provides afifth “professional-quality” output.
The monitor section allows the user to select any audioinput or output signal for visual and aural observation. Two 8-segment LEDsmeters, calibrated in dBFS, allow precise monitoring of signal levels as theyexist in the digital domain. A 2-channel (stereo) headphone output allowsconnection of headphones or ear buds that use either 3.5 mm or 1/4-inch jacks.A separate line-level analog monitor output allows connection to inputs onamplified speakers or power amplifiers.
An Ethernet connection is all that’s required to make theModel 5330 part of a sophisticated networked audio system.
Key Features
- Dante audio-over-Ethernet technology
- Four analog line inputs to Dante outputs
- Four Dante inputs to balanced line-level outputs
- Monitoring with meters, headphone and line outputs
- Excellent audio quality
- DDM and AES67 support
- 100-240 V, 50/60 Hz mains powered
- Standard connectors, lightweight, 1U rack mounting
Technical Specifications
Network Audio Technology
Type
Dante audio-over-Ethernet
AES67-2013 Support
yes
Dante Domain Manager (DDM) Support
yes
Bit Depth
up to 24
Sample Rates
44.1 and 48 kHz
Number of Transmitter (Output) Channels
4
Number of Receiver (Input) Channels
4
Dante Audio Flows
4; 2 transmitter, 2 receiver
Network Interface
Type
twisted-pair Ethernet
Data Rate
100 Mb/s (10 Mb/s not supported; 1000 Mb/s “GigE”
Ethernet not supported unless falls back to 100 Mb/s)
Inputs 1 and 2
Compatibility
unbalanced line-level sources
Type
analog, unbalanced, capacitor coupled
Impedance
10 k ohms, nominal
Nominal Level
-10 dBu, adjustable with input level control
Maximum Level
depends on setting of the input level control
Dynamic Range
>116 dB, 0 dB gain, A-weighted
Distortion (THD+N)
<0.001% (-101 dB) at -1 dBFS, 40 dB gain, 22 kHzbandwidth
Frequency Response
+0.0/-0.5 dB, 22 Hz to 22 kHz
Status LEDs
2, displays signal present/peak
Inputs 3 and 4
Compatibility
balanced or unbalanced line-level sources
Type
analog, electronically balanced, capacitor coupled
Impedance
20 k ohms, nominal
Nominal Level
+4 dBu (results in Dante output level of -20 dBFS)
Maximum Level
+24 dBu (results in Dante output level of 0 dBFS)
Dynamic Range
>116 dB, 0 dB gain, A-weighted
Distortion (THD+N)
<0.001% (-101 dB) at -1 dBFS, 40 dB gain, 22 kHzbandwidth
Frequency Response
+0.0/-0.5 dB, 22 Hz to 22 kHz
Status LEDs
2, displays signal present/peak
Main, Auxiliary, and Monitor Outputs
Type
Analog, electronically balanced, capacitor coupled, intendedto drive balanced or unbalanced loads of 2 k ohms or greater
Source Impedance
200 ohms
Nominal Level – Main and Auxiliary
+4 dBu, reference -20 dBFS on Dante input
Nominal Level – Monitor
0 dBu, reference -20 dBFS on Dante input
Maximum Level
+24 dBu with 0 dBFS on Dante input
Dynamic Range
>119 dB, A-weighted
Distortion (THD+N)
0.0012% (-99 dB), measured at -1 dBFS, 22 kHz bandwidth
Frequency Response
±0.1 dB, 20 Hz to 20 kHz
Status LEDs
4, displays signal present/peak
Audio Monitor
Source
inputs 1-4 or main outputs 1-4, selectable as monaural orstereo
Level Meters
2, 8-segment LED
Headphone Output
Type
stereo (dual-channel)
Compatibility
intended for connection to stereo headphones with nominalimpedance of 100 ohms or greater
Maximum Output Voltage
4.9 volts RMS, 1 kHz, 150-ohm load
Frequency Response
+0/-1.4 dB, 20 Hz to 20 kHz
Distortion (THD+N)
0.005%
Dynamic Range
>100 dB
Connectors
Inputs 1 and 2
3-conductor 3.5 mm jack
Inputs 3 and 4
3-pin female XLR
Main, Auxiliary, and Monitor Outputs
3-pin male XLR
Headphone Output
3-conductor 3.5 mm jack and 3-conductor 1/4-inch jack
Ethernet
RJ45 receptacle
USB
type A receptacle (used only for application firmwareupdates)
AC Mains
3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)
Power Source
AC Mains
100 to 240 volts, +10/-15%, 50/60 Hz, 15 watts maximum
Dimensions – Overall
19.0 inches wide – 1.72 x 7.8 x 8.2” overall
Mounting
one space (1U) in a standard 19-inch rack
