SpoolMaster SMP-WMC-16-NC 16-Inch Wire Measuring and Coiling System

SpoolMaster SMP-WMC-16-NC 16-Inch Wire Measuring and Coiling System

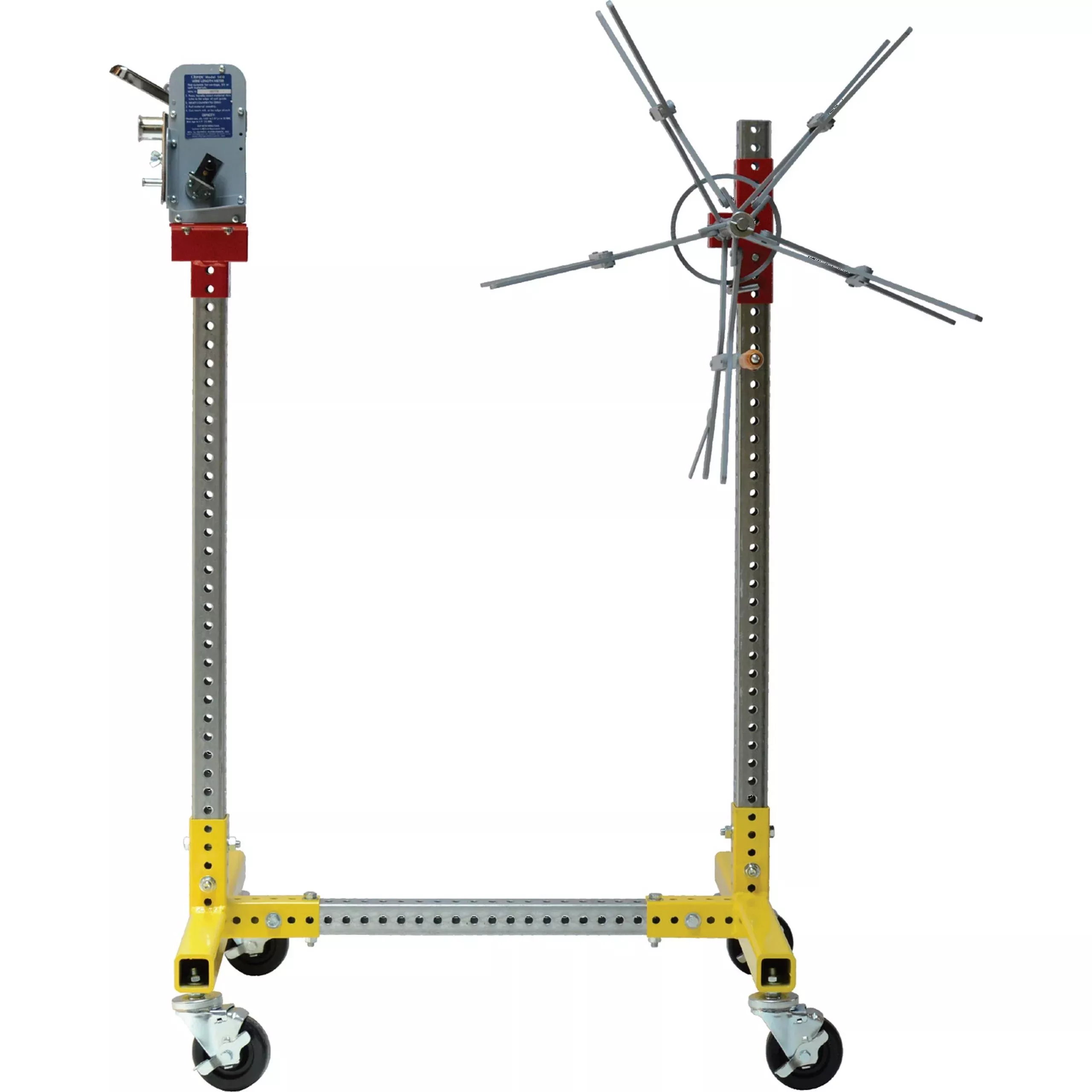

The SpoolMaster SMP-WMC-16-NC is a measuring and coilingsystem for wire, rope and other flexible materials ranging from 1/64” to 7/8”in diameter. The heavy-duty steel base and uprights sit on 4” diameter lockingswivel casters for easy movement. Telescoping brackets allow the height of boththe coiler and the measurer to be easily adjusted using the supplied gravitypins to lock them in place. This item includes an Imperial counter(feet/inches) but no cutter (blade) at the end of the counter.

This units’ measurer stand features an imperial mechanicalcounter that adds or subtracts in inches and feet, and resets to zero with oneturn of the reset knob. There is space for adding your own optional cutterallowing for the measured material to be easily cut at an accurate length.

The Zinc plated coiler creates a coil with a 15” insidediameter which can be easily off loaded by collapsing the front of the unit.Coiler comes equipped with a turning handle and tab for locking material inplace on the coiler.

Key Features

• Sold as one (1) SMP-WMC-16-NC system (spool & caddy soldseparately)
• Available with Imperial (inches/feet) counter
• Accommodates flexible materials from 1/64” to 7/8” diameter
• Counter is not compatible with MC materials
• Heavy-Duty welded steel base
• Galvanized steel uprights
• Zinc Plated Coiler
• Locking swivel casters allows system to be moved as needed
• Powder coated finish on base & coiler/measurer mountingbrackets
• Outside dimensions: 44” H x 28” W x 32” L (completed system)
• Product weight: 94 lbs. (completed system)
• Maximum weight capacity: 100 lbs. of coiled material
• Coil inside diameter: 15”
• Made in the USA

Technical Specifications

Coil inside diameter
15”
Measures flexible materials from
1/64” – 7/8” diameter
Product weight
94 lbs. (completed system)
Dimensions
32” L x 28” W x 48”H
