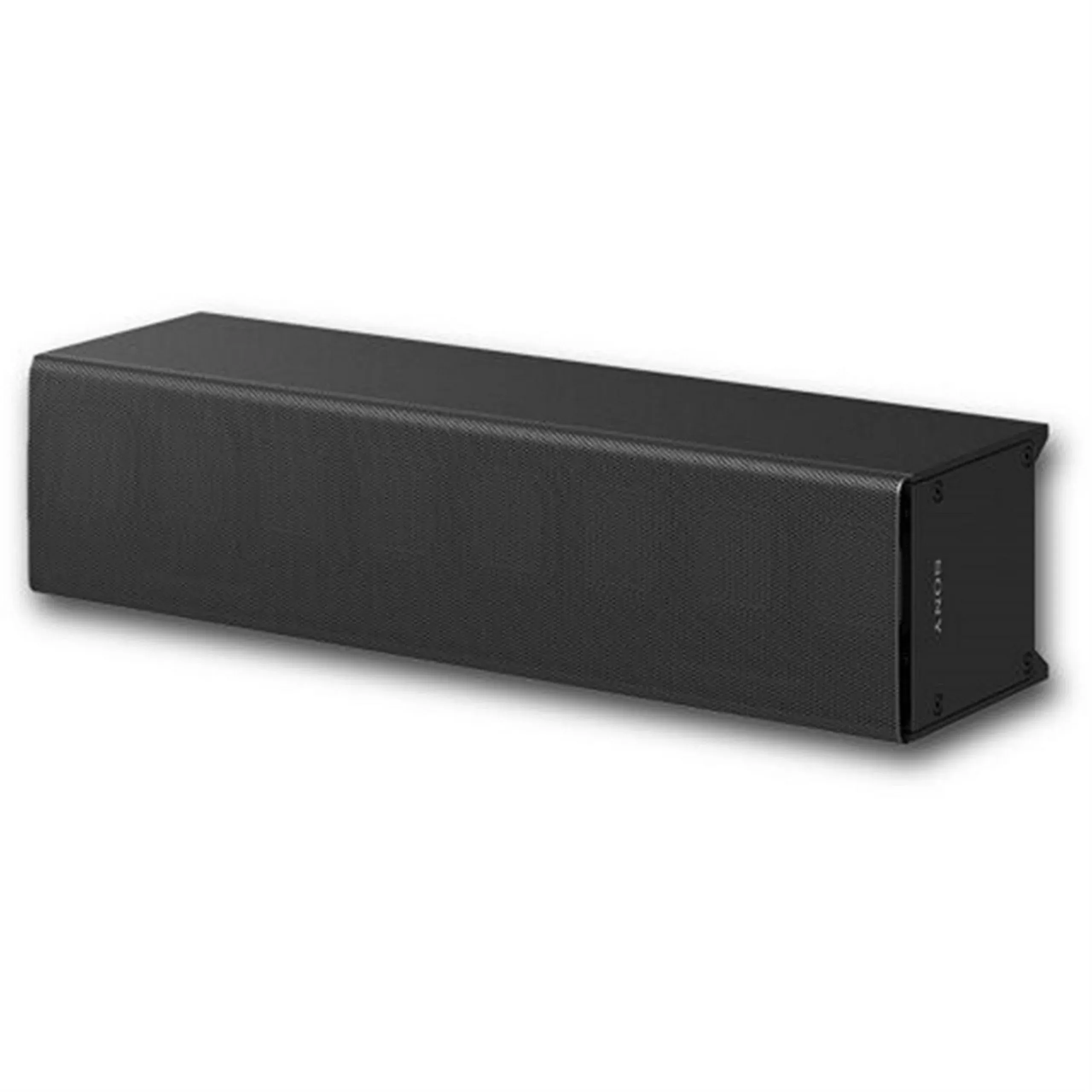

Sony SLS-1A Powered Line-Array Speaker
Rich, powerful sound with large display solutions
Give every audience member a rich, powerful sound experiencein corporate and educational environments. The SLS-1A is a compact, uniquelyversatile line-array speaker system that offers an ideal audio reinforcementsolution in conjunction with large display solutions including our BRAVIAprofessional displays, projectors, and Crystal LED video walls.
Clear, low-distortion full-range sound
The SLS-1A features eight full-range driver units mounted ina line array configuration, supplemented by a powerful integrated multi-channelamplification system. Sound is delivered with remarkable richness, accuracy andpresence in any listening environment.
Compact size, flexible installation
The SLS-1A offers an ideal sound solution in a wide range oflistening environments. The compact line-array unit can be discreetly mountedto suit any size or shape of room. Multiple SLS-A1 units can be mountedhorizontally or vertically, and ‘cascaded’ via a single Ethernet cable as partof a Dante digital audio network to simplify wiring in large-scale AVinstallations.
Compact yet powerful
Rigid aluminum body measuring just 92 x 384 x 110*mm housesspeakers and amplification, delivering high sound pressure levels from acompact unit.
Flexible mounting and expansion options
Mount horizontally or vertically. Easily link multiple unitsfor larger scale sound installations.
Flexible beam setting
Adjust sound settings using hardware switches, third partyEASE Focus software or Sony’s PC app that controls beam steering, spread andEQ.
On-screen center sound localization
The SLS-1A is an ideal sound reinforcement partner for largedisplay installations including our BRAVIA 100” 4K professional display,projectors and Sony’s Crystal LED system. In contrast with normal point-sourcespeakers, the SLS-1A offers a large ‘sweet spot’ that can be accuratelycontrolled for clear, consistent sound over a wide listening area in any venue -from corporate showrooms, entrance lobbies and retail spaces to lecturetheatres and auditoriums. The finely controlled beam is also particularlysuited to providing even sound coverage in venues like auditoriums with a rakedfloor.
Better sound in any room
Unlike standard speakers, the line array design of theSLS-1A minimizes sound reflections from ceilings, walls, and floors. Audiencescan hear uniform, clearly directed sound with less attenuation over longdistances, independent of room size or shape.
Key Features
- Clear, low-distortion full-range sound
- Flat and square diaphragm
- Magnetic fluid speaker
- Integrated amplification
- Compact size, flexible installation
- On-screen center sound localization
- Clear, controllable sound in every environment
Technical Specifications
System
Frequency Range
80Hz-20kHz
*Frequency characteristic measured at anechoic chamber
Horizontal Dispersion
200 degrees
*1 – 4k average, -6 dB *At Vertical style (VerticalDispersion at Horizontal style
Vertical Opening Angles
Software Adjustable
1 Module: Max 40 degrees
2 Modules: Max 50 degrees
3 Modules: Max 60 degrees
4 Modules: Max 70 degrees
5 Modules: Max 80 degrees
6 Modules: Max 90 degrees
*At Vertical style (Vertical Opening Angles at Horizontalstyle)
Vertical Beam Steering Angles
1 Module: 20 degrees
2 Modules: 20 degrees
3 Modules: 30 degrees
4 Modules: 30 degrees
5 Modules: 40 degrees
6 Modules: 40 degrees
*At Vertical style (Vertical Opening Angles at Horizontalstyle)
Maximum SPL (1 m)
1 Module: 105 dB (peak 112 dB)
2 Modules: 111 dB (peak 118 dB)
3 Modules: 115 dB (peak 122 dB)
4 Modules: 117 dB (peak 124 dB)
5 Modules: 119 dB (peak 126 dB)
6 Modules: 121 dB (peak 128 dB)
* Max SPL calculated based on free-field sensitivity, andwithout beam steering, spreading applied.
Peak SPL (30 m)
1 Module 97 dB
2 Modules: 103 dB
3 Modules: 107 dB
4 Modules: 109 dB
5 Modules: 111 dB
6 Modules: 113dB
* Assumption signal loss at 30 m and 15 dB
Typical Usable Throw Distance
1 Module: 4m
2 Modules: 8m
3 Modules: 12m
4 Modules: 16m
5 Modules: 20m
6 Modules: 25m
＊Typical Maximum Usable Throw Distance includesconsiderations for reverberation and speech intelligibility
Low-frequency Beam Control Limit
1 Module: 1.25 kHz
2 Modules: 630 Hz
3 Modules: 400 Hz
4 Modules: 315 Hz
5 Modules: 250 Hz
6 Modules: 200 Hz
Enclosure type
Bass reflex type
Driver
Flat and Square speaker unit, 35 mm x 35 mm (1 7/16 in × 17/16 in) Full range x 8
Magnetic shielding
No
Dust and water resistant
No
Amplifier Channels / Rated Power
Power Output (rated)
10 W x 8 channels (at 6 ohms, 1 kHz, 1 % THD)
Amplifier type
Class-D
Protection circuit
Speaker Processing
Clipping limit
Amplifier
Terminal shutdown/Overheat protection/Over voltageprotection/Under voltage lock out/DC protection
Power
Overload protection/Overheat protection
Electric performance
Power (AC) Voltage
Universal
AC 100 V – 240 V, 50 Hz/60 Hz
Power (AC) Connector
IEC60320-C7
Power Consumption
87 Ｗ/Standby 7W (Dante IN or Dante OUT: 1port), 8 W (Dante INand Dante OUT: 2ports)
Input/Output
Analog Audio Input
Euro type terminal block (Pitch 3.81 mm, 3-pin, Green)
Analog Audio Maximum Input Level (4 stages)
Balance connection
+8.2 dBu(2Vrms)/+12 dBu/+18 dBu/+24 dBu
Unbalance connection
+8.2 dBu(2Vrms)/+12 dBu/+18 dBu
Input Sensitivity (4 stages) Balance connection: +8.2 dBu(2Vrms)/+12 dBu/+18 dBu/+24 dBu
Unbalance connection
+8.2 dBu(2 Vrms)/+12 dBu/+18 dBu
Input Impedance
Balance connection
94 kΩ / Unbalance connection: 47 kΩ
Digital Audio Inputs
1-channel of Dante digital audio network (RJ-45)
*8-chnannel of Dante digital audio network (RJ-45) ispossible
Digital Audio Outputs
1-channel of Dante digital audio network (RJ-45) *8-channelof Dante digital audio network (RJ-45) is possible
Power (DC) Input/Output
Euro type terminal block (Pitch 5.08 mm, 4-pin, Black/Green)
DIP Switch
Select preset beam setting and Dante input channel (1ch/8ch)
(Integrated DSP)
A/D and D/A Converters
24-bit, 96 kHz
FIR Filter Support
1024 tap @ 96 kHz
Audio Latency
13 mS
Physical
Enclosure
Cabinet: Extruded aluminum (powder coated)
Side/Back panel: Plastic
Grille
Punching metal steel plate (Painted)
Indicators
Status, Signal, LAN
Operating Temperature Range (Ambient)
0 Degrees Celsius – 40 Degrees Celsius
Cooling System
Cooling is passive only
Environmental
Indoor only
Install
Integrated speaker brackets; allows horizontal yaw to0-degree or 10-degree direction
Dimensions (w x h x d) (approx.)
384 mm x 92 mm x 100 mm (15 1/8 in x 3 5/8 in x 4 in)(without speaker grill)
384 mm x 92 mm x 110 mm (15 1/8 in x 3 5/8 in x 4 3/8 in)(with speaker grill)
Mass (approx.)
4 kg (8 lb 14 oz) (with speaker grill)
Power (DC) Input/Output
Euro type terminal block (Pitch 5.08 mm, 4-pin, Black/Green)
