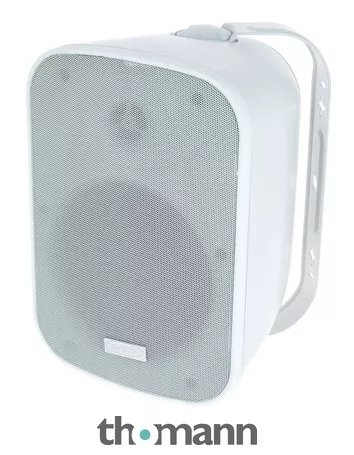

6.5″ Installation Speaker
- With Bass Reflect Sound System
- Elegant design
- OBE technology (Optimal Bass Enhancement Radiator) ensures deep and clear bass thanks to passive diaphragm
- IPX66 weatherproof
- Speaker configuration: 1″ tweeter and 6.5″ bass speaker
- Impedance: 8 Ohm
- Transformer for 100 V / 70 V (5 / 10 / 20 / 40 W)
- Power: 40 W RMS / 80 W peak
- Maximum level: 105 dB
- Frequency range: 90 – 20,000 Hz
- Connection: plug-in screw terminal
- Housing material: ABS plastic
- Dimensions (H x W x D): 285 x 200 x 195 mm
- Weight: 3.45 kg
- Colour: White
- Includes mounting bracket
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2021
- Item number508923
- Sales Unit1 piece(s)
- Manufacturers Information Power Handling 80 W
- Impedance 8 Ohms
- Number of Woofers 1
- Woofers in Inch 6″
- Colour White
- Width 200 mm
- Depth in mm 195 mm
- Height 285 mm
- Weight in kg 3,45 kg
- Monitor Angle No
- IP Class 66
- RMS Power40 W
- Depth195 mm
- TypePassive
- FlyableNo
- Maximal SPL86 dB
- Weight3 kg
- Number of Mid-Tone Speakers0
- Mid-Tone Speakers in Inchnone
- Woofer in inch6″
- Number of HT-Speakers1
- Number of Ways2-way
- HT-Speakers in Inch1″
- Stand FlangeNo
- Sound Pressure in dB86 dB
- TransformerYes
- 100V power tappings40/20/10/5
- ConnectorPhoenix Clamp
- Cabinet/IntallationCabinet
- Housing MaterialPlastic
- IP Classification66
- Selling per Piece/PairPiece
- Wall MountYes
- ConstructionStandard Cabinet
- Frequency Range (-3dB) from90 Hz
- Frequency Range (-3dB) to20000 Hz
- InputPhönix Socket
- OutputPhönix Sockets
- Horizontal Beam Angle120 °
- Vertical Beam Angle100 °
