Simplified MFG EX1L 4K HDMI/Cat6, 18Gbps Extender

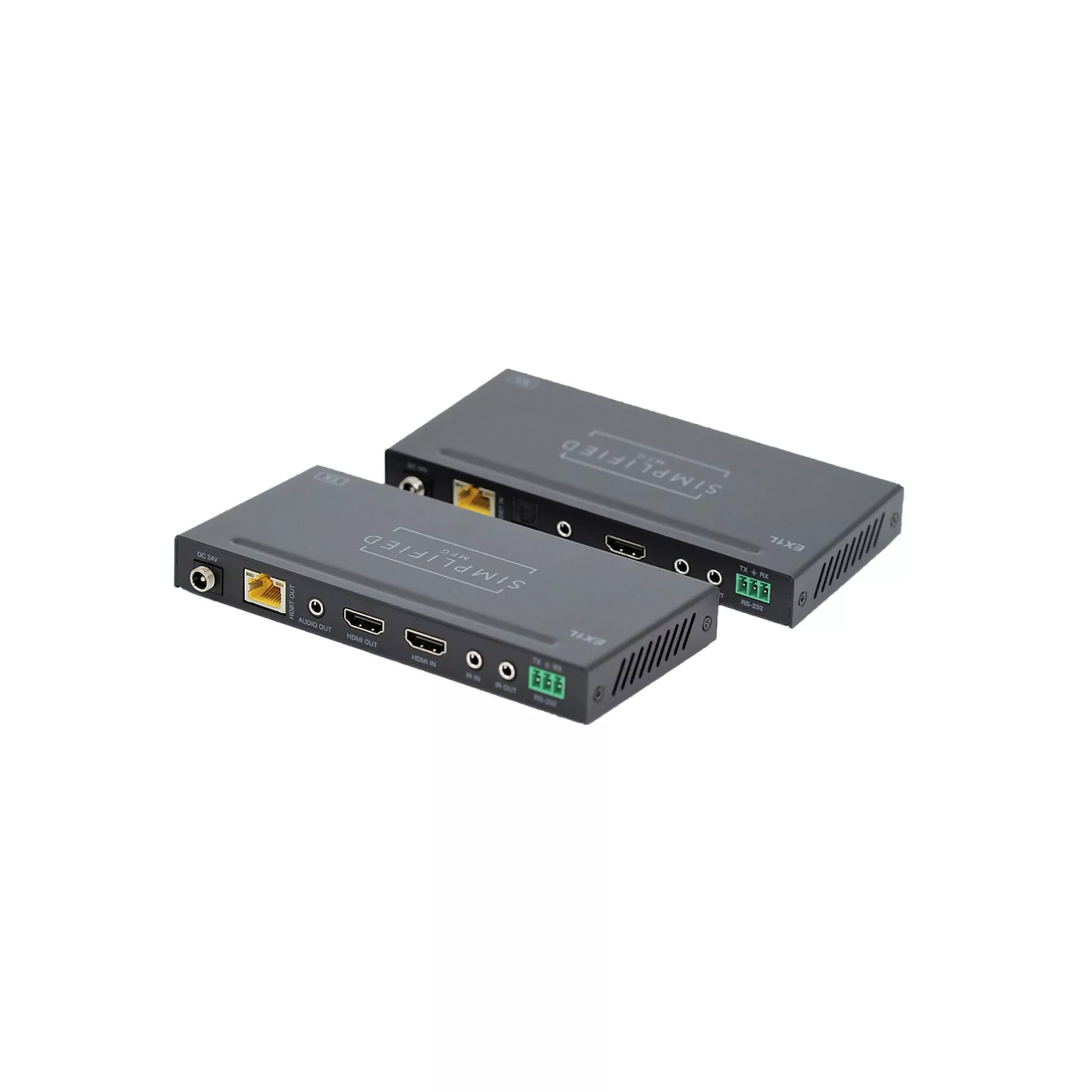

The EX1L 18Gbps HDMI extender has 3 times the distance ofmost extenders in its price range! The EX1L can extend your HDMI signal over492ft/150meters to a compatible 1080p display, 394ft/120meters to a HDMI 2.0b18gbps compatible display. The EX1L supports HDR8/10/10+ and Dolby Vision aswell as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control,RS232, together with the 18gbps HDMI 2.0b signal. There are also audiobreakouts on both the transmitter and the receiver. With 120m of capability,the EX1l can overcome the punch downs and other wiring challenges often seen. Tryone, they are reasonable and awesome!
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- HDR8/10/10+ pass through
- Dolby Vision pass through
- Supports HDMI High Bit Rate (HBR) audio pass through
- Supports CEC bypass
- Two-way POE, either the TX or the RX can be powered to powerthe other end device (only one supply is needed)
- Bidirectional 12V Infrared control signal together with theHDMI signal
- Transfer Bidirectional RS232 control signal together withthe HDMI signal
- Transmission distance: Over CAT6 cable
- 1080P @60Hz36bit; 3D1080P@30Hz36bit
- 4K x 2K@30Hz@24bit.
- 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit, 10-bit, 12-bit
HDMI Audio Formats (Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format
24V
Connections
Inputs: Transmitter
1x HDMI Type A
1x IR INPUT
1x RS232
1x Service
Inputs: Receiver
1x HDBaseT in
1x IR INPUT
1x RS232
1x Service
Outputs: Transmitter
1x HDBaseT Out
1x HDMI Type A
1x IR OUTPUT
Outputs: Receiver
1x HDMI Type A
1x IR OUTPUT
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
5.5” (140mm) x 2.5” (65mm) x 0.7” (18mm)
Weight
160g/5.64 oz.
Power Supply Input
AC100 – 240V 50/60Hz
Power Supply Output
DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
24W (Max)
Operation Temperature
32 – 104 Degrees F / 0 – 40 Degrees C
Storage temperature
-4 – 140 Degrees F / -20 – 60 Degrees C
Relative Humidity
20 – 90% RH (no condensation)
