Network Router

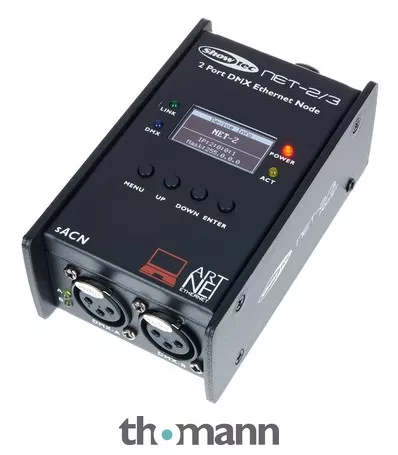

The Showtec NET-2/3 Pocket and NET-2/5 Pocket are modern network routers that convert Artnet and SACN data into DMX-512 signals and vice versa. Power can be supplied via PoE and therefore without the 12V mains adapter. A maximum of 1024 channels can be transmitted via a simple CAT5 cable. All settings can be made using the easy-to-use menu on the graphic display with the buttons on the front.
Connections:
- Network: RJ45
- DMX 2 x XLR 3-pin
- Supported protocols: ArtNET, sACN, TCP/IPv4, RDM, DMX-512A
- Dimensions: 67 x 115 x 44 mm
- Power supply: 12 V DC, 500 mA (power supply unit included)
- Power consumptions: max. 6 W
- Operating temperature: 0 to +40° C
- Weight: 335 g
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2019
- Item number470298
- Sales Unit1 piece(s)
- Type Ethernet-Interface
- Type of construction Desktop
- Connection for PC/Ethernet RJ45
- Universes (Outputs) 2
- DMX-Output 3-pole XLR female
- DMX-Input 3-pole XLR female
- RDM-capable Yes
- Internal memory No
