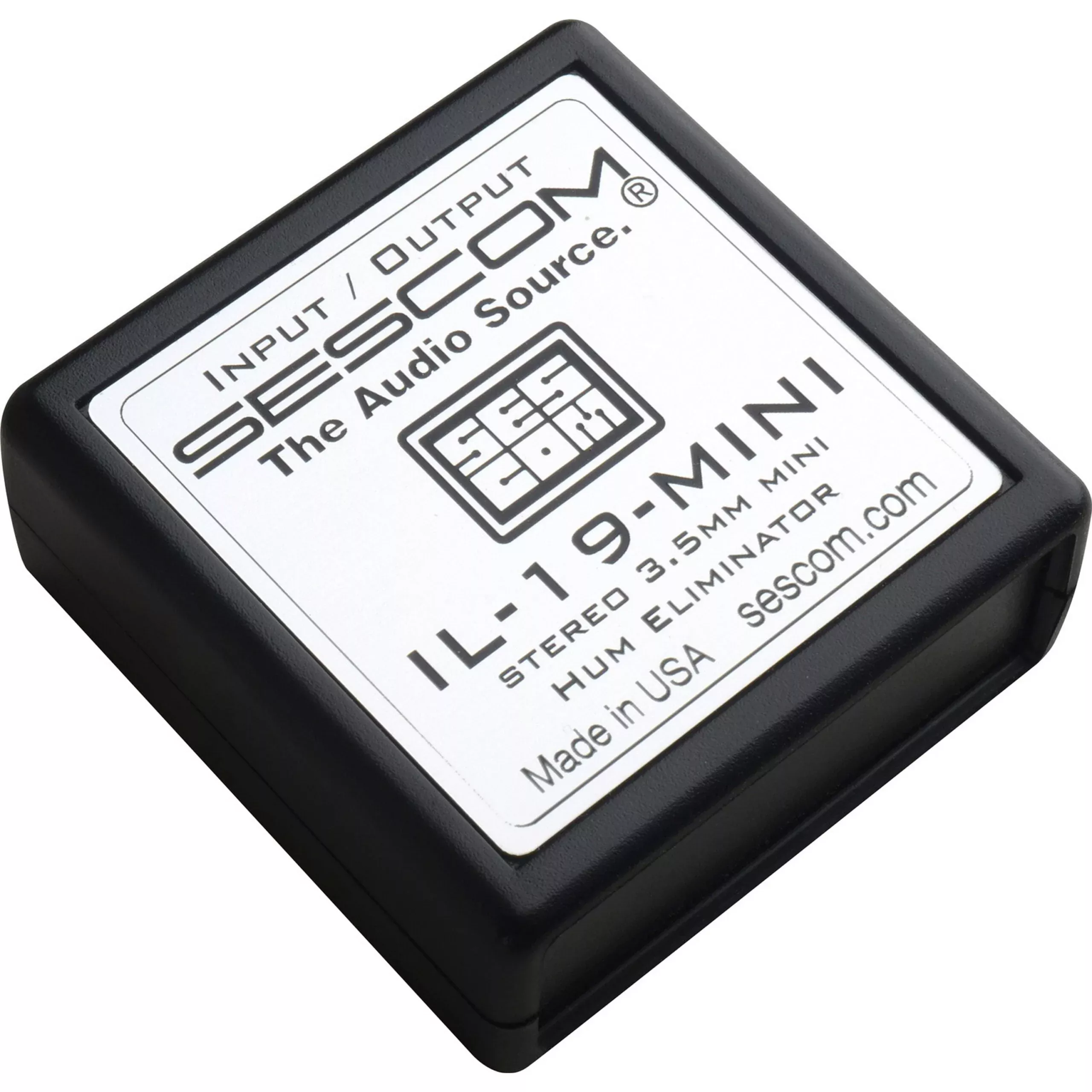

Sescom IL-19-MINI Hum Eliminator 3.5mm Stereo Mini I/O
The next generation of the Sescom IL-19 series, theIL-19-MINI is an inline hum eliminator / matching transformer for 3.5mm stereo(TRS) runs and is perfect for both DSLR audio applications as well as a laptopinterface where HUM always poses a problem, you can connect up to a 25-footunbalanced 3.5mm TRS cable between any mic output source and through theIL-19-MINI to remove hum. As a laptop interface use it between external PC micinputs to remove any unwanted hum and noise.
Perfect for use with, but not limited to the following: wheninterfacing with MP3 players, computer audio, cell phone audio, includingAndroid, RIM/Blackberry and iOS iDevices like the iPhone, iPad and of coursethe iPod Touch… just in case you want to connect your Smart Phone to the DJmixer at the next party you are at!
Designed as 3 products in-one, the Sescom IL-19-MINI usesthe same technology and Sescom proprietary components as our World-FamousIndustry Standard IL-19 for instantly removing audio hum in live sound &broadcast applications providing quick fix line isolation to remove hum.Removes ground loop hum, mode noise & differentially induced hum. Otherin-line problem solvers solve only one problem at a time.
Sescom transformers are specifically engineered forexcellent, extra-wide frequency response allowing a hotter signal. Sescomtransformers also provide superior protection against radiated noise thusreducing pickup of hum and interference from outside sources such as powersupplies. The IL-19-MINI keeps unwanted signals out of the circuit, but alsoreduces induced noise providing high-quality transformer isolation to eliminatehum and buzz from interacting gear. Built into a tiny high impactnon-conductive ABS enclosure.
The IL-19-MINI is a 3.5mm Stereo In-line MatchingTransformer, Audio Hum Eliminating Problem Solver with 3.5mm (1/8”) Jacks forthe Input & Output. We put this into the smallest little housing we could,it measures 2” x 2” and includes a piece of 3M Dual-Lockr type Velcro, so itcan be installed ANYWHERE!
Not for use with phantom power devices.
Technical Specifications
Nominal Target I/O Levels
-16dB to +8dB*
*No Lower Limit / Upper Limit
Approx. +24dB
Nominal Input Impedance
600 ohms
Nominal Output Impedance
600 ohms
Frequency Response
+/- 1db at 20hz to 20khz Input & Output Device Dependent
Warranty
1 Year
