Sescom IL-19 Hum Eliminator Inline with Isolation
The Only Product that Removes All Types of Hums in LiveSound & Pro-Audio Gear!
The Industry Standard – Designed as 3 products in-one, theSescom IL-19 is the solution for instantly troubleshooting audio hum and noiseproblems in live sound & broadcast applications providing quick fix lineisolation to stop noise at the source. Removes ground loop hum, mode noise& differentially induced hum without the need for multiple transformers,ground lifters or phase inverters. Other in-line problem solvers solve only oneproblem at a time.
The IL-19 is the only Bi-Directional device designed to plugdirectly into your equipment’s inputs OR outputs!
Sescom transformers are specifically engineered for flatterand broader frequency response allowing a hotter signal throughput withoutsaturation.

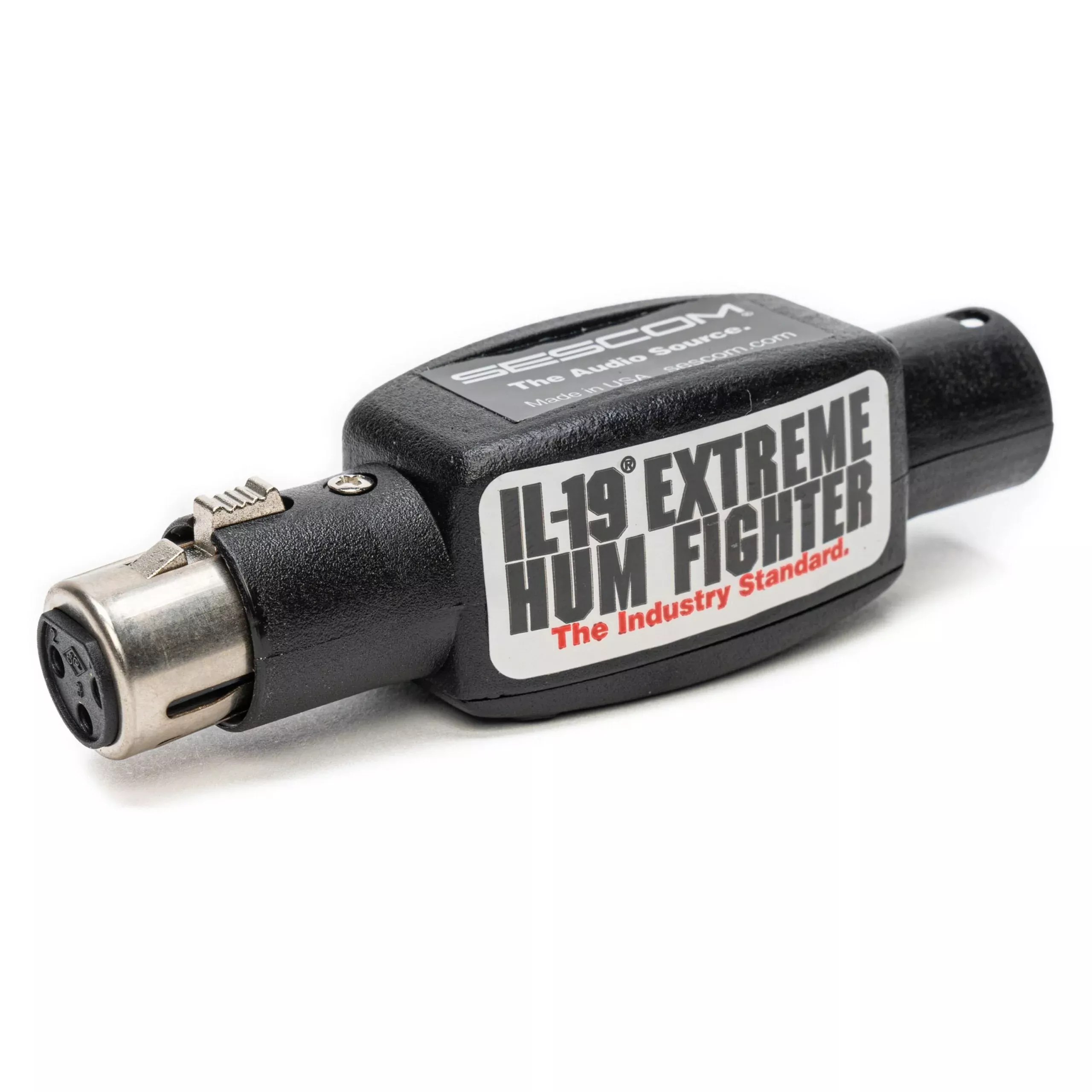

In-line XLR Male to XLR Female Matching Transformer builtinto a high impact ABS thermoplastic housing.
Not for use with phantom power devices.
Technical Specifications
Nominal Target I/O Levels
-16dB to +8dB*
*No Lower Limit / Upper Limit
Approx. +24dB
Nominal Input Impedance
600 ohms
Nominal Output Impedance
600 ohms
Frequency Response
+/- 1db at 20hz to 20khz Input & Output Device Dependent
Product Dimensions
3.75” x 1.06” x 1.13”
Warranty
1 Year
