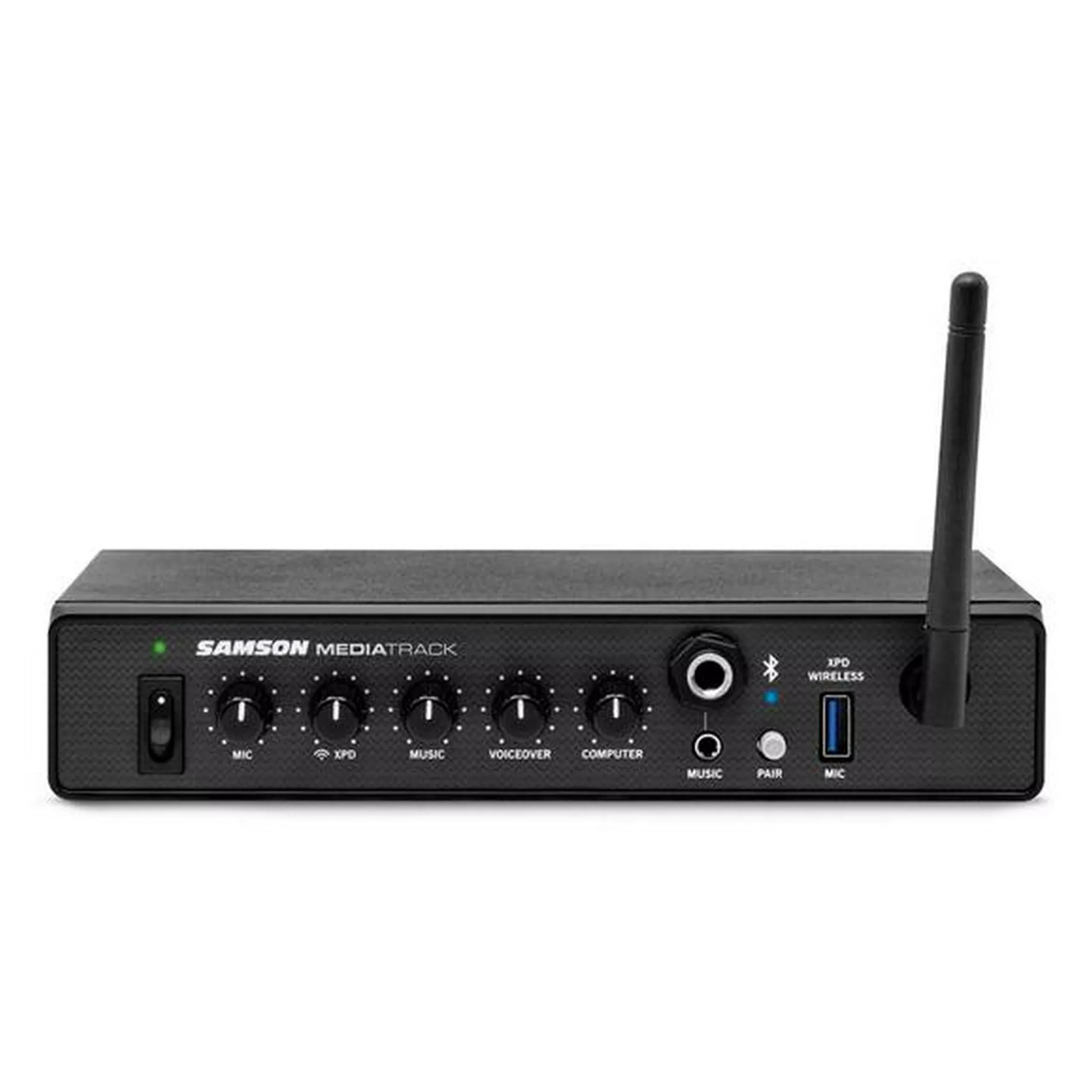

Samson MediaTrack 4-Channel Rackmount Mixer and USB Interface
MediaTrack was made to upgrade and simplify audio capture ofyour live streams, video conferences and content creation. The compact4-channel rackmount mixer and USB interface includes all of the features andconnectivity you need to make all of your projects sound their best.
It’s a mixer
MediaTrack features an array of connections for both wiredand wireless audio sources. Plug a wired microphone into the XLR-1/4” combojack, or go hands-free by connecting a Samson XPD Digital Wireless (soldseparately) system to the front panel USB jack. Now you can confidently movefreely around your environment with exceptional audio. The Music channel bringsin audio from the stereo RCA inputs on the rear panel, as well as front-mountedstereo 1/4” and 1/8” inputs. Finally, you can add streamed Bluetooth audiosources such as smart phones and tablets to your mix as well.
Perfect for productivity
Designed with modern connected workspaces and contentcreators in mind, every feature from the available inputs to plug-and-playoperation makes MediaTrack the audio solution you’ve been looking for. It’sextremely easy to get up and running – plug in the USB cable, connect yourmicrophone, set your levels and you’re ready to start streaming.
The onboard Voiceover priority ducker lowers the level ofany background music so your voice stays clear and focused and you don’t lose abeat. The Voiceover Hold knob allows you to adjust how long the audio islowered to fit your presentation style.
A rear-mounted Master Volume allows the overall output levelof the mixer to be set for the room or application without any worry ofaccidental changes. You can mix all the inputs along with the USB audio from acomputer and send them to the dual XLR and RCA line level outputs. The unit canfurther be configured for either mono or stereo operation. These features makethe MediaTrack perfect for hybrid environments when you are both streaming andpresenting in front of an audience.
The MediaTrack is ideal for connected sound like hybridclassrooms, streaming fitness classes and houses of worship. It is also a greatsolution for commercial sound systems in restaurants, bars and conferencerooms.
Key Features
- 4-channel 1U half-rack stereo line mixer
- USB interface for connecting with computers or tablets
- XLR-1/4” balanced microphone input
- Stereo line channel with RCA, 1/4” and 1/8” (3.5mm) inputs
- Bluetooth connectivity to wirelessly stream from a mobiledevice
- Samson XPD Series USB Port (wireless system sold separately)
- Voiceover control with priority ducking and variable holdtime
- Rear panel master volume control
- 15V phantom power
- Selectable Mono or Stereo output setting
- Rackmount kit and power adapter included
Technical Specifications
Frequency Response
20Hz-20kHz ±2dB (Mic to Main)
T.H.D.
<0.02% (Mic/Line & Line to Main)
Maximum Input Level
-23dBu @ 1kHz (Mic Input)
Maximum Input Level
2dBu @ 1kHz (Line Input)
Maximum Output Level
+14dBu
Bit Depth
16-bit
Sample Rates
44.1kHz, 48kHz
Signal-to-noise
>96dB
Bluetooth
V4.0, A2DP V1.2
USB I/O
USB-C
Phantom Power
15V DC
Product Dimensions
8.75” x 5.5” x 1.75” / 223mm x 138mm x 43mm
Product Weight
1.76lb / 0.8kg
