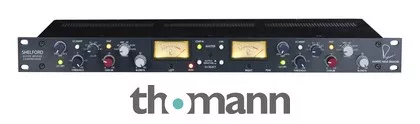

2-Channel Diode Bridge Compressor
- Custom transformer and class A line amplifier
- Stereolink or 2x mono
- Integrated parallel compression
- Input impedance: 10 kOhm
- Output impedance: 40 ohm
- Maximum input level (+4 dBu selected): +26.7 dBu
- Maximum output level: +26.7 dBu
- Noise floor: (22 Hz – 22 kHz BW): -104 dBu
- Frequency response (10 Hz to 120 kHz): +/- 0.25 dB
- THD+N @1 kHz @ maximum level (22 Hz – 22 kHz BW): 0.0008%
- Compressor Noise specifications: Noise at 0dB make-up gain (22 Hz – 22 kHz BW): -84.5 dBu, noise at +20dB make-up gain (22 Hz – 22 kHz BW): -64.5 dBu
- Detented control with 31 steps
- Input/output connectors: XLR
- Sidechain send/return: 6.3 mm jack
- Groundlift switch
- Format: 19″/ 1 U
- Weight: Approx. 4 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2021
- Item number505891
- Sales Unit1 piece(s)
- Compressor Yes
- Gate No
- Peak Limiter No
- 2-Channel Unit Yes
- Attack/Release Adjustable No
