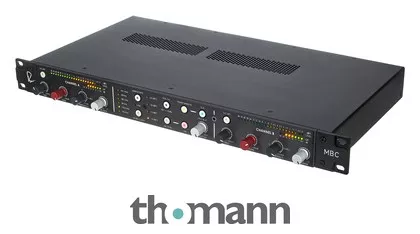

2-Channel A / D converter / limiter
- 24 Bit / 192 kHz converter
- Converter input with switchable signal path: transformerless class A signal path or via interstage audio transformer with RND Silk Red and Blue circuit
- Analog limiter section with class A line amplifier stage up to 20 dB
- Controllable threshold and release
- Switchable sidechain connection with tunable high-pass filter from 20 – 250 Hz
- Limiter can be used either in dual mono or stereo mode
- Analog inputs: 2x XLR
- Digital outputs: AES, S / PDIF, TOSLINK
- Word Clock In / Out
- 2 x 22-segment level LED meters
- 2 x 8-segment gain reduction LED meters
- Peak hold option
- Format: 19″/ 1 U
- Weight: approx. 4 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2021
- Item number505683
- Sales Unit1 piece(s)
- Amount Of Channels 2
- AD Conversion Yes
- DA Conversion No
- Max. Resolution Rate in Bits 24 bit
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor Yes
- AES/EBU Connector Yes
- ADAT No
- Word clock Yes
- Number of analog inputs 2
- Number of Analog Outputs 0
- Headphone connection No
- Special Featuresprofessional Status Features
