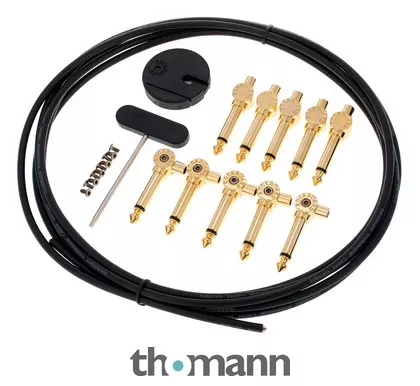

Solderless Patch Cable System
- Set for 5 patch cables
- Includes 10 plugs and 3 m cable
- Unique 2-piece 2-way connector design (patent pending)
- Can be configured as a straight or angled plug
- Plug ‘n’ Play design – no stripping of the cable necessary
- Plug dimensions straight (L x W x H): 20 x 12 x 10 mm
- Plug dimensions angled (L x W x H): 15 x 13 x 10 mm
- Gold-plated contacts
- Gold finish
- Low cable capacity for maximum signal transparency
- Flexible oxygen-free copper conductor 7 / 0.16 mm
- Rigid PE insulation
- Braided tinned copper screen 6 x 16 / 0.12 mm
- Black PVC cable sheath
- Capacitance conductor / screen less than 8 pF / decimeter
- Conductor resistance less than 4 mOhm / Decimeter
- Working temperature: -15 ° C to + 70 ° C
- Diameter: 4 mm
- Includes TX8 key, cable cutter and 10 spare screws
3030-Day Money-Back Guarantee
- Available sinceAugust 2018
- Item number444375
- Sales Unit1 piece(s)
- Colour Black
- Connector 1 Jack 6,3mm TS male
- Connector 2 Jack 6,3mm TS male angled
