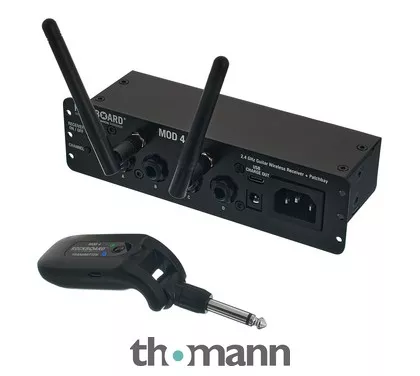

Wireless Receiver and Patchbay for Pedalboards incl. Transmitter
- With RockBoard U2 wireless transmitter
- 2.4 GHz ISM band for worldwide use
- 30 m average range (without obstacles)
- 24 Bit / 48 kHz uncompressed digital signal transmission
- 20 Hz – 20 kHz frequency range
- Latency: 5 ms
- > 103 dB Dynamic range
- – 85 dBm HF sensitivity
- 0.2% distortion (THD)
- Four selectable channels
- Suitable for MOD slots in RockBoard pedalboards
- Compatible with a wide range of other pedalboards
- Works as a central access point to your effects setup
- Removable front panel for mounting on or under pedalboards
- Power supply with optional 9 V DC power supply (not included), 2.1 x 5.5 mm barrel connector, centre negative
- Power consumption: 500 mA
- Passive operation possible (only patchbay without wireless system)
- Dimensions with front panel (W x D x H): 175 x 85 x 47 mm
- Dimensions without front panel (W x D x H): 160 x 85 x 33 mm
- Weight: 500 g
- Includes RockBoard U2 Wireless Transmitter, 2 antennas, 1 USB cable, mounting screws and nuts
Connectors:
- 4 x 6.3 mm Stereo jack thru (TRS)
- 1 x 6.3 mm Mono jack receiver audio output (TS)
- 1 x DC 2.1 x 5.5 mm barrel connector thru
- 1 x AC IEC thru
- 1 x USB Type C charge output
Note: Battery operation not supported
Note: Register your product at www.w-distribution.de/Warranty and extend the warranty to 4 years.
NoteRegister your purchase at shop.warwick.de/en/warranty-registration for an extended warranty of 4 years.3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2020
- Item number495161
- Sales Unit1 piece(s)
