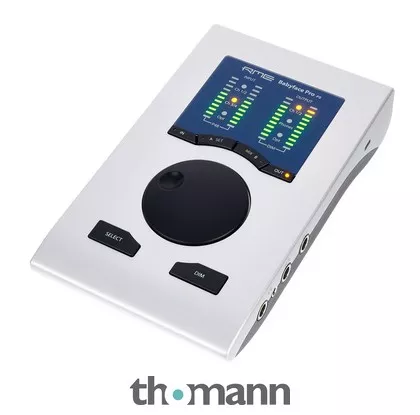

24 Channel USB Audio Interface
- 24 bit / 192 kHz
- 12 Inputs and outputs in total
- All inputs digitally controlled
- 4 Analogue inputs for microphone (XLR, SNR 113.7 dB), line level and instrument (6.3 mm jack, line SNR 116.3 dB)
- Microphone inputs with up to 65 dB gain, pad, overload protection, and 48 V phantom power
- 4 Analogue outputs: 2x XLR and 2x outputs for high- and low-impedance headphones (90 mW output power)
- Optical input and output — either ADAT (SMUX is supported) or SPDIF
- MIDI input and output via breakout cable
- USB 2.0 (3.0 compatible)
- RME TotalMix FX software includes EQ, reverb, and delay
- Class compliant
- SteadyClock FS for lowest amount of jitter and highest jitter immunity
- Optimised driver for PC and Mac
- Stand-alone operation possible
- USB powered
- Dimensions (W x H x D): 108 x 35 x 181 mm
- Weight: 680 g
- Includes USB-C cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2019
- Item number476426
- Sales Unit1 piece(s)
- Recording / Playback Channels 12×12
- Number of Mic Inputs 2
- Number of Line Inputs 4
- Instrument Inputs 2
- Number of Line Outs 4
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 1
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 108 mm
- Depth 181 mm
- Height 35 mm
- Connection Format USB port Type B
- Included in deliveryUSB-A to USB-B Cable, USB-B to USB-C Cable, MIDI In/Out Adaptor Cable, Case
- Zero latency monitoringYes
