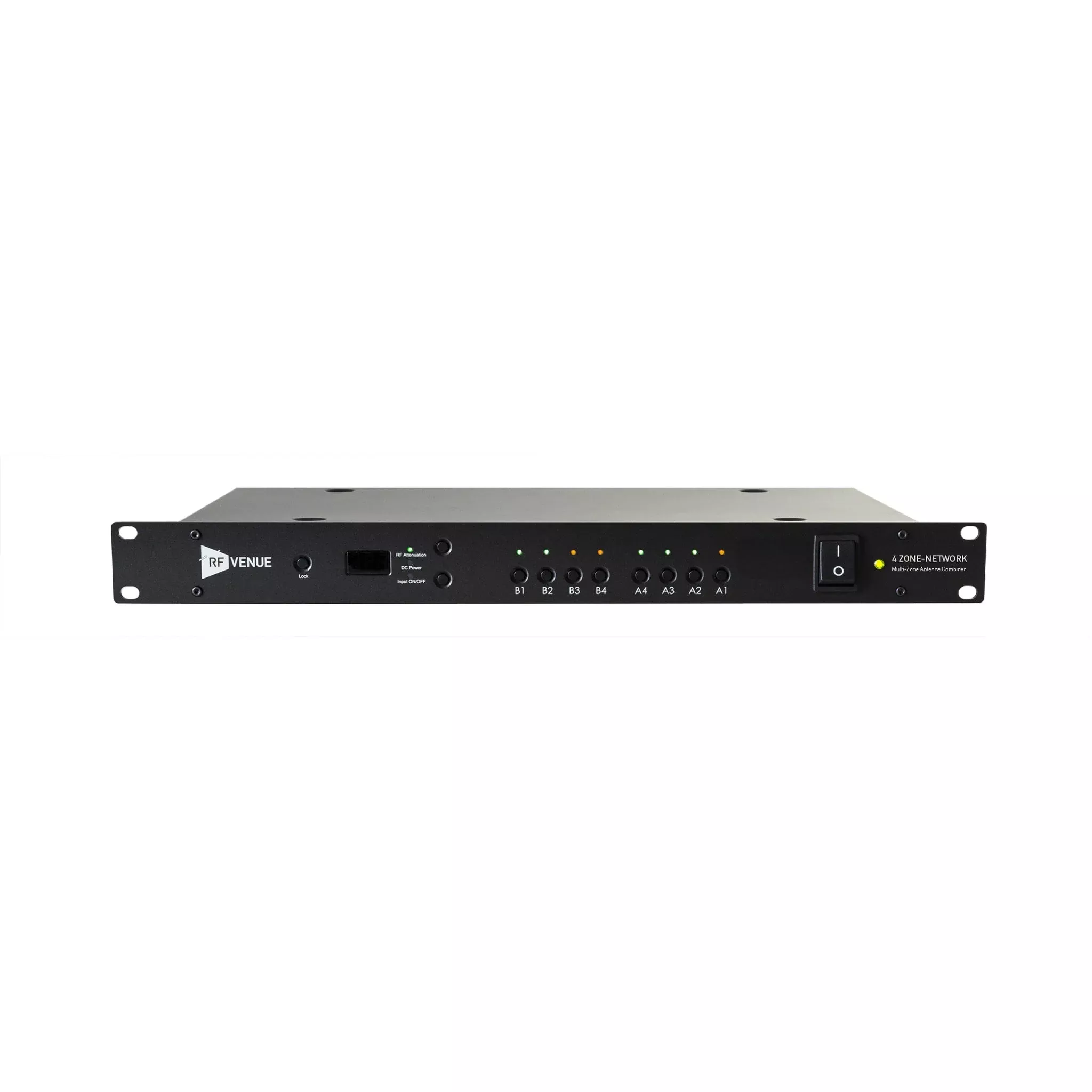

RF Venue 4ZONE-NETWORK Active Antenna Combiner with LAN Connectivity
RF Venue 4ZONE-NETWORK is an active antenna combiner designed for multi-zone wireless microphone systems. It enables distribution and management of RF antenna signals across multiple coverage zones for audio professionals operating complex wireless environments. This makes it ideal for large venues and installations where remote control and zone management are critical.
The unit combines antenna signals while providing network connectivity for system monitoring and control. Users can manage zone status, adjust settings, and toggle zones individually through LAN-based access. This allows system checks and configuration without physical interaction with the hardware.
The design supports scalable wireless microphone deployments across rooms or buildings. It allows centralized management of antenna zones during events or installations. Preset recall enables repeatable configuration in large or frequently used venues.
Key Features
- Four Zone Antenna Distribution: Supports up to four independent diversity antenna zones
- LAN Network Control: Enables remote monitoring and adjustment via network connection
- Active Antenna Combining: Balances antenna signals while minimizing crosstalk
- Zone On/Off Management: Allows individual control of each antenna zone
- Wireless Microphone Support: Designed for use with wireless microphone systems in the 470 – 960 MHz range
Technical Specifications
Product Type
Active antenna combiner with network control
Number of Zones
4 independent diversity zones
RF Compatibility
Wireless microphones
470–960 MHz
Network Control
LAN-based remote monitoring and control
Antenna Configuration
4 A&B input pairs (8 antennas)
8 total antenna inputs
Output
1 output pair (A&B), with variable attenuation
System Management
Zone balancing
Minimized crosstalk
