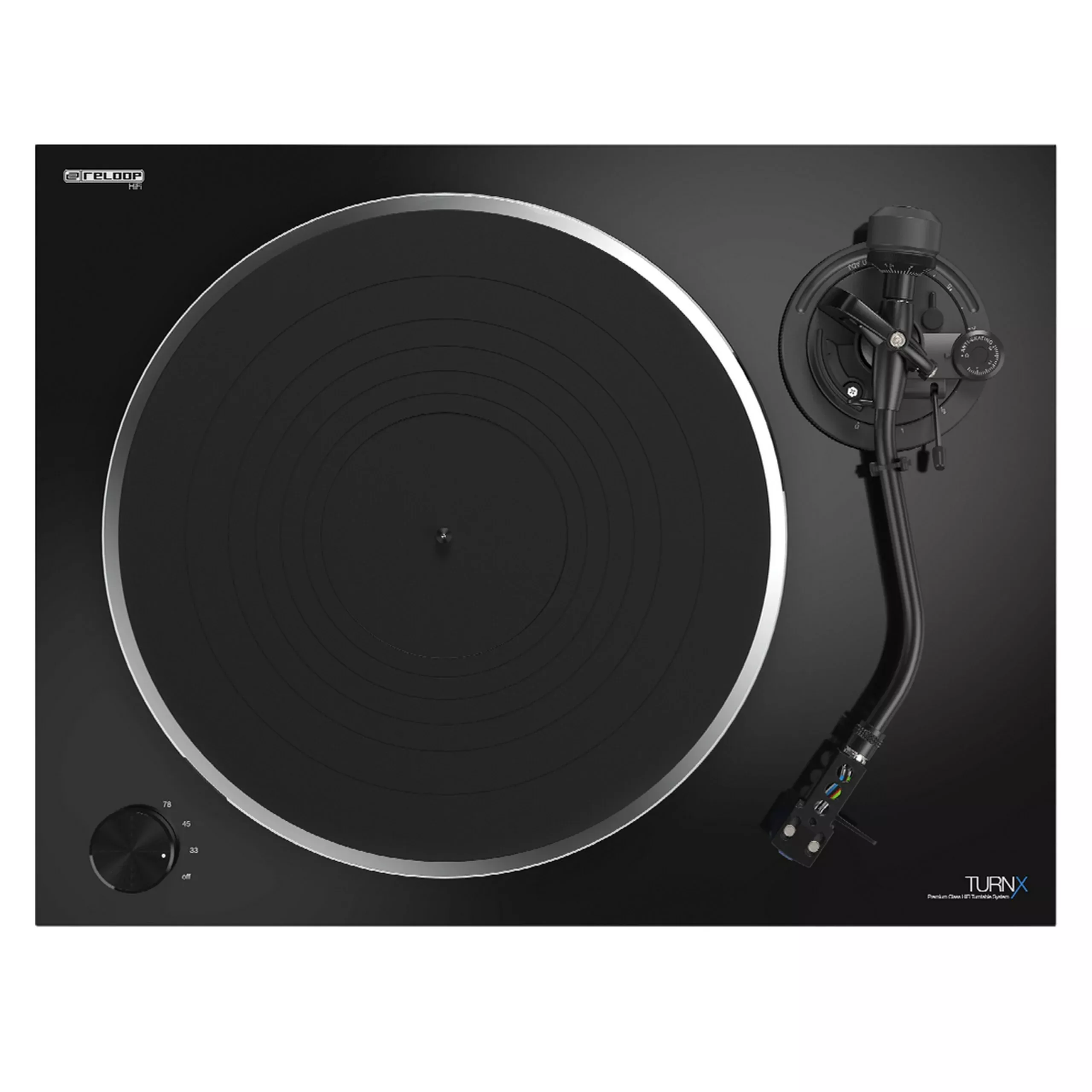

Reloop Turn X Premium Class HiFi Turntable System
Premium Class HiFi Turntable System
Reloop’s Turn X is a quartz-driven, high-end turntable thatimpresses in more ways than just its sound and premium aesthetics.
Designed with precision from the outset
The Turn X’s direct-drive DC motor offers incrediblyaccurate and consistent speeds. The high torque ensures lightning-fast start-uptimes and minimal variances of just +/-0.03%. The Turn X excels when operatedin full manual mode, where its electronic brake and rotary switch for smoothstarting and stopping, which also doubles as a speed selector (33, 45 and 78RPM), shine.
Audiophile tonearm
The statically balanced S-shaped tonearm can be adjusted inheight to change the cartridge’s azimuth (the angle at which the needleapproaches the record) and the record’s vertical tracking angle (VTA). Thetonearm design guarantees free and fluid movement and optimum cartridgeperformance.
Balance perfection
A solid aluminum block supports the record player’sprecision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5mm thickness ensure smooth, even movement. The damping rubber coating on theback of the turntable and the rubber mat provide excellent isolation propertiesand minimize vibrations.
Crystal clear sound quality
The Turn X has a high-quality Ortofon 2M Blue cartridgepre-installed, ensuring excellent dynamics and sound resolution to satisfy eventhe most discerning audiophiles. Another highlight: The universal SME connectorenables a quick and easy cartridge system change if required.
Sound and nothing but sound
The turntable’s solid MDF chassis is exceptionally sturdyand robust, keeping unwanted resonances at bay from the outset. As a bonus, theTurn X is effectively decoupled thanks to the height-adjustable isolator feet.
Design without compromise
In addition to meeting the exacting demands of vinylenthusiasts, the Reloop Turn X is a true visual showpiece. The record player’ssleek design, sophisticated one-button control, and classy piano lacquer finishmake it a real eye-catcher.
Attention to detail
Last but not least, the Turn X features a gold-platedhigh-resolution phono output and a gold-plated ground connector for optimumsignal transfer and corrosion resistance. Interference is reduced even furtherby the power switch’s ultra-low noise insulation.
Key Features
- Quartz-controlled, premium HiFi turntable
- Super high torque, direct drive DC motor with ultra-preciserotation speed
- Quick start-up and drift-off rotation speed less than+/-0.03%
- Full manual operation with motor control-switch to selectthree different speeds (33, 45 and 78 RPM)
- Precision machined, extra heavy aluminum die-cast platterfor a perfectly balanced rotation (305 mm diameter, 22.5 mm thick, 2.1 kg)
- Deadening rubber covering rear platter surface & special5 mm rubber mat for optimized resonance control and damping
- Sunk-in platter cavity construction
- Static-balanced S-shaped tonearm with VTA adjustment
- Adjustable anti-skating wheel for optimal pick-up tracking
- Pre-installed Ortofon 2M Blue cartridge for excellentdynamics and sound resolution
- Universal headshell connector (SME) provides addedflexibility
- Counterweight supplied supports a wide variety of cartridges
- Premium, high-resolution audio phono outputs (with separategrounding connection)
- Gold-plated, corrosion-resistant audio connections(detachable power and RCA cables)
- Built-in switching power with ultra-low noise isolationdesign
- Rigid construction, with extra-heavy, solid MDF woodenplinth
- Height-adjustable, shock-resistant insulator feet foreffective decoupling
- Timeless design with high-gloss, black piano finish
- Accessories included: Turntable platter, dust cover, 2x dustcover hinges, balance counterweight, PHONO RCA cable with grounding cable, ACpower cord, rubber mat, instruction manual, Ortofon 2M Blue cartridge &headshell
Technical Specifications
Turntable Section
Type of turntable
Direct drive, fully manual
Drive
Quartz driven upper-torque direct drive with precisionrotation
Motor
DC Motor, 16-Pole, 3-Phase, brushless
Rotation speeds
33 1/3, 45 & 78 RPM
Starting Torque
More than 4500 g/cm
Start-up time / rpm change
Less than 0.3 sec.
Wow and Flutter
Less than 0.1% WRMS (JIS WTD)
S/N Ratio
More than 60dB (DIN-B)
Breaking System
Electronic brake
Turntable Platter
Turntable Platter
Aluminum die-cast
305 mm diameter
Weight About 2.1 kg
Tonearm Section
Type
Static balanced S-Shape
Effective Length
230 mm
Overhang
15 mm
Tracking Error Angle
Less than 3 degrees
VTA Adjustment Range
0-6 mm
Applicable Cartridge Weight
17 – 25 g (incl. Headshell)
Anti-Skating Range
0-3 g
Terminals
1x PHONO Out (gold-plated), 1x GND Earth Terminal
Cartridge
Type of cartridge
Ortofon 2M Blue
Output voltage at 1000 Hz, 5cm/sec.
5.5 mV
Channel balance at 1 kHz
1.5 dB
Channel separation at 1 kHz
25 dB
Channel separation at 15 kHz
15 dB
Frequency response
20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force
80 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20 Degrees
Internal impedance, DC resistance
1.3 kOhm
Internal inductance
700 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
150-300 pF
Cartridge color, body/stylus
Black/Blue
Cartridge weight
7.2 g
General
Power Supply
AC IN 100~240V, 50/60 HZ
Power consumption
3W
Dimensions
460(W) x 367.3(D) x 172.6(H) mm
Weight
10.35 kg
Included Accessories
dust cover + 2x hinge, rubber mat, power supply cable, RCAcable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue(pre-installed), turntable platter, operation manual & counterweight
