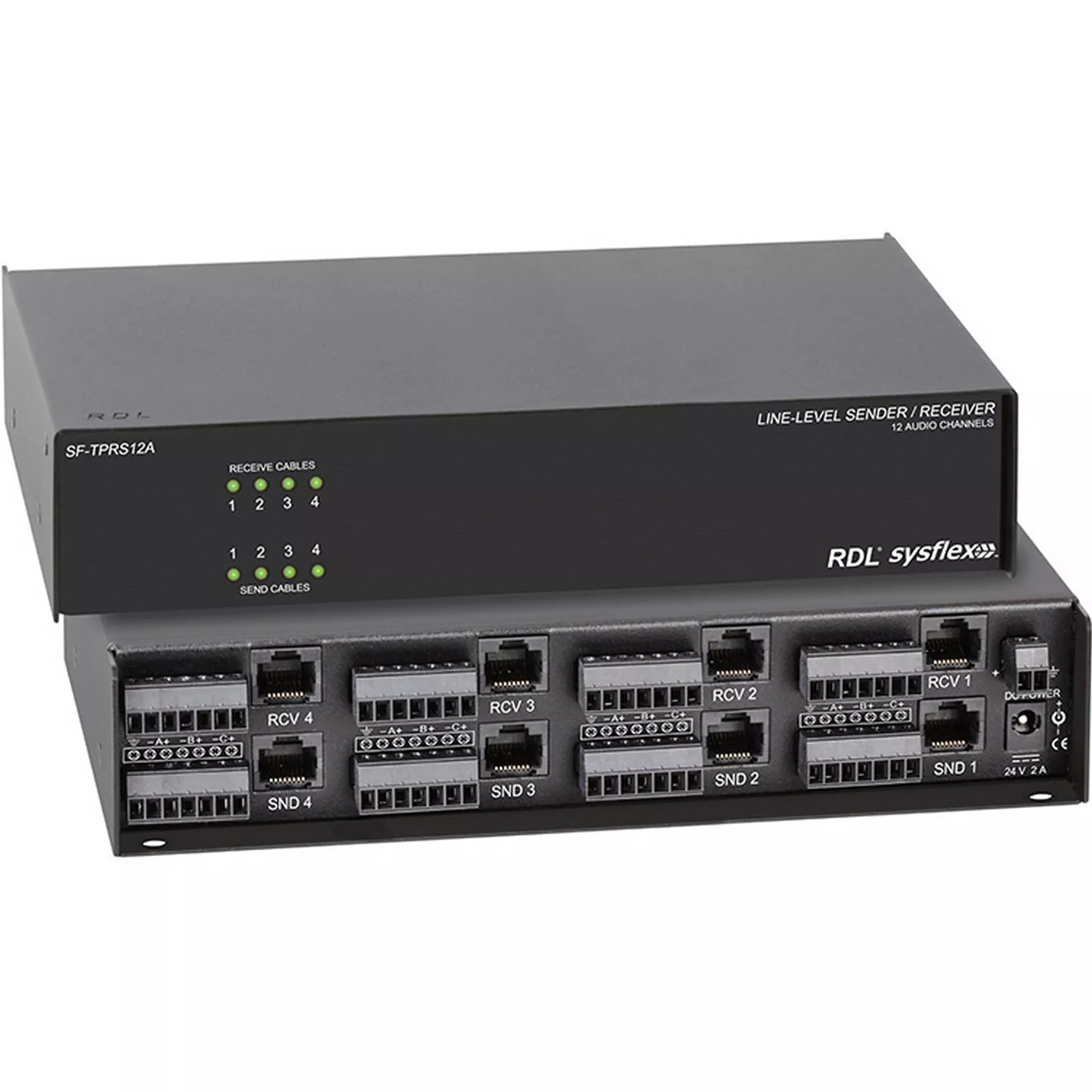

RDL SF-TPRS12A Twisted Pair Format-A Line-Level Sender and Receiver
The SF-TPRS12A is a Format-A chassis that provides fourthree-pair audio sending sections and four three-pair audio receiving sections.
Sending Section
The SF-TPRS12A provides four audio sending sectionscompatible with RDL Format-A twisted pair products. Three +4 dBu balancedline-level sources may be connected to each section on a detachable terminalblock. That section converts and transmits those signals on pairs A, B and C ofthe associated RJ45 connector.
The SF-TPRS12A feeds all three signal pairs in the twistedpair cable. No other sending modules may be connected on the same cable witheach RJ45 output.
Receiving Section
The SF-TPRS12A provides four audio receiving sectionscompatible with RDL Format-A twisted pair products. Each section receives up tothree audio sources and provides three outputs corresponding to signal pairs A,B and C. A studio-quality buffer amplifier feeds +4 dBu balanced outputsthrough a detachable terminal block.
The SF-TPRS12A features bridging inputs, allowing it to beconnected to the LOOP OUT jack of other receivers. The bridging input circuitsused in all FORMAT-A twisted pair receivers allow connection of up to 10 receiveroutputs for each cable pair.
Common
The SF-TPS12A may be powered directly from a 24 Vdc powersupply using either the power jack or the detachable terminal block. Localpower connected to the module is also fed to all modules connected to the eightRJ45 jacks. Power for each RJ45 connector is protected against wiring faults byan automatically resetting fuse. Front-Panel green LEDs indicate valid modulepower on each RJ45
Key Features
- Four Separate Three-Pair Format-A Sender Sections
- Four Separate Three-Pair Format-A Receiver Sections
- Up to 24 Audio Channels, 12 Sender; 12 Receiver
- +4 dBu Balanced Audio Inputs and Outputs
- Local Audio Connections on Detachable Terminal Blocks
- Utilizes All Three Format-A Pairs
- Local Power Feeds all Modules Connected to RJ45 Connectors
- Wiring Fault Protection by Automatic Resetting Fuse
- Local Power Input on Terminal Block or dc Power Jack
- Green LED per Section Indicates Validity of Module RemotePower
- Studio-Quality Precision Active Balanced Circuitry
Technical Specifications
Sending Section
Inputs
(12)20 kΩ balanced
Input Connection
Detachable Terminal Block (Balanced)
Input Level
+4 dBu Bal.; +22 dBu Max
Format-A Signal Pairs Used (3)
A, B, C
Output
RDL TP Format-A
Output Connection
RJ45
Frequency Response
10 Hz to 50 kHz (± 0.1 dB)
THD+N
<0.005%
Noise Below +4 dBu
<90 dB
Crosstalk
<85 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
CMRR
> 60 dB (50 Hz to 150 Hz)
Receiving Section
Inputs (4)
RDL Format-A
Input Connections
RJ45
Format-A Signal Pairs Used (3)
A, B, C (per section)
Outputs (12)
150 Ohms Balanced
Output Connection
Detachable Terminal Block (Balanced)
Output Level
+4 dBu Bal. nominal, +22 dBu Max
Frequency Response
10 Hz to 50 kHz (± 0.1 dB)
THD+N
<0.005%
Noise below +4 dBu
<90 dB
Headroom above +4 dBu
> 18 dB
CMRR
> 80 dB (50 Hz to 150 Hz)
Common
Power Connections (2)
Power Jack; Detachable Terminal Block
Ambient Operating Environment
32 Degrees to 131 Degrees F (0 Degrees C to 55 Degrees C)
Power Requirement
24 Vdc @ 400 mA plus connected loads (1.6 A max)
Dimensions (W x H x D)
8.74 x 1.68 x 5.78” (22.2 x 4.27 x 14.68 cm)
Package Type
Cardboard Box
Package Dimensions
9.5 x 2.25 x 17.8 (24.1 x 5.71 x 17.8 cm)
Shipping Weight
2.65 lbs
WEEE weight
2.31 lbs
Tariff code
8543.70.9960
Item Includes
1x SF-TPRS12A Line-Level Sender / Receiver
