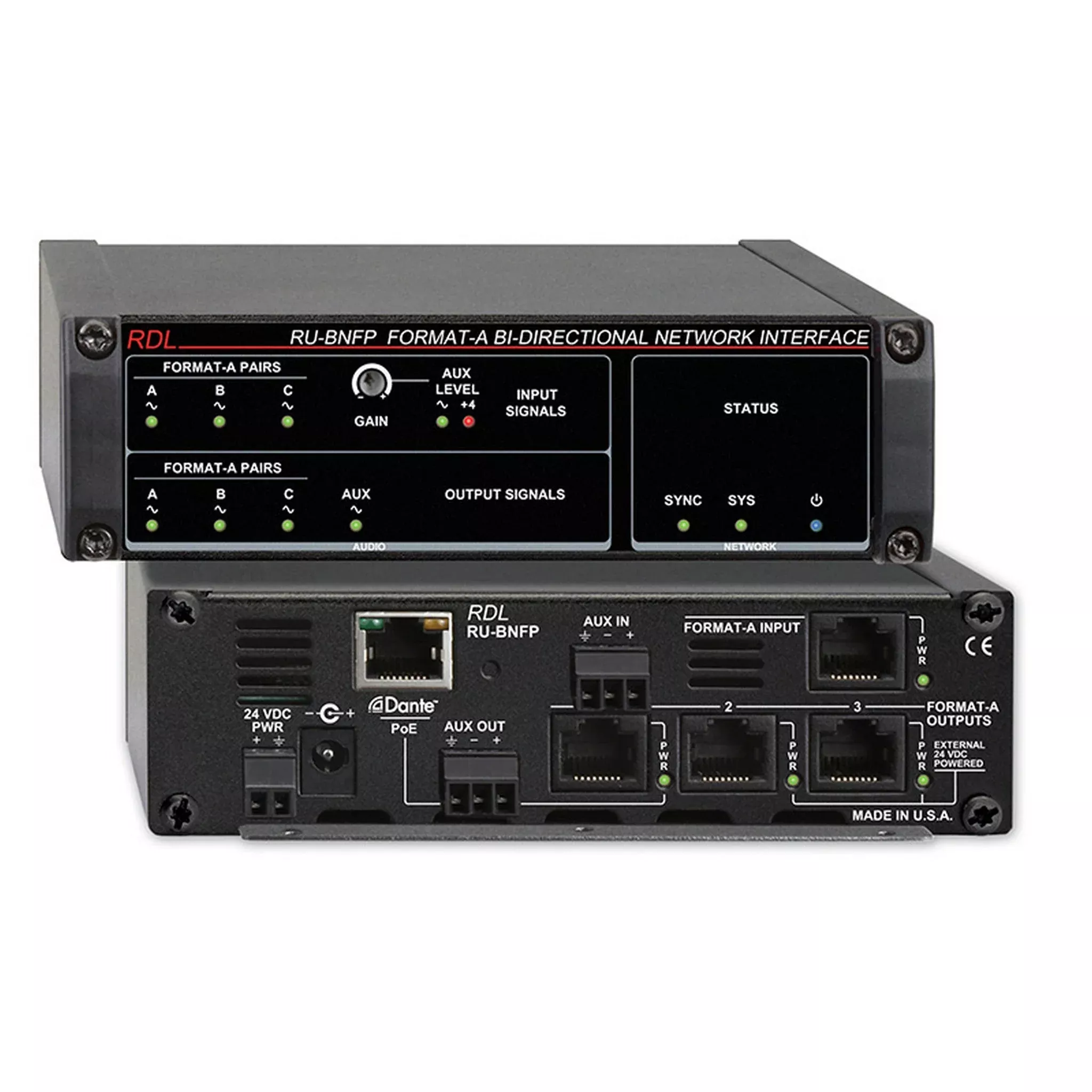

RDL RU-BNFP Format-A Bi-Directional Network Interface, PoE
The RU-BNF modules are Dante audio network interfaceproducts compatible with RDL Format-A twisted pair products. These modules aredesigned to be mounted in equipment racks, closets, conference tables and onshelves or backboards in commercial/industrial installations.
APPLICATION
The RU-BNF is an RDL Format-A sender/receiver that connectsto a Dante-enabled network, providing all the features of an RDL RU-FN Format Ato Network Interface and an RU-NFD Network to Format-A Interface/Distributor.
Network to Format-A Interface/Distributor Section
The RU-BNF converts three Dante audio channels to RDLFormat-A. Each network channel corresponds to Pair A, B or C of the Format-Aoutputs. The unit converts a fourth Dante audio channel to a balancedline-level AUX output.
One front-panel green signal LED corresponds to each of thefour Dante input channels. Received audio level is indicated on thevariable-intensity LED indicator, facilitating setup when a networked computeris not connected at the module’s location.
The Format-A output is distributed to three separaterear-panel RJ45 jacks. Each Format-A output jack provides up to 200 mA of powerto connected Format-A receivers. Multiple receivers may be daisy chained fromone output jack, or may be connected by home run to each of the three outputs.Higher current Format-A receivers, such as RDL D-PSP1A powered Decora-stylespeakers, are to be individually connected to a separate output jack.
The RU-BNF output jacks support the entire range of Format-Areceivers, making each output pair available for end-user connection on variouswall plates, or feeding other equipment using rack-mounted, shelf-mounted orutility Format-A receivers. The wide array of Format-A receivers providecompatibility with commercial audio equipment operating at standardprofessional levels. High resolution digital audio converters coupled withRDL’s renowned analog filters provide superior fidelity with a very low noisefloor. Each Format-A receiver may be connected near the RU-NFD or up to severalthousand feet distant.
The RU-BNF converts the three Format-A audio pairs to Dantenetworked digital audio channels. Each network channel corresponds to Pair A, Bor C of the Format-A input. The unit converts a fourth input, balanced orunbalanced line-level AUX, to Dante.
One front-panel green signal LED corresponds to each of thethree Format-A input channels. Received audio level is indicated on thevariable-intensity LED indicator, facilitating setup when a networked computeris not connected at the module’s location. A Dual-LED VU meter facilitatesadjustment of the front-panel AUX input gain control. The AUX input supportsthe complete range of normal unbalanced and balanced line-level sources.
Key Features
- Converts RDL Format-A and Aux Source to Four Dante NetworkChannels
- Easy Installation with Format-A Connections on RJ45 throughCATx Cable
- Format-A Audio Sources from Pairs A, B and C Converted toDante
- Fourth Dante Audio Channel Fed from Unbalanced or BalancedAux Line Input
- Front-Panel Gain Adjustment with Dual-LED VU Meter for AuxInput
- Signal LEDs Indicate Audio for Each of the Three AudioSource Format-A Pairs
- Converts Four Dante Network Audio Signals to RDL Format-Aand Aux
- Three Dante Audio Signals Feed Format-A Output Pairs A, Band C
- Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBuLine Output
- Format-A Pairs are Distributed to Three Separate Format-AOutput Jacks
- Signal LEDs Indicate Audio for Each of the Four ReceivedDante Audio Signals
- External 24 Vdc Supply Powers All Connected Format-A Modulesthrough RJ45 Jacks
- PoE (RU-BNFP) Powers Format-A Input and Primary Format-AOutput RJ45 Jacks
- High Resolution 24 Bit Analog to Digital and Digital toAnalog Conversion
- Legendary RDL Analog Filtering Enhances Superb AudioPerformance
- LED Indicators Show Network Sync Status
- Normal or Hot-Standby Operation from PoE (Model RU-BNFP)
- Compatible with Wide Array of RDL Format-A Active andPassive Senders and Receivers
- Equipped for Rack Mounting or Surface Mounting
Technical Specifications
Network Connector
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol
Dante
Transmission Rate
100 Mbps
Sample Rates Supported
44.1 kHz, 48 kHz (default)
Bit Depth Supported
24 bits
Audio Operating Levels
-18 dBFS = +4 dBu
Format-A to Network Interface Section
Format-A Input
RDL Format-A RJ45
Format-A Signal Pairs Used (3)
A, B, C
Frequency Response
20 Hz to 20 kHz (± 0.5 dB)
THD+N
<0.1%
Noise below +4 dBu
<-75 dB
CMRR
> 90 dB (50 Hz to 120 Hz, any input pair)
Crosstalk
<80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
AUX Input
Input
Balanced, detachable terminal block
Input Impedance
> 20 kΩ
Input Level for +4 dBu
-16 dBu to +12 dBu, +22 dBu maximum
Frequency Response
20 Hz to 20 kHz (± 0.75 dB)
THD+N
<0.1%
Noise below +4 dBu
<-75 dB
CMRR
> 60 dB (50 Hz to 120 Hz)
Crosstalk
<80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
Network to Format-A Interface/Distributor Section
Format-A Outputs
RDL Format-A RJ45 (3)
Format-A Signal Pairs Used (3)
A, B, C (each Format-A output)
Frequency Response
20 Hz to 20 kHz (± 0.75 dB)
THD+N
<0.1%
Noise below +4 dBu
<-85 dB (pair active); <-100 dB (pair muted)
Crosstalk
<80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
AUX Output
Output
Balanced, detachable terminal block
Output Level
+4 dBu (nominal)
Output Impedance
150 Ω balanced; 75 Ω unbalanced
Frequency Response
20 Hz to 20 kHz (± 0.5 dB)
THD+N
<0.1%
Noise below +4 dBu
<-75 dB
Crosstalk
<80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
Indicators (18)
Power In (1); Power Out (4); Audio Signal LEDs (7); AUXDual-LED VU Meter (2); Network Sys and Sync (2), Ethernet Link and Speed (2)
Power Connections (2)
Power Jack; Detachable Terminal Block
Ambient Operating Environment
0 Degrees C to 40 Degrees C
Power Requirement
24 Vdc @ 150 mA plus connected loads, or PoE (RU-BNFP)
PoE (RU-BNFP)
Class 0, IEEE 802.3af
Dimensions
5.8” (15 cm) W; 1.7” (4.3 cm) H; 5.2” (13.2 cm) D
Package Type
Cardboard Box
Package Dimensions
6 x 6 x 2.625 in.
Shipping Weight
1.72 lbs. (RU-BNF); 1.745 lbs. (RU-BNFP)
