RDL D-J3 Mic/Line Input Assembly-XLR, RCA, Terminal Block

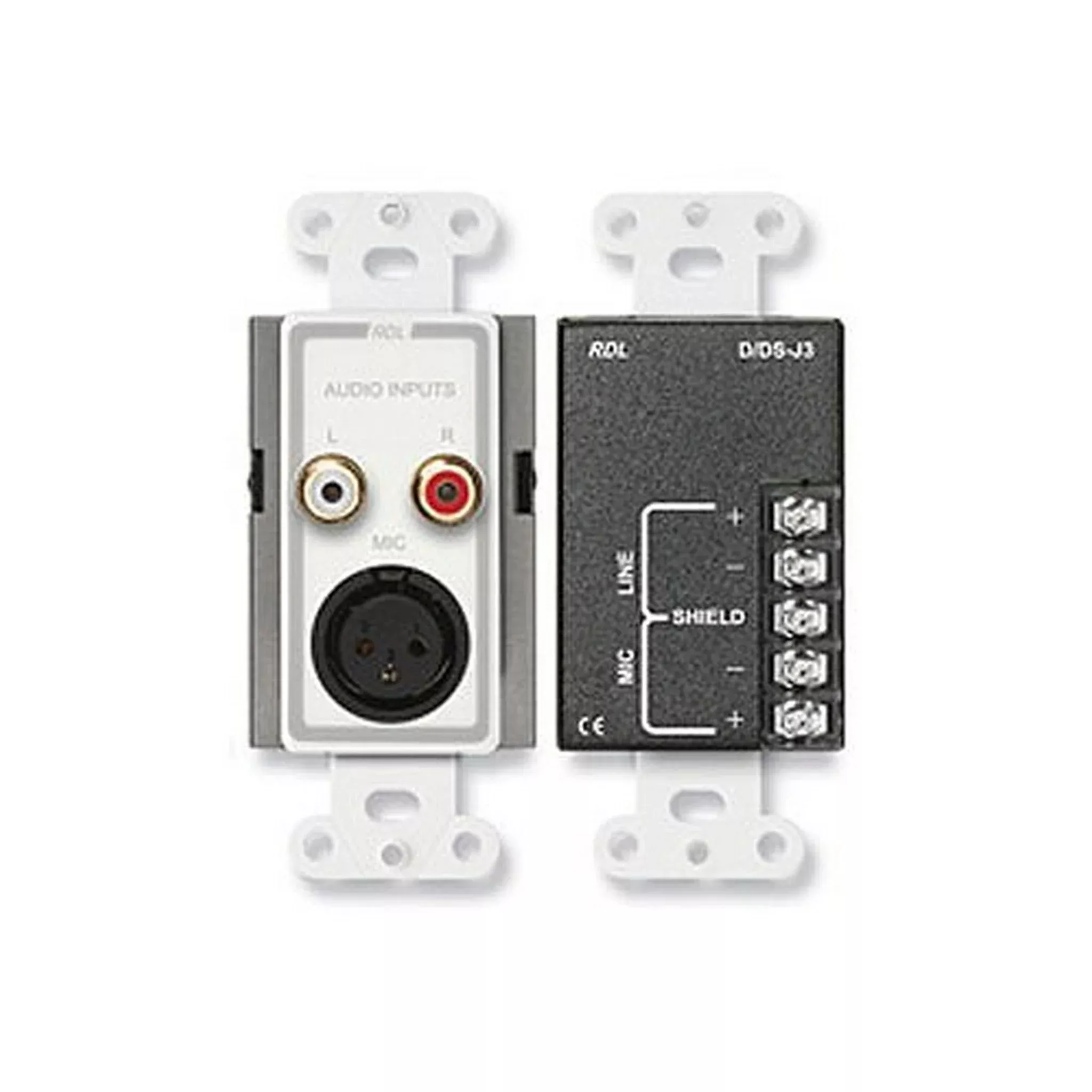

The D SERIES-J3 is a complete audio input panel assembly.The front panel features a female XLR jack and two phono jacks. The XLR isconnected directly to the rear-panel barrier block. The phono jacks areintended for mono or stereo consumer level sources. LEFT and RIGHT are combinedand balanced through audio transformers configured to reject induced hum. Theline-level output is provided on the rear-panel terminal block for connectionto 10 k Ohms or higher input impedance line level module or equipment inputs.The back of the D SERIES-J3 is finished with a metal enclosure clearly labeledfor easy installation.
The D SERIES-J3 fits directly into back boxes, availablefrom RDL to fit cabinets or US or international walls (RDL WB-1U). They may bemounted directly into cabinets or most standard US single gang electricalboxes.
Key Features
- Wall Mounted Audio Inputs
- XLR Microphone Input with Gold Contacts
- Gold Plated Phono Jack Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Mono Output for Unbalanced Mono or Stereo LineInputs
Technical Specifications
Number of Gangs
1
Number of Loaded Sockets
3
Total Number of Sockets
3
Physical Characteristics
Application/Usage
Microphone
Color
Gray
Depth
2.2”
Depth (mm)
54.61
Height
4.1”
Height (mm)
104.902
Weight (Approximate)
5.76 oz
Width
1.7”
Width (mm)
43.18
Miscellaneous
Country of Origin
United States
Environmental Certification
WEEE
Environmentally Friendly
Yes
