RDL D-CIJ3D Consumer Input Jacks, Stereo
The D/S-CIJ3D is the ideal choice in installations requiringstereo unbalanced line level audio sources to feed stereo balanced (orunbalanced) audio lines.

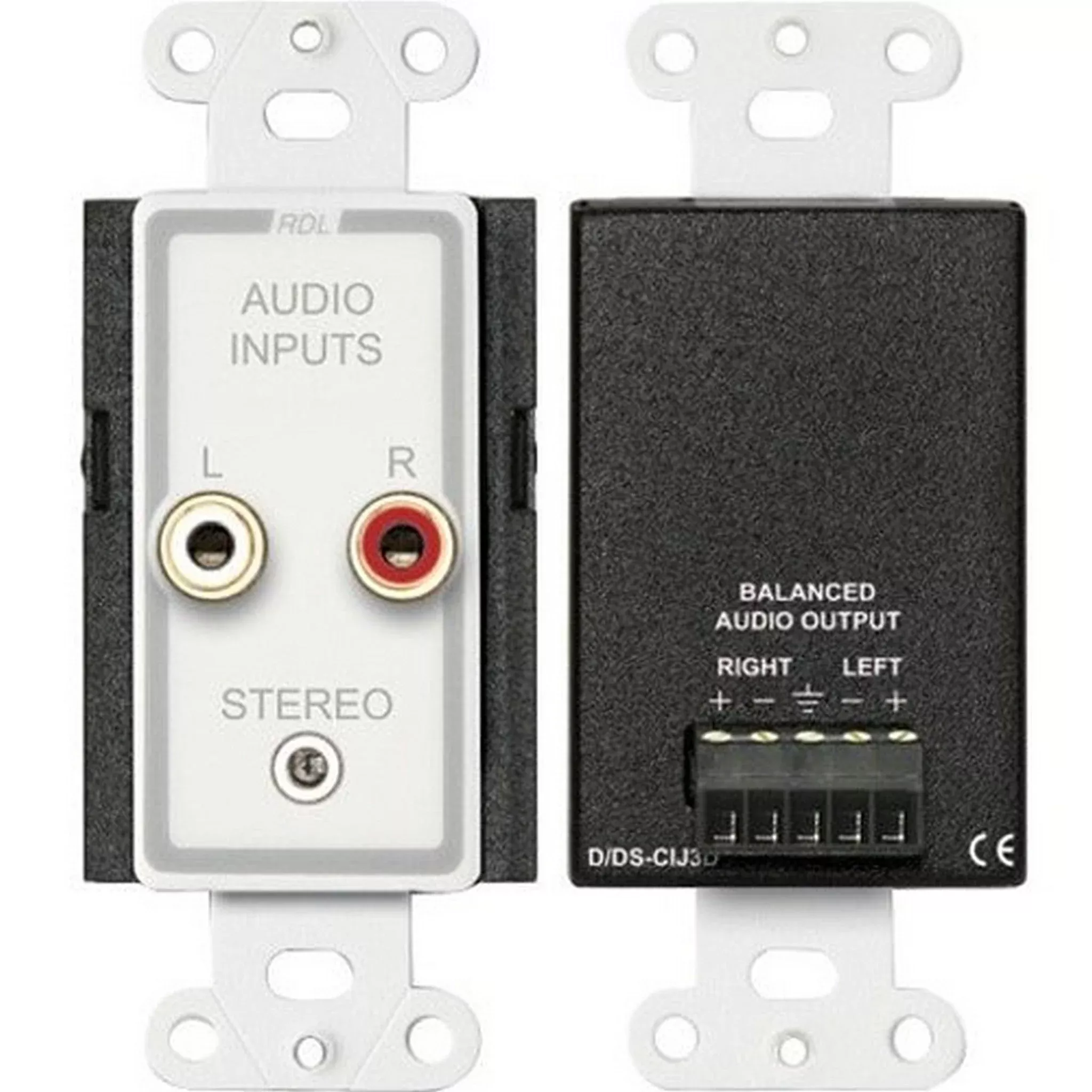

The D/S-CIJ3D is a complete unbalanced line-level audioinput module. The front panel features two gold plated phono jacks and a singlestereo mini-jack, intended for mono or stereo consumer level sources. An inputsignal may be connected to either the phono jacks or to the mini-jack. Theinputs are balanced through audio transformers configured to reject inducedhum. A stereo line-level output is provided on the rear-panel detachableterminal block for connection to 10 k Ohms or higher input impedance line-levelmodule or equipment inputs.
Key Features
- Stereo Inputs to Stereo Outputs
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced to Balanced Conversion Without Gain
- Transformer Isolation for Unbalanced Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Line-Level Output to Feed 10 k? Equipment Inputs
- Output Connections on Detachable Terminal Block
Technical Specifications
Interfaces/Ports
Number of RCA Ports
2
Physical Characteristics
Depth
2.2”
Depth (mm)
54.61
Height
4.1”
Height (mm)
104.902
Weight (Approximate)
6.40 oz
Width
1.7”
Width (mm)
43.18
Miscellaneous
Environmental Certification
WEEE
Environmentally Friendly
Yes
TAA Compliant
No
