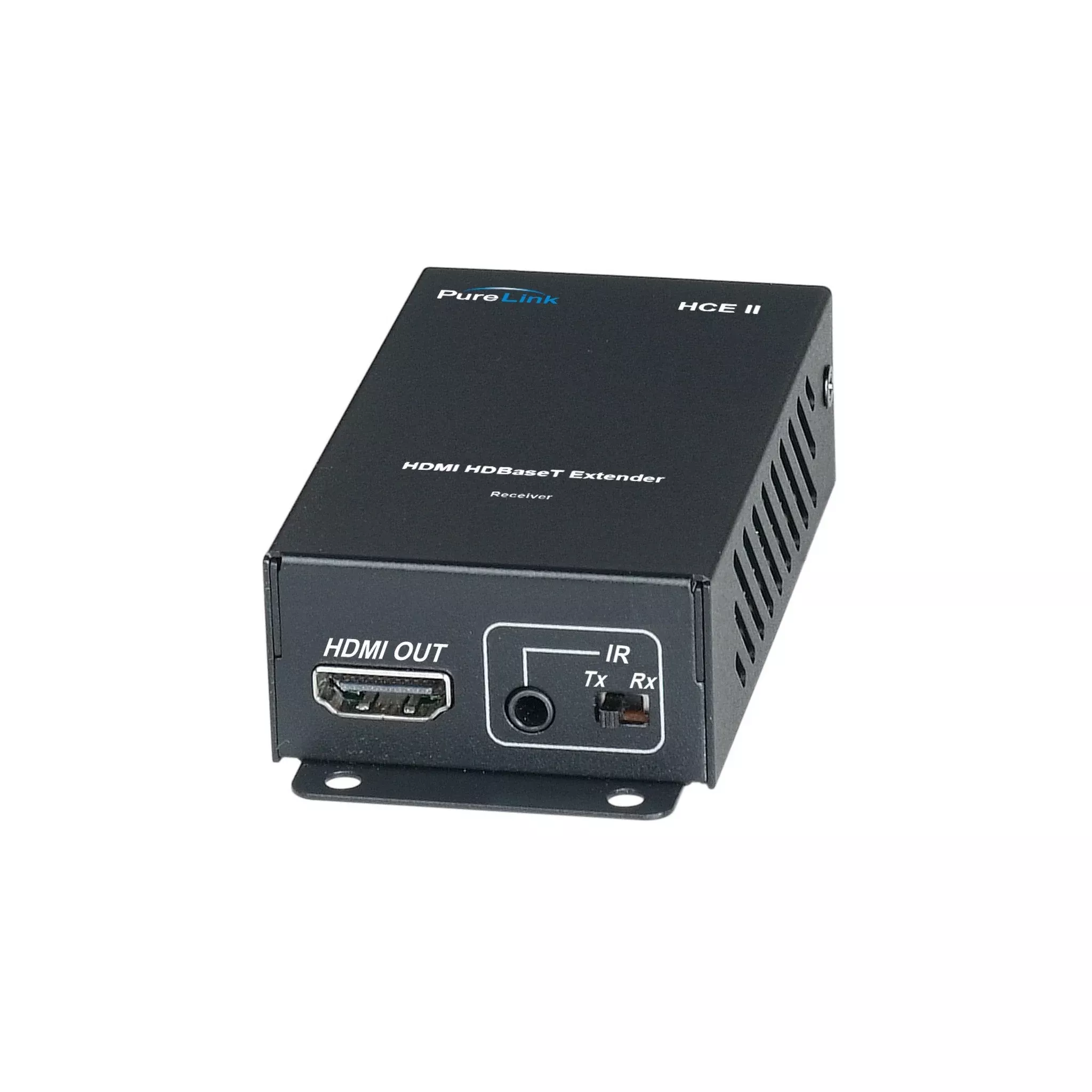

PureLink HCE II Rx HDMI over HDBaseT Extender, Receiver
The HCE II Tx/Rx provides an accessible, easy-to-installsolution for extending HDMI video and embedded audio over long distances usinga single CATx cable. The HCE II supports full 3D content and extendsuncompressed HDCP- protected HDMI content and embedded lossless audio formatswith bi-directional control signals (IR) up to 230 feet (70m) at 1080p and upto 130 feet (40 meters) at 4K/Ultra-HD resolutions.
Key Features
- Integrated HDBaseT technology
- Supports cable lengths up to 230 ft. (70 m) for resolutionsup to 1080p
- Supports cable lengths up to 130 ft. (40 m) for resolutionsup to Ultra HD/4K
- HDMI v1.4 support
- IR control
- Ultra slim design
Technical Specifications
Performance
Supported Distance
up to 130 ft. (40m) at Ultra HD/4K 30Hz and up to 230 ft.(70m) at 1920×1200 60Hz or 1080p 60Hz
Supported Resolutions
VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, UltraHD (4K) @ 30Hz
Compliance
HDMI 1.4, HDCP 2.2
Video Bandwidth
10.2 Gbps
IR Extension
Bi-directional IR control
Power Supply
DC 5V, 2A
Operating Temperature
32F ~ 131F (0 Degrees Celsius ~ 55 Degrees Celsius)
Storage Temperature
-4F ~ 185F (-20 Degrees Celsius ~ 85 Degrees Celsius)
Relative Humidity
10% ~ 80%
MTBF
50,000 hours
Enclosure
Product Dimensions
4.01 x 3.34 x 1.02 inches / 102.1 x 85.0 x 26.0 mm
Product Weight
0.61lbs (0.28Kg)
Warranty
Limited Warranty (3-Years)
