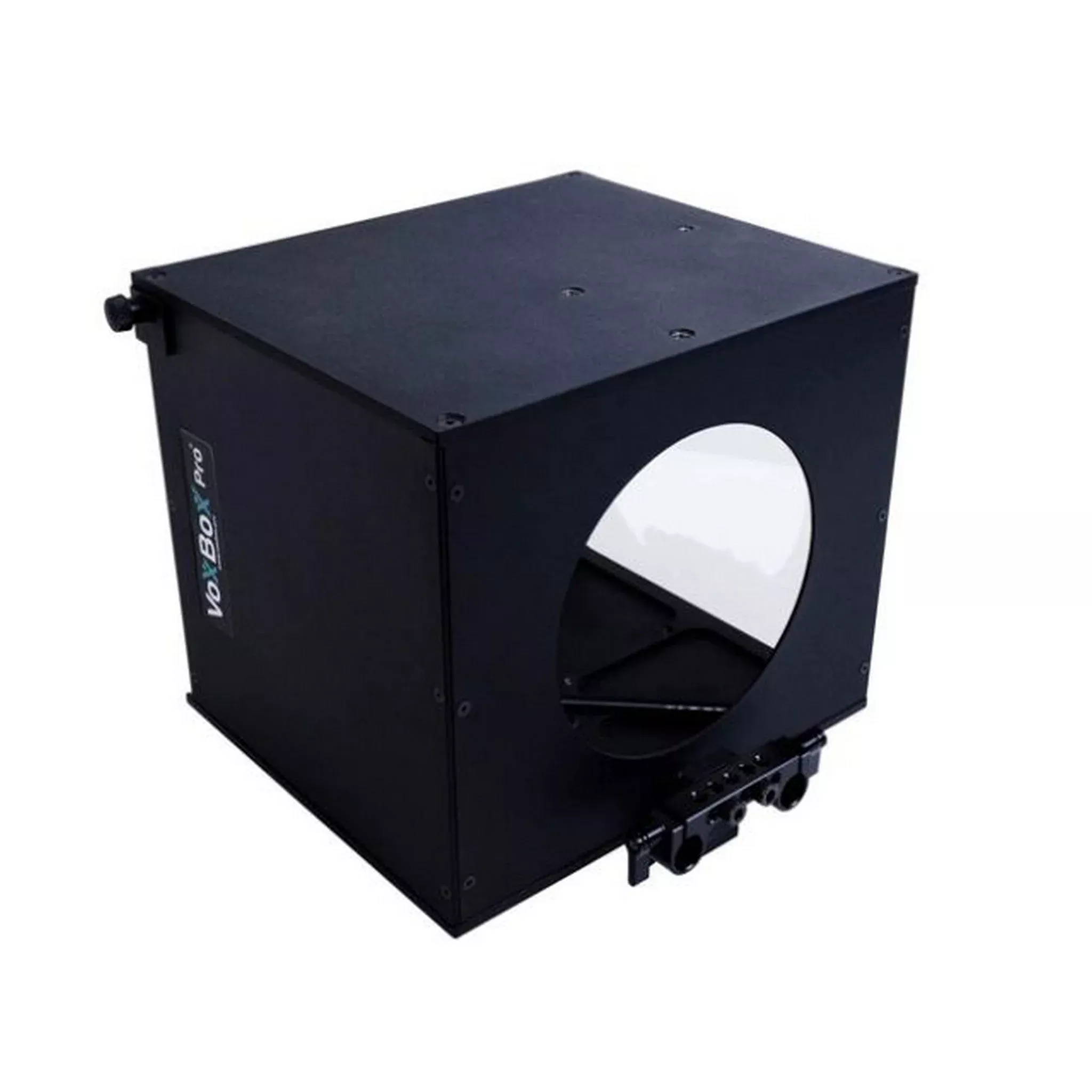

PrimeLight Design VoxBox Pro MKII Mirror Box Kit
The VoxBox Pro is a mirror box that positions in front ofthe camera lens. It allows filmmakers to shoot down-the-lens interviews whilemaintaining eye contact between the interviewer and the subject.
How the VoxBox Pro Works
The interviewer and subject see each other through themirror, but the subject is actually looking down the lens, resulting in directeye contact with the audience. It relaxes the subject and allows them todeliver powerful stories and credible interviews. There are no additionalcameras, TV screens or technology required.
Be ready to roll in minutes
There are no cumbersome tripod plates or adaptors to fit -the unit simply attaches in place of your matte box to existing 15mm rails. Ifyou don’t have rails or you are using a DSLR, the kit includes a 16mm receiverallowing it to be mounted on a standard lighting stand.
Portable and Flexible
Challenging spaces are no problem for the VoxBox Pro – theunit can be quickly configured to allow the interviewer to sit at one ofseveral possible positions. For shooting-producers/directors or cameraoperators, the unit comes with a side mirror which allows operation of thecamera whilst maintaining eye contact with the subject through the VoxBox Pro.This flexibility allows you to quickly adapt to each location.
Converts to a Teleprompter
Switch from interview mode to Teleprompter mode in secondsusing the tablet holder (included with the kit).
Setup in Minutes
No fiddly tripod plates to attach – just slide the VoxBoxPro onto your camera rails and attach your phone or tablet.
Fully Adjustable
The tablet holder will clamp any device from a mobile phoneto a tablet (max size between the clamps: 188mm).
Remote Interviews
Use video calling services on your tablet to conductface-to-face interviews – remotely!
Designed for busy crews
With schedule pressures on location, the VoxBox Pro makeslife easier when shooting down-the-lens interviews. It can be stored fullyassembled in the case so you’ll always be ready to shoot in minutes. Thisultra-quick setup allows you to spend more time getting the shot right – nottrying to attach cumbersome adaptors and balance tripod plates. The sturdy,aluminum construction withstands day-to-day handling and uses hardware fixingsthroughout.
Everything you need, in one box
Owning the VoxBox Pro means you can offer your clients thisunique kit without the inconvenience of hiring similar units. There are noextras to purchase – everything you need is in the case.
Key Features
- Fits in seconds to existing 15mm rails, or to a lightingstand
- Lightweight aluminum construction – built to last a lifetime
- Converts to a Teleprompter using the included tablet holder
- Complete with superior quality hard case and laser-cut foam
- Can be stored in the case fully rigged ready for instant use
Technical Specifications
In the Box
Beamsplitter glass
Tilting side mirror
Tablet holder
Doughnuts (63, 80 & 112mm)
16mm receiver
Printed instruction manual
Hard Case with laser-cut foam
Weight of main box with beamsplitter glass
1.9kg (4.1lbs)
Dimensions of main box, without mounts
W254 x H205 x D205mm (10 x 8 x 8 inch)
Aperture at rear of main box
140mm (5.5 inch)
Widest focal length (super 35 sensor)
approx 24mm
Widest focal length (full-frame sensor)
approx 30mm
Tablet holder maximum device size
188mm (7.4 inch) (measured between the two clamps)
Light loss through beamsplitter glass
<1 stop
Case & Packaging
External Dimensions
W555 x H306 x D428mm (21.8 x 12 x 16.8 inch)
Temperature Rating
-30 / 90°C (-22 / 194°F)
Features
IP67
Packaging dimensions, as shipped
L580 x W440 x H340mm (22.8 x 17.3 x 13.3 inch)
Weight including contents
8.8kg (19.4 lbs)
Total weight, as shipped
9.8kg (21.6 lbs)
