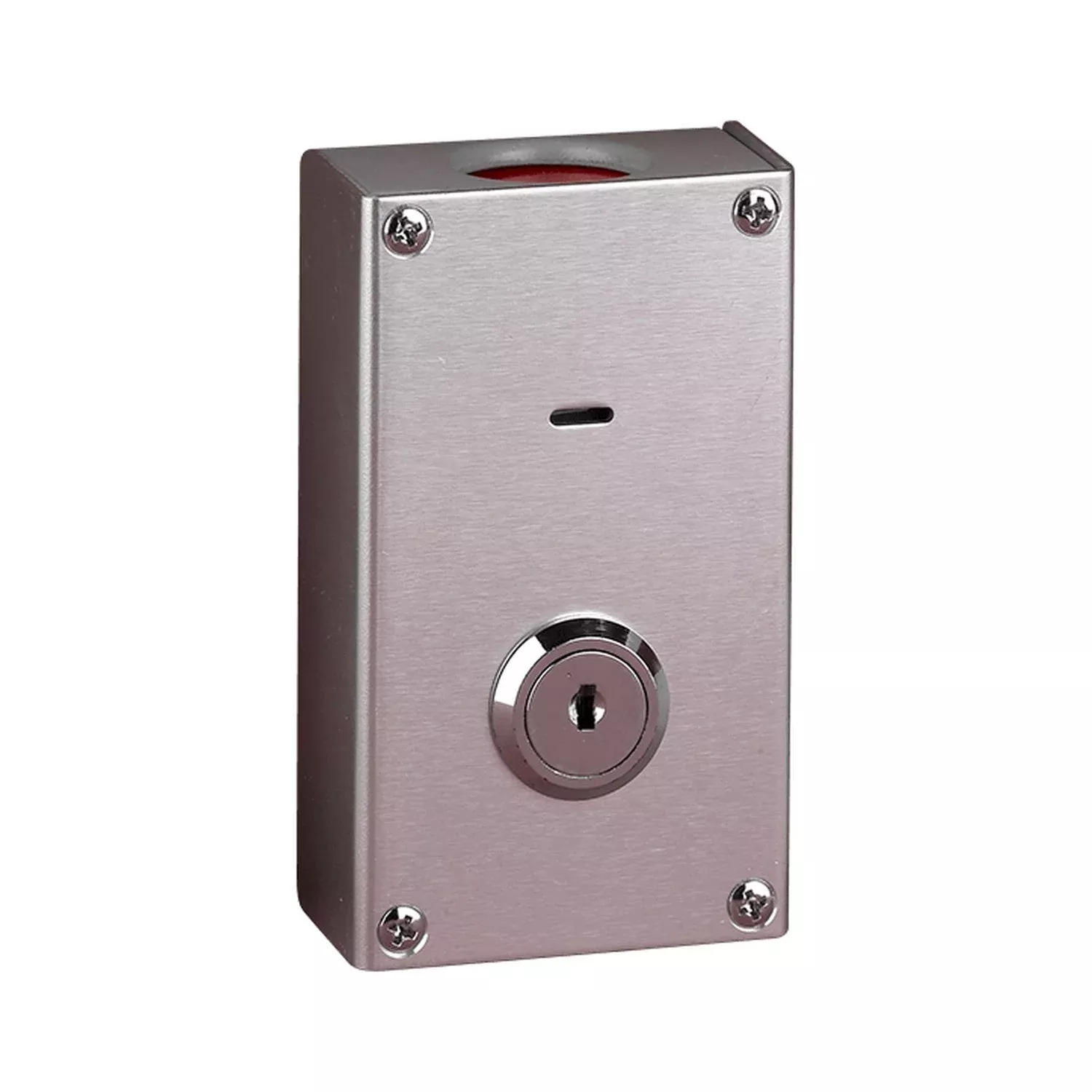

Potter HUSK-20 Latching Hold-Up Switch
The HUSK-20 is a mechanical hold-up switch designed forsilent operation. It is activated by using one finger to press down on theswitch. When activated, the switch mechanism locks, insuring an immediate alarmsignal. A status window designed on top of the hold-up switch indicates itscondition: RED (alarmed) and BLUE (armed). To reset the HUSK-20, use the keyprovided. The housing is made of metal and is painted gray.
The hold-up switch sends a signal to a dedicated 24-hourhold-up circuit of a burglar control panel. That signal in turn will send theimmediate signal to police or central station.
Key Features
- Form C contact
- Metal housing
- Key reset
- Silent operation
- Status window indicator (armed, alarmed)
- Mechanical operation
- Terminals for easy wiring
Technical Specifications
Material
Metal
Environmental Conditions
Maximum Operating Temperature
176 Degrees F (80 Degrees C)
Maximum Operating Temperature (Degrees F)
176
Minimum Operating Temperature
-4 Degrees F (-20 Degrees C)
Minimum Operating Temperature (Degrees F)
-4
Physical Characteristics
Application/Usage
Alarm
Depth
1.2”
Depth (mm)
30.226
Height
3.7”
Height (mm)
92.964
Product Color
Gray
Width
2.1”
Width (mm)
53.975
Power Description
Input Voltage
125 V AC, 125 V DC, 30 V DC
Product Information
Contact Type
Open/Closed
Installation Type
Commercial
Miscellaneous
Additional Information
Terminals for easy wiring
Mechanical operation
Form C contact
Country of Origin
United States
Features
Key Reset, LED Indicator, Sound/Status Indicator
