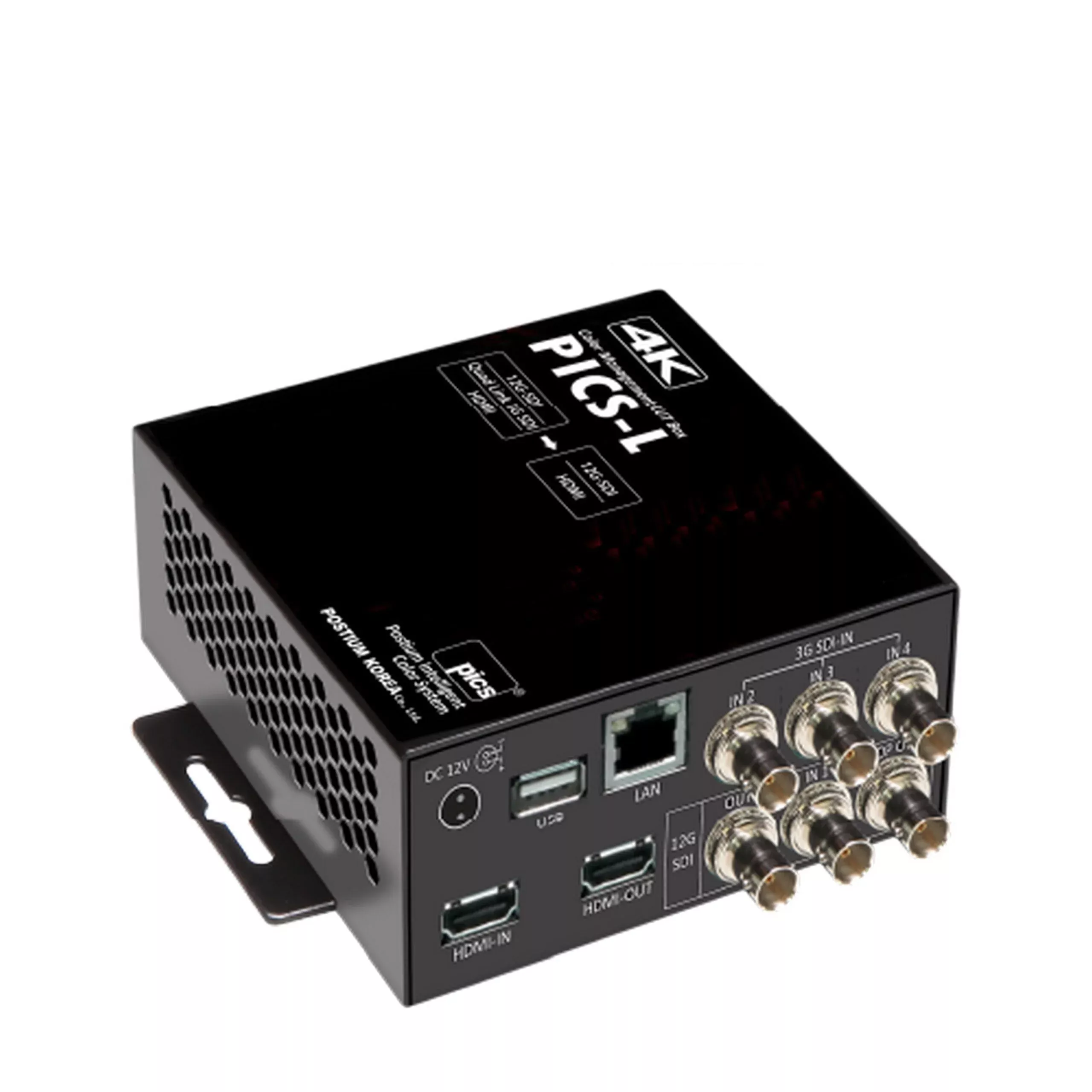

Postium PICS-L Color Management LUT Box
PICS-L (Postium Intelligent Color System LUTbox) is astand-alone colorspace, resolution, and signal format processing unit thatutilizes our PICS control software running on a connected PC. The PICS-L isdesigned to profiling and calibrate displays, creating, converting, andapplying 3D LUTs to match multiple display technologies across image monitoringworkflows. The PICS-L supports up/down-conversion between 4K and HD.Additionally, 12G-SDI single link, 3G quad link and HDMI video input can beoutput to 12G-SDI single link and HDMI.
3D LUT Select
3D LUT 1∼10 – For 3D LUT 1-10, you canassign a 3D LUT by importing “. Cube” files.
System Control
Back-up – Exporting/Importing setting data to PC available.Allows much easier control
of building the systems
Technical Specifications
ITEMS
PICS-L
Input
4 x BNC
1 x 12G SDI, 3 x 3G SDI
1 x HDMI
2.0 HDMI Input
Output
2 x BNC
1 x 12G SDI, 1 x 12G SDI Loop Out
1 x HDMI
2.0 HDMI Output
General
LAN
1 x LAN in
USB
1 X USB MEMORY STICK
POWER
1 X RJ45
DIMENSIONS (WxHxD)
110 x 137 x 44mm / 4.33 x 5.93 x 1.73 inch.
WEIGHT
300g / 0.66 Ibs
