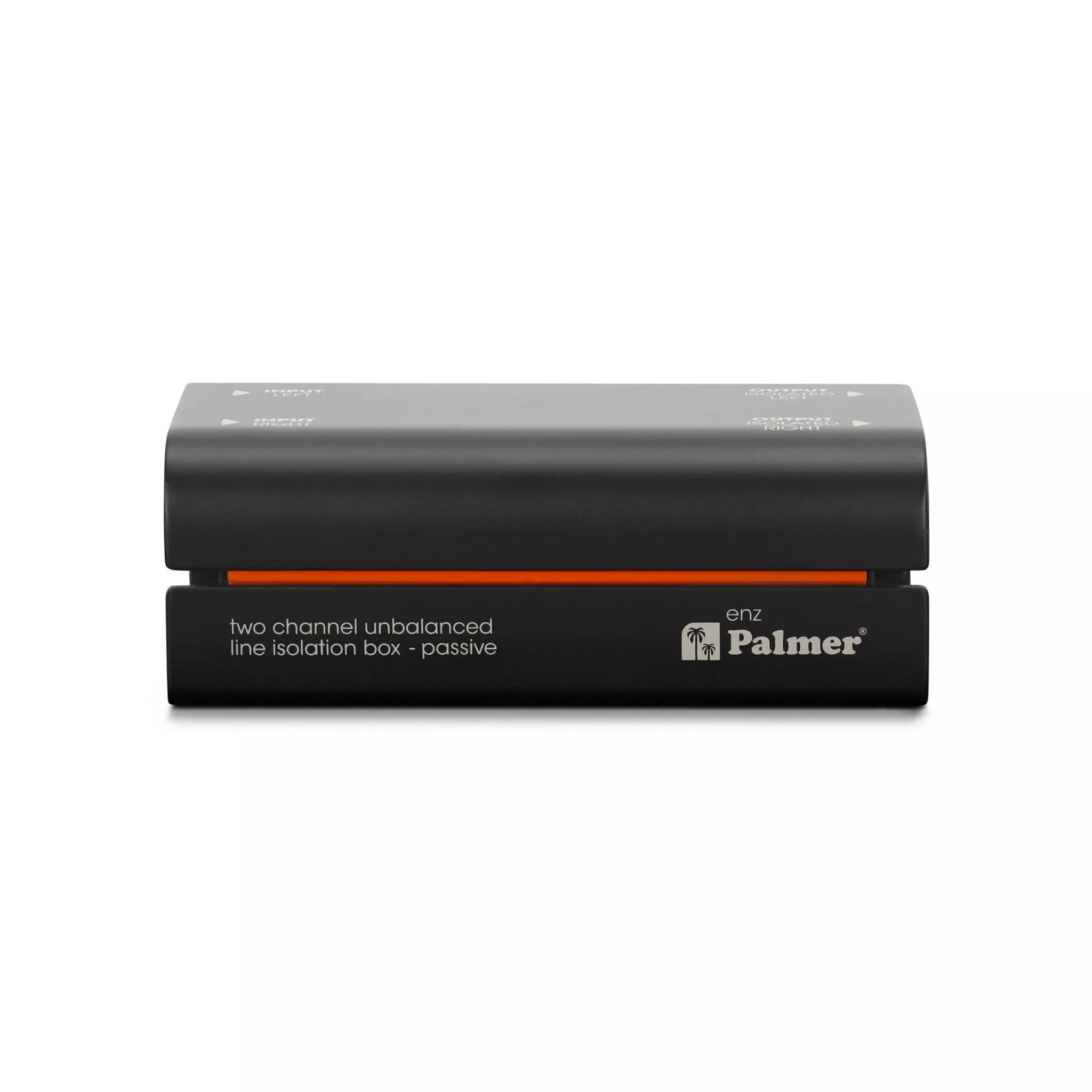

Palmer enz 2-Channel Unbalanced Line Isolation Box
When connecting a media player or a laptop to a HiFi- or PAsystem, you often experience noise such as hum and buzz caused by ground loops.With the Palmer enz,
With the Palmer enz, you can be sure that such annoyinginterference signals do not occur anymore!
The cause of this interference lies mostly in groundpotential differences, which result in stray DC currents via the audio lines.The solution is to place a transformer between the two devices to isolate theground line. Palmer enz has two of these transformers for its two channels. Itsinputs and outputs are RCA sockets, which are common for HiFi and consumerequipment. However, the sound quality will also satisfy professionals, sincethe sound remains unaltered.
This makes the enz Line Isolation Box a useful problemsolver for home or car HiFi systems and PA systems from conference rooms tonightclubs. A Line Isolation box simply belongs in every DJ’s kit. Wheneverthere is buzzing and humming, the Palmer enz brings silence with a touch of abutton.
Key Features
- Analog Speaker simulation for authentic guitar sound withoutmic
- Three sound settings: normal, mellow, bright
- Can be used as DI box with speaker simulation bypassed
- Balanced XLR output
- Operation either between amplifier output and speaker or onthe line output
- Switchable pre-attenuation for adjustment to amp levels
- No humming: galvanic transformer isolation
- Ground lift switch
- Simple and fail-safe, no power supply required
- Solid casing made of aluminum and steel
- Incl. rewritable tour label for attachment onto the back ofthe ilm
- Engineered in Germany
Technical Specifications
Product type
Speaker Simulation DI-Box
Type
passive
Channels
1
Transformer isolated
Yes
Inputs
1
Input type
unbalanced
Input connectors
6.3 mm jack
Outputs
1
Output type
balanced
Output connectors
XLR
THRU outputs per channel
1
Ground lift switch
Yes
More features
Tone: Bypass, Normal, Bright, Mellow
Housing material
Aluminum continuous casting
Height
140 mm
Width
50 mm
Depth
68 mm
Ambient temperature (in operation)
– 20 – 70 °C
Relative Humidity
<80 %, not condensing
Accessories (included)
Inscription label (tour label), rubber feet
Weight
0,445 kg
Audio
Max. input level (<1% THD, 20 Hz)
+12 dBu
Max. input level (<1% THD, 1 kHz)
+32 dBu dBu
Frequency response (±1 dB, relative 1 kHz)
10 Hz – 60 kHz
Input impedance (1 kHz, max. Level, -10dBV)
8,8 kOhm
Output impedance (1 kHz, max. Level, -10dBV)
125 Ohm
THD (30 Hz, +4 dBu, unity, unweighted)
<0,25 %
THD (1 kHz, +4 dBu, unity, unweighted)
<0,009 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)
<0.005 %
Transformer ratio
1:5
