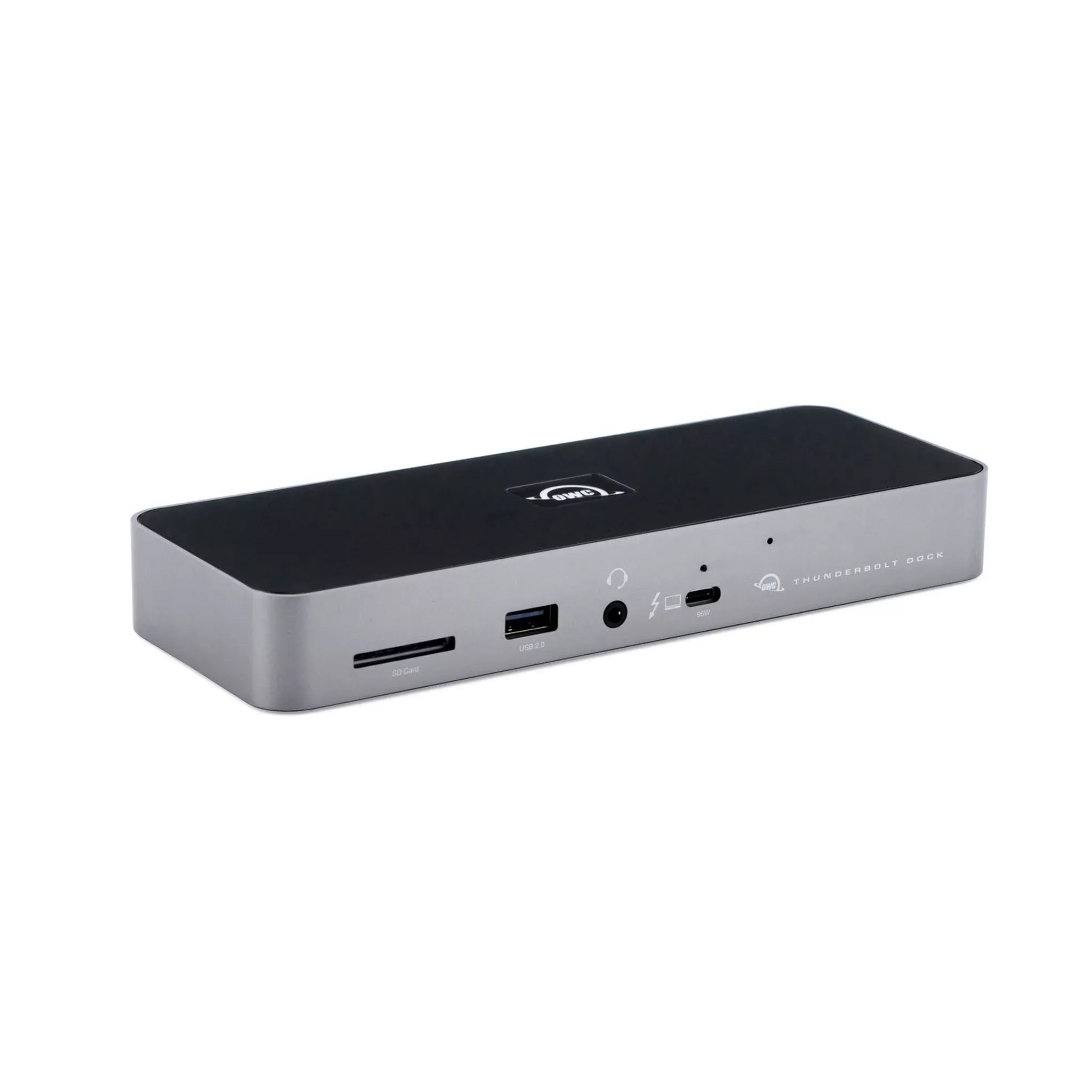

The OWC 11-Port ThunderboltDock enable connections to past, present, and future devices. You can linkup to two 4K displays or a 5K/6K/8K display, high-performance storage like NVMeSSDs, A/V mixers, phones, tablets, and desktop accessories such as keyboards ormice with the OWC 11-Port Thunderbolt Dock. This dock opens up a world of USBand Thunderbolt accessories for expanding your capabilities.
Connect-It-All Solution
The latest Thunderbolt interfaceuses a universal USB-C connector for data transfer, video output, and devicecharging. The Thunderbolt ports on the OWC 11-Port Thunderbolt Dock utilize thesame USB-C connector, providing a multi-connectivity solution for current andfuture Thunderbolt and USB-C devices.
Connectivity and Convenience
Enhance Thunderbolt functions onyour Apple silicon M1 or M2 Mac, any Apple ‘Intel’ Mac with Thunderbolt 3, orThunderbolt 4 PC with the OWC 11-Port Thunderbolt Dock. You can also use itwith non-Thunderbolt USB-C devices like Chromebooks and iPads, offering accessto portable gear, headphones, and SD cards, along with Thunderbolt and USBdevices, Gigabit Ethernet, and an SD card reader.
Plug It All In
Maintain compatibility with yourdevices as if they were directly connected to your computer.
Reliable Streaming + Sharing
Ideal for IP-based workflows andsecure network access.
Reinvent the Chain
Establish multiple independent”tree branches” to connect several bus-powered devices.
Speedy Content Transfers
Quickly import photos and videosvia the SD card reader.
Powerful
Delivers 96W of power for laptopcharging and power delivery to connected devices.
Adjustable LED
Customize the lighting to suityour workspace.
More Ports = More Devices
Connect additional storage,displays, headphones, mics, and various accessories.
Securable
Features both Kensington SecuritySlot and Nano Security Slot for anti-theft protection.
Thunderbolt Certified
Reliable construction by OWC,compatible with both Mac and Windows.
Cable Included
Comes with a 0.8M Thunderboltcable in the package.
Reimagining the Daisy Chain
Create three separate “treebranch” device chains for better device management without affecting otherconnections.
Plug In Multiple Bus-PoweredThunderbolt Drives
Connect multiple portableThunderbolt drives directly to experience maximum speed and performance.
SD Card Reader
Easily transfer and store creativefiles with the SD card reader at speeds of up to 312MB/s.
Get Wired
Enhance your network connectionwith the Gigabit Ethernet port for fast and reliable data transfers.
A Higher Vision
Use the OWC 11-Port ThunderboltDock to connect high-resolution displays for detailed graphic work, videoediting, and multitasking capabilities.
Key Features
- Experience the ultimate Thunderbolt performancewith the Thunderbolt you’ve always desired
- Enhance your computer with additional fullyfunctional Thunderbolt ports
- Create multiple independent connections with thereinvented Daisy Chain feature
- Connect and charge USB devices with theconvenience of four USB ports
- Power up your laptop with up to 96W of chargingpower
- Connect more storage, displays, accessories, andmore to expand your device capabilities
- Enjoy the same compatibility as if your deviceswere directly plugged into your computer
- Stream and share reliably with Gigabit Ethernetfor IP-based workflows and secure network access
- View photos and movies at lightning-fast speedswith the SD card reader
- Plug in headphones and microphones into theaudio combo jack for enhanced audio experience
- Customize the LED illumination to suit your workenvironment
- Secure your device with both Kensington SecuritySlot and Nano Security Slot for anti-theft cabling
- Trust in Thunderbolt Certified and OWCdependability for Mac and Windows devices
- Optimize your device’s health, performance, andfield upgrade management with Innergize™ Enabled software
- Enjoy peace of mind with a 2 Year OWC LimitedWarranty.
Technical Specifications
Memory Card Slots
(1) SD
Power Delivery
Thunderbolt 4 host port providesup to 96W of power to the host computer.
Thunderbolt 4 device ports (forexternal drives and other devices) provide 15W of power.
USB port provides up to 1.5A ofpower for bus-powered drives and device charging.
Device Ports
(1) Host Port – Thunderbolt 4(USB-C) up to 40 Gb/s (5000 MB/s)
(3) Thunderbolt 4 (USB-C) Ports
(3) USB 3.2 Gen 2 Type-A Ports upto 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible
(1) USB 2.0 Port
(1) Gigabit Ethernet (GbE) RJ-45Port
(1) 3.5mm Stereo AudioInput/Output Combo Port
Display Support
Up to one 8K display @ 60Hz,
or two 4K displays @ 60Hz,
or one 4K display @ 120Hz,
or one 4K display @ 60Hz,
or two 5K displays @ 60Hz
Display Support by Port
Thunderbolt 4: Up to 8K @ 60Hz or4K @ 120Hz via a native Thunderbolt 4 display or other display that supportsUSB-C connections and DisplayPort 1.4
Ethernet Speeds (RJ-45)
1Gb/s “Gigabit”(1000BASE-T)
100Mb/s (100BASE-T)
10Mb/s (10BASE-T)
Data Rate
Up to 40Gb/s
Chipset / Controller
Thunderbolt: Goshen Ridge
USB: Cypress/HX3PD
Ethernet: RTL8153B
SD Reader: GL3226
Host Interface Requirements
Thunderbolt (USB-C) or USB (USB-Cor USB-A1) port
Mac OS Compatibility
macOS 11.x Big Sur
macOS 12.x Monterey
macOS 13.x Ventura
macOS 14.x Sonoma
PC OS Compatibility
Windows 10 64-bit Edition
Windows 11
Mobile OS Compatibility
iPadOS 17
iPadOS 16
iPadOS 15
iPadOS 14
iPadOS 13
Android 13.x
Android 12.x
Android 11.x
Other OS Compatibility
Chrome OS
External Power Adapter
Yes
Power Supply
External UL-listed universalauto-switching power supply
Need an additional power supply?Secondary/replacement power supplies are also available.
AC Input
100-240V, 50-60Hz, 2.5A
DC Output
+20V, 6.75A
Wattage
135W
Replacement Adapter Part Number
OWCPWR20V150W (sold separately)
Security Slot
Yes
Housing Color
Chassis: Space Gray
Covers: Black
Housing Material
Chassis: Aluminum
Covers: Polycarbonate
Dimensions
Height: 2.6 cm (1.0 in)
Length: 7.3 cm (2.9 in)
Width: 19.8 cm (7.8 in)
Weight
400.0 g (0.88 lbs)
Certifications
BSMI
CE
FCC
RCM
VCCI
RoHS Compliant
Yes
Reach Certification
Yes
Ambient Temperature
Operating: 32°F to 86°F (0°C to30°C)
Non-Operating: -4°F to 140°F(-20°C to 60°C)
Altitude
Operating: -304.8 m to 3,048.0 m(-1,000 ft to 10,000 ft)
Non-Operating: -304.8 m to12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
Operating: 5% to 95%non-condensing
Non-Operating: 5% to 95%non-condensing
Installation / Use Cases
- Expanding laptop and desktop connectivity using an 11-port Thunderbolt dock
- Connecting high-performance storage, displays, A/V mixers, phones, tablets, keyboards, mice, and other accessories through Thunderbolt and USB ports
- Charging a host computer with up to 96W power delivery
- Creative workflows requiring SD card transfer speeds up to 312MB/s
- Display setups using dual 4K displays, dual 5K displays, or single 8K display support
- Networked workflows requiring Gigabit Ethernet and secure wired access
- Workstations needing Kensington Security Slot and Nano Security Slot for anti-theft cabling
Package Contents
- OWC 11-Port Thunderbolt Dock
- 0.8M (31″) Thunderbolt Cable
- External Power Supply and Power Cable
- Quick Start Guide for OWC Thunderbolt Dock
- User Guide for OWC 11-Port Thunderbolt Dock
- OWC Dock Ejector for Mac and Windows (Software Download)
- User Guide for OWC Dock Ejector
- 2 Year OWC Limited Warranty
