A compact and cost-effectiveamplification and processing solution is now available for NEXO ID and ePSSeries sound systems used in retail, hospitality, houses of worship, andcorporate settings.
Introducing the Dante-equipped4-channel nanoNXAMP4-D, which offers 4 x 250W output through reliable Class Damplifiers with ultra-low distortion and SMPS with PFC. This system ensures thesame high-quality sound and sonic characteristics as NEXO’s larger NXAMPMK2 TDControllers. The processing features FIR filtering for precise system EQ andlinear phase compatibility, with presets tailored for a select range ofspeakers from NEXO’s renowned ID and ePS Series.
The incorporation of mixer andmatrix functions during onboarding helps lower costs for smaller installations.These functions allow for setup and remote control through an embedded web pageaccessible via Ethernet or integrated Wi-Fi.
TRADEMARK NEXO SOUND QUALITY
Compact yet feature-rich, theultra-low distortion and exceptionally reliable Class D amplification supply 4x 250W, ensuring the same renowned sound quality and unique sonic character asNEXO’s larger NXAMPMK2 TD Controllers. The processing integrates FIR filteringfor accurate system EQ and linear phase compatibility, offering presetstailored for a selected range of speakers from NEXO’s popular ID and ePSSeries.
ADAPTABLE, CONTROLLABLE
The inclusion of mixer and matrixfunctions during on-boarding helps to decrease costs in smaller installations.Additionally, wall remote controls are provided and can be set up to enableusers to choose sources and manage volume levels.
A WEB-BASED GUI FOR SYSTEMDESIGN AND SET UP
Setting up and remote controllingis facilitated through an embedded web page accessible via Ethernet or Wi-Fi.It offers intuitive control over various parameters such as Inputs, Areas,Output Routing, NEXO Speaker Processing Presets, Delays, and SystemInformation.
READY FOR EXTERNAL CONTROL
The nanoNXAMP4 works seamlesslywith NEXO’s NeMo remote control and monitoring tools for networked NEXO PoweredTD Controllers, as well as with standard third-party remote control protocolsin the industry.
SAVE SPACE
The nanoNXAMP4 takes up only halfa rack width and 1U height, enhancing channel density. It features anintegrated DSP that provides a genuine 4x In / 4x Out setup with the option forDante connectivity, eliminating the necessity for external processing. Thisresults in notable space efficiency compared to current NEXO amplifier options,along with cost savings and reduced cabling.
SAVE ENERGY
The nanoNXAMP4 not only conservesmoney and rack space but also saves energy by utilizing a range of smartstandby modes, contributing to its top-notch Energy Star rating.
Key Features
Speaker controller with Danteintegration and four power amplifier channels in a compact 1U, 1/2 rack design
Supports four Balanced (+unbalanced) Analog inputs (line or microphone level), SPDIF digital in/out, andfour Dante or AES67 inputs (nanoNXAMP4-D only)
Features four channel Class-Damplifiers with ultra-low distortion, delivering 4 x 250 Watts/4 ohm forexceptional sound quality
Equipped with a Universal PowerSupply (100~240 Volts) utilizing PFC technology for optimal efficiency andconsistent current flow
Allows for remote control viaintegrated WiFi Access Point or through the ethernet port for convenientoperation.
Technical Specifications
Number of Channels
4x amplifiers channels, 2 by 2bridgeable
Max. Output Voltage (No Load)
4x 70 Volts
Max. Output Power (4 ChannelsMode /8 Ohms Load per Channel)
4x 200 Watts
Max. Output Power (4 Channels Mode/4 Ohms Load per Channel)
4x 250 Watts
Max. Output Power (2 Channels Mode/8 Ohms Load per Channel)
2x 500 Watts
Power Consumption (Idle)
20 Watts
Power Consumption (Standby)
<2 Watts
Power Consumption (Standby withoutNetwork)
<0.5 Watts
Frequency Response
+0/-0.25 dB from 20 Hz to 20 kHz
Input Impedance / InputSensitivity
20 KΩ / +13 dBU
Dynamic Range / TDH + N
>106 dB A-weighted
Latency
1 ms on a flat setup
Audio AD and DA Converters
24 bits @ 48 kHz
Processing
64 bits processing DSPs
Analog Audio Inputs
4x balanced analogue inputs onEuroblock 3.5 mm pitch or unbalanced on RCA
Power Outputs
4x Euroblock 5 mm pitch outputs
Digital audio Input/Output
1x SPDIF 2ch input/output on RCA +1x DanteTM 4ch input (nanoNXAMP4-D only)
GPIO Port
1x Euroblock 3.5 mm pitch with 4xGlobal purpose Inputs and 1x Global purpose Output
Network Inputs
1x 100 Mb Ethernet port (Remotecontrol)
Mains Sockets
1x IEC C14 socket

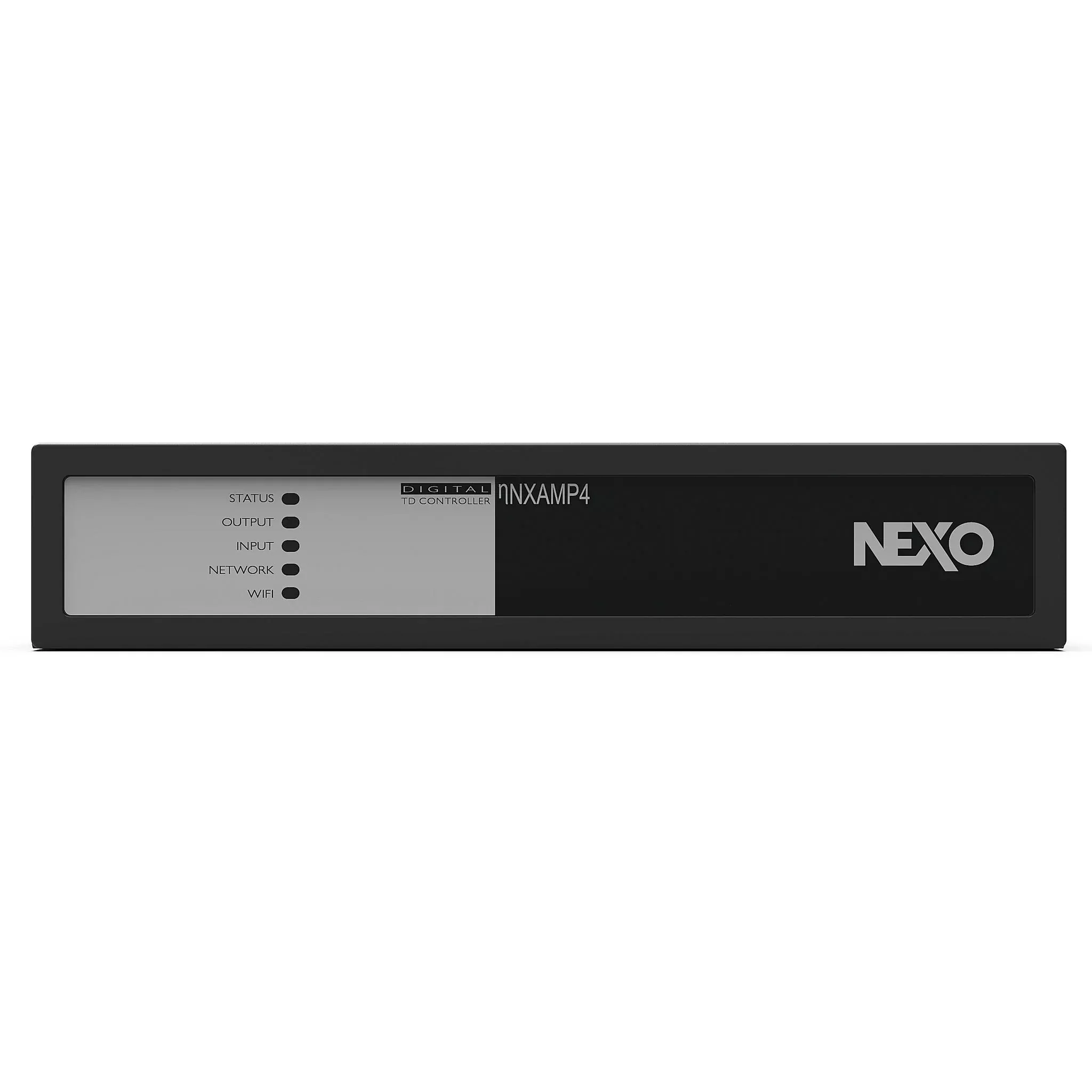

Front Panel LEDs
5x LEDs (WiFi / Network / Output /Input / Status)
Remote Control
Through 100 Mb Ethernet port orthrough integrated WiFi (Access Point or client)
Mains Voltage
Universal Power Supply with ActivePFC 100 – 240 Volts (50/60 Hz)
Power Consumption 1/8 max. 4Ohms
250 Watts
Dimensions and Weight
1U, 1/2 19″ Rack, 44.5 x 220x 296 mm (1.75 x 8.66 x 11.65”), 2.8 kg (6.2 lbs)
Electrical Safety Certification
IEC62368-1 2nd edition andUL62368-1
EMC Certification
FCC Part 15 Class B, CAN/CSA-CISPR22-10, EN55032/CISPR32, EN61000
Green Status
Compliant with ROHS & Reachdirective
Installation / Use Cases
- Use as a compact amplification and processing solution for NEXO ID and ePS Series sound systems.
- Suitable for retail, hospitality, houses of worship, and corporate settings, as listed in the product description.
- Use in smaller installations that benefit from built-in mixer and matrix functions.
- Use for systems requiring setup and remote control through an embedded web page accessible by Ethernet or Wi-Fi.
- Suitable for installations that need four amplifier channels in a compact 1U, 1/2 rack design.
- Use with Dante or AES67 input workflows only when using the nanoNXAMP4-D version.
Package Contents
- NEXO NANONXAMP4 Digital Powered Controller
