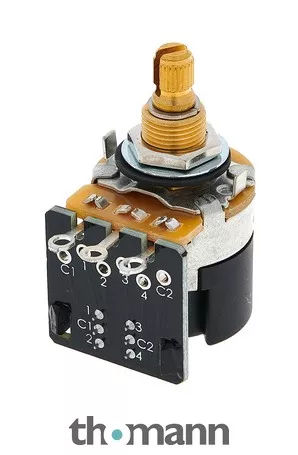

Potentiometer for Guitar and Bass
- Integrated push/pull switch
- Resistance curve: Logarithmic
- Manufactured in accordance with the high quality requirements as set out by CTS
- The “Vintage Taper” resistance curve of these potentiometers is between that of a standard logarithmic and that of a linear pot, enabling a more natural control response
- Resistance: 500 kOhm
- Finely grooved split shaft (24 splines for US guitars and pot buttons)
- Shaft diameter: 6 mm
- Thread length: 9.5 mm
- Thread diameter: 9.5 mm
- Housing diameter: 23.8 mm
- Includes a washer, a tooth lock washer, and a nut
- Available sinceNovember 2020
- Item number494193
- Sales Unit1 piece(s)
- Design Push Pull/Push Push
- Resistance Value 500 kOhms
- Characteristic Curve Vintage Taper
- Thread Length in mm 9,5 mm
- Tandem Poti No
- Push/Push Push/Pull
- Solderless No
- shaft type grooved
