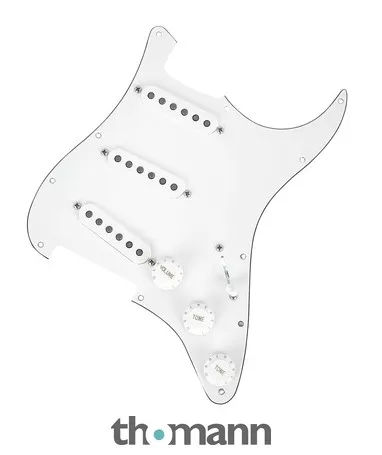

Pre-Wired Pickguard for ST-Style Electric Guitars
- No soldering required – simply attach and play
- 3-Ply standard 11 hole pickguard
- 3 Noiseless single coils (bridge, middle, & neck)
- Manufactured in compliance with the current Vintage single coil attributes
- Matched resonance frequency and inductance in order to reproduce the frequency response and feel of conventional single coils
- Output: Vintage & High
- Hot pickup on the bridge with more bass and mids for a good balance between the positions and better sustain
- Volume control with treble bleed
- Tone control for bridge pickup
- Tone control for mid and neck pickups
- 3 CTS 500k Custom split-shaft potentiometers (9.5 mm thread length)
- CRL 5-Way switch
- Switch positions: 1 – Bridge, 2 – Bridge & Middle, 3 – Middle, 4 – Middle & Neck, 5 – Neck
- Switchcraft mono input jack
- Vitamin “T” oil filled .047 uf capacitor
- Pre-tinned, cloth covered wire
- DC resistance (bridge): 11.6 kOhm
- DC resistance (middle): 5.9 kOhm
- DC resistance (neck): 5.9 kOhm
- Magnet material: AlNiCo 5
- Cap colour: White
- Pickguard colour: White
- Made in the USA
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2020
- Item number496112
- Sales Unit1 piece(s)
- Aktive Circuit Yes
- Wiring Prewired
- Pickup Output Vintage
- Cap Yes
- Colour White
- Position Bridge, Middle, Neck
- Stacked – hum free Yes
- Telecaster No
- Stratocaster Yes
- Other No
